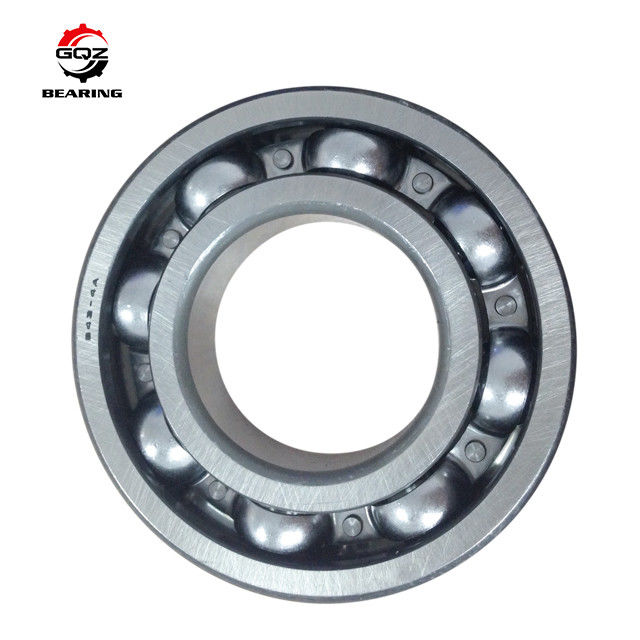

B53-5 Open Non-Standard Auto Transmission Deep Groove Bearing

B53-5 non-standard single-row open deep groove ball bearing, dimension 53mm inner bore × 72mm outer diameter × 10mm width, small-size special bearing for automatic transmission auxiliary shafts. Open design without rubber seals, equipped with stamped low-carbon steel cage and standard C0 internal clearance. It bears radial load and minor bidirectional axial load, runs low-noise and stable under long-term high-speed shifting vibration inside gearbox housing. Produced with fully quenched high-purity GCr15 chrome bearing steel and tight dimensional tolerance control, fully interchangeable with original OEM B53-5. Complete formal quotation will be provided within 24 hours upon inquiry.

• Open structure allows full circulation of gearbox oil, excellent heat dissipation, eliminates rubber seal aging, swelling and leakage risks under long-time high-temperature oil immersion
• Superfinished deep groove raceway reduces rolling friction coefficient, maintains steady continuous rotation under frequent gear shift impact
• Uniform high-hardness GCr15 steel inner and outer rings feature outstanding wear resistance and anti-fatigue performance, extend transmission service life effectively
• OEM unified overall dimension, direct replacement without modifying gearbox housing, small shaft and matching accessories
• Compact lightweight stamped steel cage lowers rotation inertia, fits high-speed continuous working conditions of small transmission auxiliary shafts
• Standard P0 precision grade, P6/C3 clearance customizable to meet auto OEM assembly matching standards
• Stable mass production supply, cost-effective for aftermarket repair and bulk wholesale orders

Passenger car automatic gearbox small auxiliary shafts, CVT transmission control shafts, light commercial vehicle mini reducers, small industrial transmission assemblies.

Dimension drawings and technical spec sheets can be provided on request.

25+ years professional manufacturer of B series non-standard automotive gearbox bearings. All finished bearings pass high-speed continuous rotation test, shock load test and long-cycle fatigue durability test before delivery. Support customized anti-rust surface coating and special high-temperature anti-wear gearbox lubricant filling service. One-on-one professional installation technical guidance and formal detailed quotation within 24h for all RFQs. Stable mass production capacity supports long-term bulk aftermarket and OEM orders, factory direct selling price, stable consistent quality and punctual batch delivery.

• Raw GCr15 steel hardness & chemical composition incoming inspection
• High-precision raceway superfinishing roughness detection
• Open bearing gear oil circulation high-temperature aging durability test
• Continuous vibration load rotation fatigue life cycle test
• Full dimension tolerance sorting inspection
• 100% visual appearance marking check before packaging
• Random sampling high-speed performance test before shipment

All B53-5 bearings pass multi-process strict factory inspection.

Q1: Difference between open B53-5 and rubber sealed bearings?

A1: Open structure has no rubber sealing parts, relies on internal gearbox circulating oil for lubrication and heat dissipation, installed inside transmission housing; rubber sealed bearings are used for external exposed dusty shafts with grease lubrication.

Q2: Can B53-5 replace original OEM bearings directly?

A2: Yes, inner bore, outer diameter and width dimensions are fully consistent, no modification to gearbox components required during replacement.

Q3: Applicable lubrication mode?

A3: Designed for gearbox circulating transmission oil lubrication; fill high-speed anti-wear gear grease if used separately for independent assembly.
