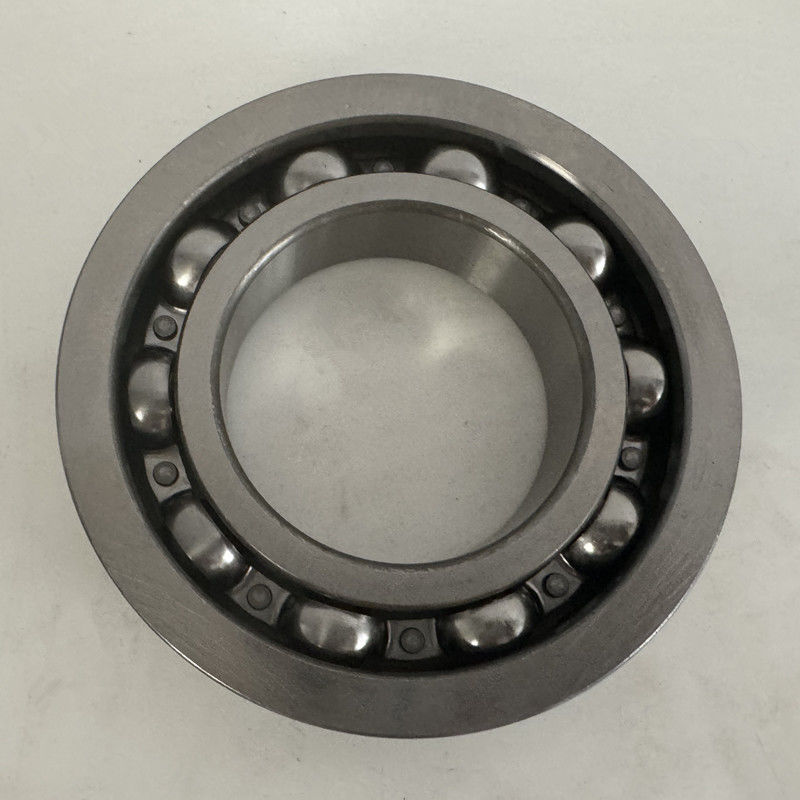

X-1353248.ND Non-Standard Auto Gearbox Precision Deep Groove Bearing

1. Product Overview

X-1353248.ND single-row non-standard thin-wall deep groove ball bearing. Suffix ND represents upgraded precision tolerance plus reinforced anti-deformation internal structure. Fully interchangeable with NSK X-1353248.ND, specially designed for miniature hydraulic valve shafts inside Asian passenger car automatic transmissions.
Available versions: Open, ZZ metal shield, 2RS double rubber seal. Adopts stamped low-carbon steel cage, standard C0 clearance as default, C3 clearance customizable. It bears light radial load and slight bidirectional axial load, running ultra-quiet and stable under long-term high-speed rotation and high-temperature circulating gear oil environment inside transmission housing. Produced with fully quenched GCr15 chrome bearing steel and strict micron-level dimensional tolerance, supports direct OEM plug-and-play replacement without modifying gearbox housing or micro shaft. Complete formal quotation available within 24 hours upon inquiry.

2. Key Advantages

• Open through-hole design enables full gear oil circulation, continuous efficient heat dissipation, eliminates seal aging, swelling and oil leakage risks
• Superfinished ultra-smooth raceway cuts friction torque, less heat accumulation under long continuous high-speed operation
• ND upgraded precision structure with smaller dimensional deviation, stronger anti-deformation performance under frequent tiny torque fluctuation
• High-hardness integrated inner and outer rings deliver excellent wear resistance and anti-fatigue performance, extend overall gearbox service life
• Unified OEM installation dimensions, no structural modification required during shaft replacement
• Ultra-light stamped steel cage minimizes rotation inertia, perfectly matches long-term steady high-speed operation of miniature transmission control components
• Standard P0 precision grade, P6 upgraded precision and C3 clearance customizable; stable mass production with sufficient spot stock, high cost performance for aftermarket repair and bulk OEM supporting orders

3. Applications

Asian passenger car automatic gearbox hydraulic control valve micro shafts, transmission auxiliary small rotating shafts, light commercial vehicle precision mini reducers, small agricultural machinery high-speed fine transmission moving parts.

4. Technical Specifications

Model: X-1353248.ND Non-Standard Precision Deep Groove Ball Bearing
Seal Options: Open / ZZ metal shield / 2RS double rubber seal
Cage: Stamped low carbon steel cage
Internal Clearance: C0 standard, C3 optional
Material: GCr15 chrome bearing steel
Working Temperature Range: -20℃ ~ +130℃
Precision Grade: P0 standard, P6 customizable
Cross Reference: X-1353248.ND, NSK X-1353248.ND
Dimension drawings and full technical spec sheets can be provided on request.

5. Why Choose GQZ Bearing

25+ years professional manufacturer of non-standard auto transmission precision miniature bearings. All finished bearings pass high-speed rotation test, low-noise vibration test and long-cycle fatigue durability test before delivery. Custom anti-rust coating and high-temperature anti-wear gear grease filling service supported. One-on-one professional gearbox installation guidance and fast formal quotation for all RFQs. Stable bulk supply capacity, factory direct selling price, consistent stable quality and punctual batch delivery.

6. Quality Assurance

• Raw GCr15 steel hardness & chemical composition incoming inspection
• Deep groove raceway superfinishing roughness detection
• High-temperature gear oil circulation aging durability test
• Low noise vibration fatigue rotation cycle test
• Full dimension tolerance sorting inspection
• 100% visual marking appearance check before packaging
• Random high-speed performance sampling test before shipment
• All X-1353248.ND bearings pass multi-step strict factory inspection.

7. CTA

Inquire bulk X-1353248.ND gearbox precision miniature bearings to get full support:

1. Complete formal detailed quotation within 24 hours
2. Standard dimension drawings & micro shaft press-fit installation guide
3. Custom anti-rust surface treatment & dedicated high-temperature gear lubricant filling service
4. Exclusive long-term factory wholesale price without intermediate markup

Large-volume OEM cooperation is warmly welcomed.

8. FAQ

Q1: What do suffix N and D stand for?
A1: N = upgraded precision tolerance grade for tighter fit; D = reinforced internal structure with stronger anti-deformation capacity under frequent variable light load.
Q2: Difference between open, ZZ and 2RS types?
A2: Open for internal gearbox circulating oil lubrication; ZZ metal shield for semi-sealed internal assembly with light dust; 2RS double rubber seal for exposed external shafts, dustproof & waterproof, pre-filled long-life anti-wear grease.
Q3: Can X-1353248.ND replace original NSK bearing directly?
A3: Yes, all mounting dimensions and internal structure are fully consistent, no modification to gearbox components needed during assembly.
