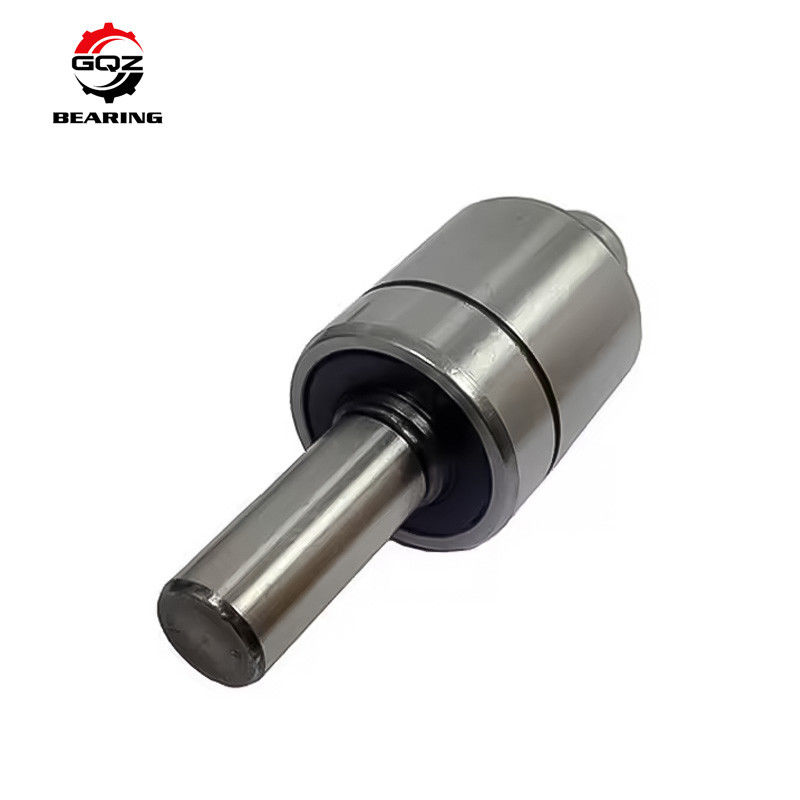

RWF42-12RCG30 Non-Standard Auto Engine Ball-Roller Water Pump Shaft Bearing

RWF42-12RCG30 is a single-piece integrated ball-roller composite water pump bearing. Code parsing:

• RWF: Ball-Roller combined structure, front row deep groove ball + rear row cylindrical roller, higher radial load capacity than double-ball BWF type
• 42: Outer ring outer diameter reference size; 12: Standard shaft step matching dimension
• RC: Reinforced corrosion-resistant internal rolling element assembly
• G: Enhanced high-temperature grease matching structure
• 30: C3 enlarged internal clearance, reserved thermal expansion gap for long-time high-temperature engine working condition

Fully interchangeable with NSK original RWF42-12RCG30, exclusively matched for water pump rotating shafts of passenger car gasoline engines. Integral one-piece outer ring with dual-end integrated rubber sealing structure, stamped high-strength steel cage as standard, solid brass cage customizable on demand; factory preset C3 clearance as marked on model. It bears heavy radial load and moderate bidirectional axial load, runs stable low-vibration under long-term high-speed rotation and alternating hot-cold coolant circulation environment inside engine water pump cavity. Manufactured with fully quenched high-purity GCr15 chrome bearing steel and micron-level strict dimensional tolerance, direct plug-and-play replacement without modifying water pump housing or spindle. Complete formal quotation can be provided within 24 hours upon inquiry.

1. RWF ball-roller composite design: Rear roller row greatly improves radial load bearing capacity, effectively resists offset belt tension load of water pump fan
2. Dual-end integrated multi-lip rubber sealing structure, anti-coolant leakage, anti-dust and anti-impurity intrusion, avoids premature bearing failure caused by coolant mixing
3. RC reinforced rolling assembly improves wear resistance and impact fatigue performance, adapts to frequent engine start-stop alternating load
4. G high-temperature optimized internal cavity structure, compatible with long-life high-temperature anti-rust water pump grease, no grease volatilization under sustained engine high temperature
5. Standard C3 large clearance design, eliminates bearing jamming risk after thermal expansion under continuous engine high temperature
6. Integral one-piece outer ring overall rigidity, no separation or deformation during press-fit installation
7. Unified OEM spindle installation dimensions, no structural modification required during water pump maintenance replacement
8. Standard P0 precision grade, P6 upgraded precision optional; stable mass production with sufficient spot stock, high cost performance for aftermarket repair and bulk OEM engine supporting orders

Cooling system water pump spindle assembly of Asian passenger car gasoline engines, light commercial vehicle engine water pump rotating parts, small construction machinery engine cooling pump heavy-load rotary shafts.

Dimension drawings and full technical spec sheets available on request.

25+ years professional manufacturer of RWF/BWF series auto engine water pump composite bearings. All finished bearings pass continuous high-speed rotation test, coolant circulation aging test and alternating load fatigue durability test before delivery. Custom anti-rust surface coating and dedicated high-temperature water pump grease filling service supported. One-on-one professional water pump assembly installation technical guidance and fast formal quotation for all RFQs. Stable bulk production capacity supports long-term large aftermarket and OEM engine supporting orders, factory direct sales price, consistent stable quality and punctual batch delivery.

• Raw GCr15 steel hardness & chemical composition incoming inspection
• Ball and roller raceway superfinishing roughness detection
• Engine coolant long-cycle circulation anti-leakage aging durability test
• Alternating radial-axial load fatigue rotation cycle test
• Full dimension tolerance sorting inspection
• 100% visual appearance and marking check before packaging
• Random high-speed & high-temperature performance sampling test before shipment

All RWF42-12RCG30 bearings pass multi-process strict factory inspection.

Inquire bulk RWF42-12RCG30 heavy-duty ball-roller water pump bearings to get full support:

1. Complete formal detailed quotation within 24 hours
2. Standard dimension drawings & water pump spindle press-fit installation operation guide
3. Custom anti-rust surface treatment & dedicated high-temperature anti-corrosion water pump grease filling service
4. Exclusive long-term bulk factory wholesale price without intermediate markup

Large-volume OEM engine supporting cooperation is warmly welcomed.

Q1: What does each suffix of RWF42-12RCG30 mean?

A1:

• RWF: Ball-Roller composite integrated water pump bearing structure
• RC: Reinforced anti-corrosion rolling element assembly
• G: Internal cavity optimized for high-temperature special grease
• 30: C3 enlarged internal clearance for engine high-temperature working condition

Q2: What is the advantage of RWF ball-roller structure compared with ordinary double-ball BWF bearing?

A2: The rear cylindrical roller row can bear much larger radial load, suitable for water pumps with fan offset tension, less prone to early wear and noise.

Q3: Can RWF42-12RCG30 directly replace original NSK bearing?

A3: Yes, all spindle mounting dimensions, integral outer ring structure and C3 clearance are fully consistent, no modification to water pump components needed during assembly.
