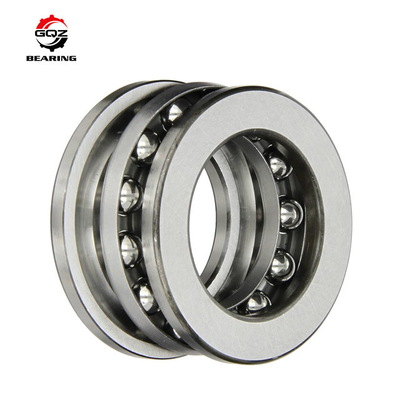

Low Vibration 51312 Separable Thrust Deep Groove Ball Bearing 60x110x35mm
| BearingModel | 51312 |
| Material | Bearing Steel GCr15 ; Others |
| Type | Thrust Deep Groove Ball Bearing |
| d (mm) | 60 |
| D (mm) | 110 |
| B (mm) | 35 |
| Mass (KG) | 1.36 |
| Precision |
P0, P6, P5 ,P4 ,P2 |
We currently have 1950.pcs of 51312 Single Direction Thrust Deep Groove Ball Bearing In Stock.If you are in need of 51312 Bearing ,just feel free to contact us.We can assure you the best quality; the most competitive prices; the shortest delivery time and the highest quality service.
For more details of 51312 ,please feel free to contact me by WhatsApp or SKYPE or E-mail.
Besides,we also have Various Kinds of other Bearings & Guide Blocks In Stock,just click the "
Contact Now "button for Price & other Information.
| Bearing Model |
d (mm) |
D (mm) |
B (mm) |
Bearing Model |
d (mm) |
D (mm) |
B (mm) |
Bearing Model |
d (mm) |
D (mm) |
B (mm) |
| 51100 | 10 | 24 | 9 | 51200 | 10 | 26 | 11 | 51405 | 25 | 60 | 24 |
| 51101 | 12 | 26 | 9 | 51201 | 12 | 28 | 11 | 51406 | 30 | 70 | 28 |
| 51102 | 15 | 28 | 9 | 51202 | 15 | 32 | 12 | 51407 | 35 | 80 | 32 |
| 51103 | 17 | 30 | 9 | 51203 | 17 | 35 | 12 | 51408 | 40 | 90 | 36 |
| 51104 | 20 | 35 | 10 | 51204 | 20 | 40 | 14 | 51409 | 45 | 100 | 39 |
| 51105 | 25 | 42 | 11 | 51205 | 25 | 47 | 15 | 51410 | 50 | 110 | 43 |
| 51106 | 30 | 47 | 11 | 51206 | 30 | 52 | 16 | 51411 | 55 | 120 | 48 |
| 51107 | 35 | 52 | 12 | 51207 | 35 | 62 | 18 | 51412-MP | 60 | 130 | 51 |
| 51108 | 40 | 60 | 13 | 51208 | 40 | 68 | 19 | 51413-MP | 65 | 140 | 56 |
| 51109 | 45 | 65 | 14 | 51209 | 45 | 73 | 20 | 51414-MP | 70 | 150 | 60 |
| 51110 | 50 | 70 | 14 | 51210 | 50 | 78 | 22 | 51415-MP | 75 | 160 | 65 |
| 51111 | 55 | 78 | 16 | 51211 | 55 | 90 | 25 | 51416-MP | 80 | 170 | 68 |
| 51112 | 60 | 85 | 17 | 51212 | 60 | 95 | 26 | 51417-MP | 85 | 180 | 72 |
| 51113 | 65 | 90 | 18 | 51213 | 65 | 100 | 27 | 51418-MP | 90 | 190 | 77 |
| 51114 | 70 | 95 | 18 | 51214 | 70 | 105 | 27 | 51420-MP | 100 | 210 | 85 |
| 51115 | 75 | 100 | 19 | 51215 | 75 | 110 | 27 | 51422-MP | 110 | 230 | 95 |
| 51116 | 80 | 105 | 19 | 51216 | 80 | 115 | 28 | 51424-MP | 120 | 250 | 102 |
| 51117 | 85 | 110 | 19 | 51217 | 85 | 125 | 31 | 51305 | 25 | 52 | 18 |
| 51118 | 90 | 120 | 22 | 51218 | 90 | 135 | 35 | 51306 | 30 | 60 | 21 |
| 51120 | 100 | 135 | 25 | 51220 | 100 | 150 | 38 | 51307 | 35 | 68 | 24 |
| 51122 | 110 | 145 | 25 | 51222 | 110 | 160 | 38 | 51308 | 40 | 78 | 26 |
| 51124 | 120 | 155 | 25 | 51224 | 120 | 170 | 39 | 51309 | 45 | 85 | 28 |
| 51126 | 130 | 170 | 30 | 51226 | 130 | 190 | 45 | 51310 | 50 | 95 | 31 |
| 51128 | 140 | 180 | 31 | 51228 | 140 | 200 | 46 | 51311 | 55 | 105 | 35 |
| 51130-MP | 150 | 190 | 31 | 51230-MP | 150 | 215 | 50 | 51312 | 60 | 110 | 35 |
| 51132-MP | 160 | 200 | 31 | 51232-MP | 160 | 225 | 51 | 51313 | 65 | 115 | 36 |
| 51134-MP | 170 | 215 | 34 | 51234-MP | 170 | 240 | 55 | 51314 | 70 | 125 | 40 |
| 51136-MP | 180 | 225 | 34 | 51236-MP | 180 | 250 | 56 | 51315 | 75 | 135 | 44 |
| 51138-MP | 190 | 240 | 37 | 51238-MP | 190 | 270 | 62 | 51316 | 80 | 140 | 44 |
| 51140-MP | 200 | 250 | 37 | 51240-MP | 200 | 280 | 62 | 51317 | 85 | 150 | 49 |
| 51144-MP | 220 | 270 | 37 | 51244-MP | 220 | 300 | 63 | 51318 | 90 | 155 | 50 |
| 51148-MP | 240 | 300 | 45 | 51248-MP | 240 | 340 | 78 | 51320 | 100 | 170 | 55 |
| 51152-MP | 260 | 320 | 45 | 51252-MP | 260 | 360 | 79 | 51322-MP | 110 | 190 | 63 |
| 51156-MP | 280 | 350 | 53 | 51256-MP | 280 | 380 | 80 | 51324-MP | 120 | 210 | 70 |
| 51160-MP | 300 | 380 | 62 | 51260-MP | 300 | 420 | 95 | 51326-MP | 130 | 225 | 75 |
| 51164-MP | 320 | 400 | 63 | 51264-MP | 320 | 440 | 95 | 51328-MP | 140 | 240 | 80 |
| 51168-MP | 340 | 420 | 64 | 51268-MP | 340 | 460 | 96 | 51330-MP | 150 | 250 | 80 |
| 51172-MP | 360 | 440 | 65 | 51272-MP | 360 | 500 | 110 | 51332-MP | 160 | 270 | 87 |
| Suffix | Description |
| MP | Solid brass window cage, ball-guided |
| P5 | Higher accuracy totolerance class P5 |
| P6 | Higher accuracy totolerance class P6 |
Introduction
Axial deep groove ball bearings comprise shaft locating washers, housing locating washers and ball and cage assemblies. The bearings are not self-retaining; the ball and cage assembly and bearing washers can therefore be fitted separately.
Single direction axial deep groove ball bearings can support axial forces in one direction.Bearings of series 511, 512, 513 and 514 have a flat housing locating washer. They do not permit angular misalignment or skewing between the shaft and housing.
Operating Temperature
Axial deep groove ball bearings can be used at operating temperatures from –30 °C to +150 °C, restricted by the lubricant.
