NU2252EM C3 Cylindrial Roller Bearing , OD 480mm Anti Friction Bearings

NU2252EM C3 Cylindrial Roller Bearing , OD 480mm Anti Friction Bearings

1. Specification:

NSK cylindrical roller bearings is widely used in high precision instrument,equipment,

CNC machine and so on.And NSK products is one of the most famous bearing enterprise

which sells bearings in high quality and long use life.

2. Feature:

(1) Single row

(2) C3 clearance

(3) chrome steel material
(4) Brass cage

3. Type of  cylindrical roller bearing

a. single row cylindrical roller bearings, cage, mainly of the NU,NJ,NUP, and N designs.

b. double row cylindrical roller bearings, caged, mainly of the NNU and NN designs.

c. multi-row cylindrical roller bearings, caged.

d. single row full complement cylindrical roller bearings, mainly of the NCF and NJG designs.

e. double row full complement cylindrical roller bearings, mainly of the NNF design.

f.  multi-row full complement cylindrical roller bearings, with four rollers.

4. Series of  cylindrical roller bearing

1. Types NU, N, NNU, and NN are suitable as free-end bearings.
2. Types NJ and NF can sustain limited axial loads in one direction.
3. Types NH and NUP can be used as fixed-end bearings.
4. NH-type cylindrical roller bearings consist of the NJ-type cylindrical roller bearings and HJ-type L-shaped thrust collars.
5. The inner ring loose rib of an NUPtype cylindrical roller bearing should be mounted so that the marked side is on the outside.
6. The RNU cylindrical roller bearing has an outer ring with double capped edges but does not come with inner ring. Such bearing is the NU cylindrical roller bearings without the inner ring
7. The RN cylindrical roller bearing has an inner ring with double capped edge but does not come with outer ring

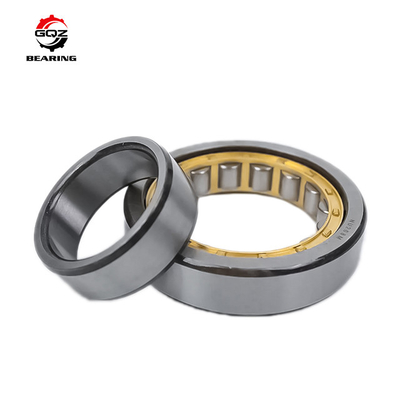

5. Bearing Picture:
