7322 Headstock Gear Angular Contact Ball Bearing 3600 r / min Limiting Speed

1.pcs
MOQ
USD0.1-1000/PC
Price
7322 Headstock Gear Angular Contact Ball Bearing 3600 r / min Limiting Speed
Features Gallery Product Description Request A Quote
Features
Specifications
Structure: Angular Contact
Type: Ball
Size: 110*240*50mm
Material: Chrome Steel Gcr15
Clearance: C0,C2,C3,C4
Number Of Row: Single Row
Contact Angular: Suffix A=15°, AC=25°, B=40°
Tolerance: ABEC-1,ABEC-3,ABEC-5
Limiting Speed: 3600 R/min
Weight: 10.7kg
High Light:

Metric Ball Bearings

,

Steel Cage Bearing

Basic Infomation
Place of Origin: China
Brand Name: OEM OR GQZ
Certification: ISO9001
Model Number: 7322
Payment & Shipping Terms
Packaging Details: Standard Carton Box / Wooden Pallet Case
Delivery Time: 3 ~ 5 working days
Payment Terms: T/T, Western Union,Paypal,
Supply Ability: 100000pcs/Week
Product Description

7322 Headstock Gear Angular Contact Ball Bearing 3600 r / min Limiting Speed





Technical Specifications:



Basic load ratings
dynamic Ca 240 kN
static C0 245 kN
Designation
  * SKF Explorer bearing 7322 BECCM
Fatigue load limit
  Pu 7,8 kN
Mass
    10,7 kg
Principal dimensions
  d 110 mm
  D 240 mm
  B 50 mm
Speed ratings
Limiting speed   3600 r/min
Reference speed   3600 r/min



More details about bearing 7322:



Product Single Row Hign Speed Angular Contact Ball Bearing
Precision Rating ABEC1,ABEC3,ABEC5
Clearance C0,C2,C3,C4,C5 is available
Sealed Cap  Rubber or Metal
Paypal  Acceptable
OEM Accept
Vibration Level code V1,V2.V3
Material Gcr15
Weight 10.7 KG
Hign &&MM
Bore Size 110MM
Outside Diameter 240MM
Number of Row Single
Regular export packing Plastic drum+White box+ carton
  industrial packaging or as your requiremen.
MOQ 1 pcs
Delivery Time 3-7 days after receiving your payment
Payment Terms L/C,T/T,Western Union,MoneyGram,Paypal
Port of shippment by sea Shanghai,guangzhou,qingdao
Place of Origin Anhui, China
Samples Available



Product Description:



7322 Headstock Gear Angular Contact Ball Bearing 3600 r / min Limiting Speed 0

Product more information:



       1) Low friction
       2) Minimum lubrication
       3) Wear resistant
       4) Running in not required
       5) Requires little attention
       6) Dimensions relatively small
       7) No scraping required to fit shaft
       8) Easy replacement



Professional production team, production line, experienced technical experts who engaged in this industry for more than 20 years. We have the professional production line for this bearings:

1. Our bearings are made of Chrome Steel, it have better corrosion resistance, hardenability and toughness.

2. Double Seal: Adopt nature rubber, make it hard for dirt and grime to get in, running more quietly.

3. Cage: Also made of Chrome Steel, it is more durable than Carbon Steel bearings.

4. Capacity: 85000 PCS/MONTH.



Products pictures:

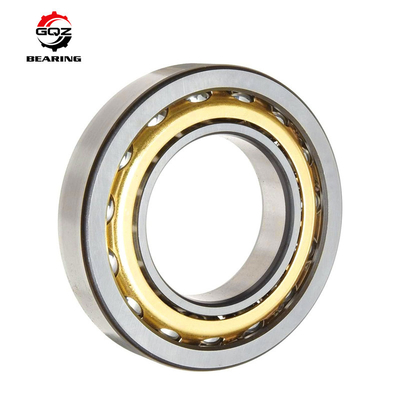

7322 Headstock Gear Angular Contact Ball Bearing 3600 r / min Limiting Speed 1

7322 Headstock Gear Angular Contact Ball Bearing 3600 r / min Limiting Speed 2





Angular Contact Ball Bearing:



1. Angular contact bearings are single row ball bearings but designed in such a way that the central line of the contact between balls and raceways is at an angle. This angle is called a contact angle and as per the manufactured design these vary between 15’, 25’,45’.



2. In this type of bearings contact angles between balls and tracks have been swung to an angle between 20’ to 40’ to the radial plane.



3. This bearing is most used in the applications with high rotational speed, high precision and small axial load such as main shaft of motor of airplane,main shaft of machine tool and other main shafts of high speed and precision machinery. It is also used on high frequency motor, gas turbine, oil prump, air compressor, printing machines etc. It is a most widely used bearing in machinery industry.



Our Bearing Range:



1. Deep groove ball bearing

2. Thrust ball bearing

3. Angular contact ball bearing

4. Self-Aligning ball bearing

5. Taper roller bearing

6. Cylindrical roller bearing

7. Spherical rolller bearing

8. Bearing cage

9. Liner ball bearing. etc...
