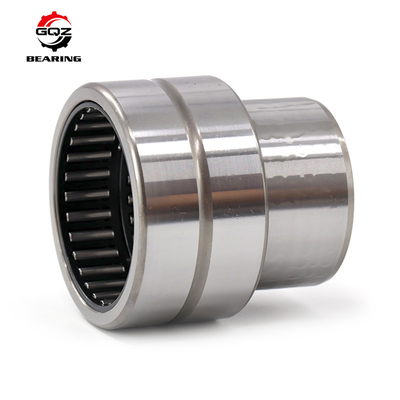

NKIA5904 Combined Needle Roller Bearing , Angular Contact Ball Bearing 20x37x23mm

1.PCS
MOQ
NKIA5904 Combined Needle Roller Bearing , Angular Contact Ball Bearing 20x37x23mm
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Bearing Steel
Type: Needle Roller / Angular Contact Bearing
Size: 20x37x23mm
Mass: 0.103KG
Stock Quantity: 1800.pcs
Operating Temper: -25°C ~ +120°C
High Light:

Cam Follower Bearing

,

Metric Needle Bearings

Basic Infomation
Place of Origin: GERMANY
Brand Name: Optional
Certification: ISO9000/ISO14001/QS9000/TS16949
Model Number: NKIA5904
Payment & Shipping Terms
Packaging Details: Standard Carton Box / Wooden Pallet Case.
Delivery Time: Within 3 working days
Payment Terms: T/T, Western Union, Paypal
Product Description

NKIA5904 Combined Needle Roller Bearing , Angular Contact Ball Bearing 20x37x23mm





Bearing Model NKIA5904
Type Needle Roller/Angular Contact Ball Bearing
d (mm)  20
D (mm) 37
B (mm) 23
Mass (KG) 0.103
Deliver Time

Within 3 working Days.



We currently have 1800.pcs of NKIA5904 Single Direction Needle Roller / Angular Contact Ball Bearing In Stock. If you are in need of NKIA5904 Needle Bearing ,just feel free to contact us.We can assure you the best quality; the most competitive prices; the shortest delivery time and the highest quality service.



For more details of NKIA5904 ,please feel free to contact me by WhatsApp or SKYPE or E-mail.



Besides,we also have Various Kinds of other Bearings & Guide Blocks In Stock,just click the " Contact Now "button for Price & other Information.



Bearing

Model

d

(mm)

D

(mm)

B

(mm)

Bearing

Model

d

(mm)

D

(mm)

B

(mm)

NKIA5901 12 24 16 NKIB5901 12 24 17,5
NKIA5902 15 28 18 NKIB5902 15 28 20
NKIA5903 17 30 18 NKIB5903 17 30 20
NKIA5904 20 37 23 NKIB5904 20 37 25
NKIA59/22 22 39 23 NKIB59/22 22 39 25
NKIA5905 25 42 23 NKIB5905 25 42 25
NKIA5906 30 47 23 NKIB5906 30 47 25
NKIA5907 35 55 27 NKIB5907 35 55 30
NKIA5908 40 62 30 NKIB5908 40 62 34
NKIA5909 45 68 30 NKIB5909 45 68 34
NKIA5910 50 72 30 NKIB5910 50 72 34
NKIA5911 55 80 34 NKIB5911 55 80 38
NKIA5912 60 85 34 NKIB5912 60 85 38
NKIA5913 65 90 34 NKIB5913 65 90 38
NKIA5914 70 100 40 NKIB5914 70 100 45



Bearing Model

d

(mm)

D

(mm)

B

(mm)

Bearing

Model

d

(mm)

D

(mm)

B

(mm)

RPNA15/28 15 28 12 PNA12/28 12 28 12
RPNA18/32 18 32 16 PNA15/32 15 32 16
RPNA20/35 20 35 16 PNA17/35 17 35 16
RPNA25/42 25 42 20 PNA20/42 20 42 20
RPNA28/44 28 44 20 PNA22/44 22 44 20
RPNA30/47 30 47 20 PNA25/47 25 47 20
RPNA35/52 35 52 20 PNA30/52 30 52 20
RPNA40/55 40 55 20 PNA35/55 35 55 20
RPNA45/62 45 62 20 PNA40/62 40 62 20

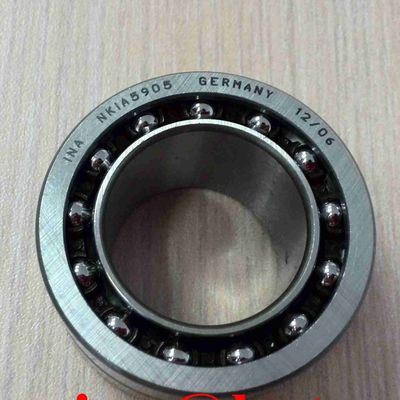

Combined bearings NKIA and NKIB have an inner ring





NKIB has one narrow inner ring and one wide inner ring. The axial bearing component has a plastic ball cage. At the point where the inner rings join, there is a shoulder on both sides for guidance of the ball and cage assembly.



Lubrication :

NKIA and NKIB can be lubricated with grease or oil. For lubrication, the outer ring has a lubrication groove and lubrication hole.


Operating temperature :

They are suitable for operating temperatures from –20 °C to +120 °C.

Cages :

The radial cages are made from sheet steel or plastic. Bearings with a plastic cage have the suffix TV.
