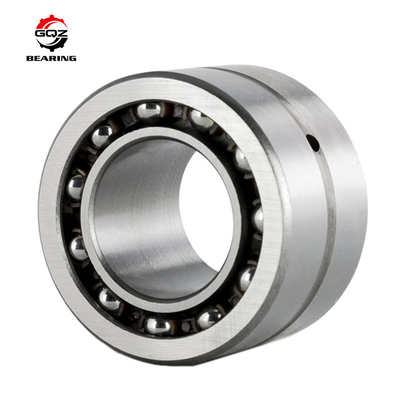

Plastic Cage NKIA5910 Needle Roller Bearings Thrust Angular Contact Bearing 50x72x30mm
| Bearing Model | NKIA5910 |
| Type | Needle Roller/Angular Contact Ball Bearing |
| d (mm) | 50 |
| D (mm) | 72 |
| B (mm) | 30 |
| Mass (KG) | 0.38 |
| Deliver Time |
Within 3 working Days. |
We currently have 1850.pcs of NKIA5910 Single Direction Needle Roller / Angular Contact Ball Bearing In Stock. If you are in need of NKIA5910 Needle Bearing ,just feel free to contact us.We can assure you the best quality; the most competitive prices; the shortest delivery time and the highest quality service.
For more details of NKIA5910 ,please feel free to contact me by WhatsApp or SKYPE or E-mail.
Besides,we also have Various Kinds of other Bearings & Guide Blocks In Stock,just click the " Contact Now "button for Price & other Information.
|
Bearing Model |
d (mm) |
D (mm) |
B (mm) |
Bearing Model |
d (mm) |
D (mm) |
B (mm) |
| NKIA5901 | 12 | 24 | 16 | NKIB5901 | 12 | 24 | 17,5 |
| NKIA5902 | 15 | 28 | 18 | NKIB5902 | 15 | 28 | 20 |
| NKIA5903 | 17 | 30 | 18 | NKIB5903 | 17 | 30 | 20 |
| NKIA5904 | 20 | 37 | 23 | NKIB5904 | 20 | 37 | 25 |
| NKIA59/22 | 22 | 39 | 23 | NKIB59/22 | 22 | 39 | 25 |
| NKIA5905 | 25 | 42 | 23 | NKIB5905 | 25 | 42 | 25 |
| NKIA5906 | 30 | 47 | 23 | NKIB5906 | 30 | 47 | 25 |
| NKIA5907 | 35 | 55 | 27 | NKIB5907 | 35 | 55 | 30 |
| NKIA5908 | 40 | 62 | 30 | NKIB5908 | 40 | 62 | 34 |
| NKIA5909 | 45 | 68 | 30 | NKIB5909 | 45 | 68 | 34 |
| NKIA5910 | 50 | 72 | 30 | NKIB5910 | 50 | 72 | 34 |
| NKIA5911 | 55 | 80 | 34 | NKIB5911 | 55 | 80 | 38 |
| NKIA5912 | 60 | 85 | 34 | NKIB5912 | 60 | 85 | 38 |
| NKIA5913 | 65 | 90 | 34 | NKIB5913 | 65 | 90 | 38 |
| NKIA5914 | 70 | 100 | 40 | NKIB5914 | 70 | 100 | 45 |
| Bearing Model |
d (mm) |
D (mm) |
B (mm) |
Bearing Model |
d (mm) |
D (mm) |
B (mm) |
| RPNA15/28 | 15 | 28 | 12 | PNA12/28 | 12 | 28 | 12 |
| RPNA18/32 | 18 | 32 | 16 | PNA15/32 | 15 | 32 | 16 |
| RPNA20/35 | 20 | 35 | 16 | PNA17/35 | 17 | 35 | 16 |
| RPNA25/42 | 25 | 42 | 20 | PNA20/42 | 20 | 42 | 20 |
| RPNA28/44 | 28 | 44 | 20 | PNA22/44 | 22 | 44 | 20 |
| RPNA30/47 | 30 | 47 | 20 | PNA25/47 | 25 | 47 | 20 |
| RPNA35/52 | 35 | 52 | 20 | PNA30/52 | 30 | 52 | 20 |
| RPNA40/55 | 40 | 55 | 20 | PNA35/55 | 35 | 55 | 20 |
| RPNA45/62 | 45 | 62 | 20 | PNA40/62 | 40 | 62 | 20 |
Combined bearings NKIA and NKIB have an inner ring
NKIB has one narrow inner ring and one wide inner ring. The axial bearing component has a plastic ball cage. At the point where the inner rings join, there is a shoulder on both sides for guidance of the ball and cage assembly.
Lubrication :
NKIA and NKIB can be lubricated with grease or oil. For lubrication, the outer ring has a lubrication groove and lubrication hole.
Operating temperature :
They are suitable for operating temperatures from –20 °C to +120 °C.
Cages :
The radial cages are made from sheet steel or plastic. Bearings with a plastic cage have the suffix TV.
FAQ
What is the application of combined needle roller bearings?
Combined needle roller bearings are used for two purposes; for applications requiring high accuracy and combined transmission of large radial and axial forces. Combined type needle roller bearings are combinations of a radial bearing and a thrust bearing.
What is combined needle roller bearings?
Combined needle roller bearings consist of a radial needle roller bearing combined with a thrust bearing. They can accommodate both radial and axial loads. They are particularly suitable for applications where other types of locating bearing arrangements occupy too much space, or where the axial loads are too heavy, the speeds are too high, or the lubricant is inadequate for arrangements with simple thrust washers.
What is a cam roller bearing?
A cam follower bearing is a roller or needle bearing that is specifically designed to follow cams or tracks. These bearings are used in linear motion systems including transfer lines, conveyor systems, and other industrial machinery.
