29413-E1 29413-E Single Row Thrust Spherical Roller Bearing 65x140x45mm
| BearingModel | 29413-E1 29413-E |
| Material | Bearing Steel GCr15 ; Others |
| Type | Thrust Spherical Roller Bearing |
| d (mm) | 65 |
| D (mm) | 140 |
| B (mm) | 45 |
| Mass (KG) | 3.10 |
| Precision |
P0, P6, P5 ,P4 ,P2 |
We currently have 180.pcs of 29413-E1 29413-E Single Row Thrust Spherical Roller Bearing In Stock. If you are in need of 29413-E1 29413-E Bearing ,just feel free to contact us.We can assure you the best quality; the most competitive prices; the shortest delivery time and the highest quality service.
For more details of 29413-E1 29413-E ,please feel free to contact me by WhatsApp or SKYPE or E-mail.
Besides,we also have Various Kinds of other Bearings & Guide Blocks In Stock,just click the " Contact Now "button for Price & other Information.
|
Bearing Model |
d (mm) |
D (mm) |
B (mm) |
| 29412-E1 | 60 | 130 | 42 |
| 29413-E1 | 65 | 140 | 45 |
| 29414-E1 | 70 | 150 | 48 |
| 29415-E1 | 75 | 160 | 51 |
| 29416-E1 | 80 | 170 | 54 |
| 29417-E1 | 85 | 180 | 58 |
| 29418-E1 | 90 | 190 | 60 |
| 29420-E1 | 100 | 210 | 67 |
| 29422-E1 | 110 | 230 | 73 |
| 29424-E1 | 120 | 250 | 78 |
| 29426-E1 | 130 | 270 | 85 |
| 29428-E1 | 140 | 280 | 85 |
| 29430-E1 | 150 | 300 | 90 |
| 29432-E1 | 160 | 320 | 95 |
| 29434-E1 | 170 | 340 | 103 |
| 29436-E1 | 180 | 360 | 109 |
| 29438-E1 | 190 | 380 | 115 |
| 29440-E1 | 200 | 400 | 122 |
| 29444-E1 | 220 | 420 | 122 |
| 29448-E1 | 240 | 440 | 122 |
|
Bearing Model |
d (mm) |
D (mm) |
B (mm) |
| 29392-E-MB | 460 | 710 | 150 |
| 29396-E-MB | 480 | 730 | 150 |
| 293/500-E-MB | 500 | 750 | 150 |
| 293/530-E-MB | 530 | 800 | 160 |
| 293/560-E-MB | 560 | 850 | 175 |
| 293/600-E-MB | 600 | 900 | 180 |
| 293/630-E-MB | 630 | 950 | 190 |
| 293/670-E-MB | 670 | 1000 | 200 |
| 293/750-E-MB | 750 | 1120 | 224 |
| 293/800-E-MB | 800 | 1180 | 230 |
| 293/850-E-MB | 850 | 1250 | 243 |
| 293/900-E-MB | 900 | 1320 | 250 |
| 293/950-E-MB | 850 | 1250 | 243 |
| 293/1000-E-MB | 1000 | 1460 | 276 |
| 293/1250-E-MB | 1250 | 1800 | 330 |
| 293/1600-E-MB | 1600 | 2280 | 408 |
Features

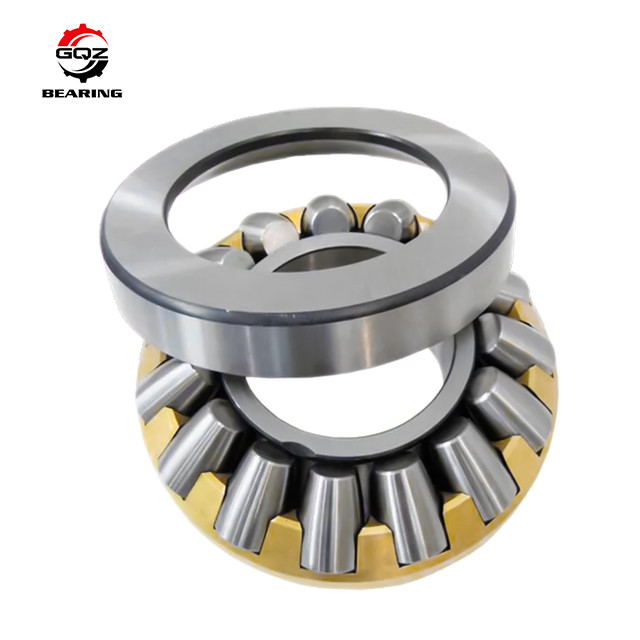

Axial spherical roller bearings are single row, self-aligning roller bearings. They comprise solid shaft and housing locating washers and asymmetrical barrel rollers with cages. The cage holds together the roller and cage assembly and the shaft locating washer. The bearings can be dismantled. As a result, the bearing components can be fitted separately.
Operating Temperature
Axial spherical roller bearings can be used at operating temperatures from –30 °C to +200 °C, restricted by the lubricant.
Cages
| Suffix | Description |
| E, E1 | Increased capacity design |
| MB |
Solid Brass Cage |
Bearings with the suffix MB have a solid brass cage that is guided on the shaft locating washer. The other bearings have sheet steel cages and do not have a cage suffix.
