Super Precision Bearing , 25TAB06U/GM P4 Ball Screw Support Bearing

I'm Online Chat Now
Certification
China Wuxi Guangqiang Bearing Trade Co.,Ltd certification
Received bearings. Very impressed with the quality. Warm and thoughtful service,fast shipment.I will keep doing business with your trustworthy company

—— John Grafton

More than 3 years business cooperation with your company has brought us a lots of benefits.We attain many local customers gratitude and supports.Thank

—— Mohammad EL ASSWAD

We have tested the bearing 23082 and I am so satisfied with the bearing quality.Good package and best price have given a big favor in our business.

—— Minwoo, Kwon

Super Precision Bearing , 25TAB06U/GM P4 Ball Screw Support Bearing

Super Precision Bearing , 25TAB06U/GM P4 Ball Screw Support Bearing
Super Precision Bearing , 25TAB06U/GM P4 Ball Screw Support Bearing Super Precision Bearing , 25TAB06U/GM P4 Ball Screw Support Bearing

Large Image :  Super Precision Bearing , 25TAB06U/GM P4 Ball Screw Support Bearing Get Best Price

Product Details:
Place of Origin: Japan
Brand Name: NACHI
Certification: ISO
Model Number: 25TAB06U/GM
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union or PayPal
Supply Ability: 3,000pcs per month
Detailed Product Description
Product Name: 25TAB06U ID: 25mm
OD: 62mm Height: 15mm
Origin: Japan Precision: P4
Type: Ball Screw Bearing Cage: Brass,Steel Or Nylon
High Light:

high precision bearings

,

precision spindle bearings

Super Precision Bearing , 25TAB06U/GM P4 Ball Screw Support Bearing



1. Specification:



Specification of Bearing

Bearing type

Angular contact ball bearing

Brand type

NACHI

Precision Rating

Japan

Vibration

Z1V1,Z2V2,Z3V3

Durability

Long

Material

Bearing steel

Certificate

ISO9001:2008

Main market abroad

South America,USA,European,Southeast

Asia,Middle East

Packaging Details

1. inner:polyester bag outer:paper carton

2. industrial standard packing

3. Poly bag+box+packing

4. 4. as your order

Delivery Time

Within 3-5 days after receiving

your subscription

Payment Terms

T/T,Western Union,Paypal



2. Feature:

(1) Singe row

(2) P4 precision

(3) chrome steel rings and ceramic balls
(4) brass,steel or nylon cage



3. Anguar contact contact angle:

AC: 25 degree

B: 40 degree

C: 15 degree

A: 30 degress



4. Matching type:

DB: back to back

DF: face to face

DT: Series connect



5. Application:High precision equipment and so on

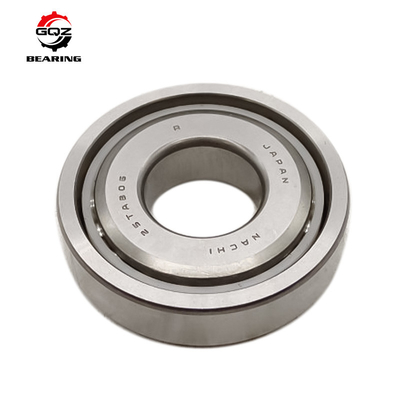

6. Bearing Picture:

Super Precision Bearing , 25TAB06U/GM P4 Ball Screw Support Bearing 0

Super Precision Bearing , 25TAB06U/GM P4 Ball Screw Support Bearing 1



7. We also supply following bearings:

Bearing No.

d(mm)

D(mm)

B(mm)

H708C-2RZ P4 HQ1

8

22

7

H709C-2RZ P4 HQ1

9

24

7

H7000C-2RZ P4 HQ1

10

26

8

H7001C-2RZ P4 HQ1

12

28

8

H7002C-2RZ P4 HQ1

15

32

9

H7003C-2RZ P4 HQ1

17

35

10

H7004C-2RZ P4 HQ1

20

42

12

H7005C-2RZ P4 HQ1

25

47

12

H7006C-2RZ P4 HQ1

30

55

13

H7007C-2RZ P4 HQ1

35

62

14

H7008C-2RZ P4 HQ1

40

68

15

H7009C-2RZ P4 HQ1

45

75

16

H7010C-2RZ P4 HQ1

50

80

16

H7011C-2RZ P4 HQ1

55

90

18

H7012C-2RZ P4 HQ1

60

95

18

H7013C-2RZ P4 HQ1

65

100

18

H7014C-2RZ P4 HQ1

70

110

20

H7015C-2RZ P4 HQ1

75

115

20

H7016C-2RZ P4 HQ1

80

125

22

H7017C-2RZ P4 HQ1

85

130

22

H7018C-2RZ P4 HQ1

90

140

24

H7019C-2RZ P4 HQ1

95

145

24

H7020C-2RZ P4 HQ1

100

150

24
