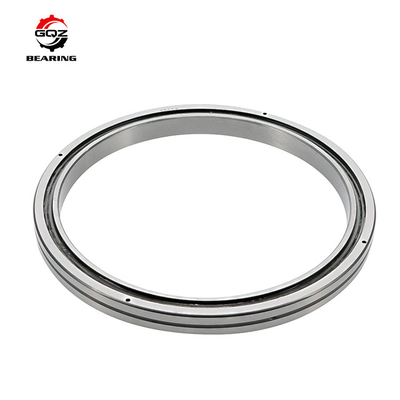

CSXU090-2RS Thin Section Bearing GCr15 Material 228.6x247.65x12.7 mm
| BearingModel | CSXU090-2RS |
| Material | Bearing Steel GCr15 ; Others |
| Type | Four Point Contact Thin Section Ball Bearing |
| d (mm) | 228.6 |
| D (mm) | 247.65 |
| B (mm) | 12.7 |
| Mass (KG) | 0.53 |
| Precision |
P0, P6, P5 ,P4 ,P2 |
We currently have 190.pcs of CSXU090-2RS Four Point Contact Thin Section Ball Bearing In Stock.If you are in need of CSXU090-2RS Bearing,just feel free to contact us.We can assure you the best quality; the most competitive prices; the shortest delivery time and the highest quality service.
For more details of CSXU090-2RS ,please feel free to contact me by WhatsApp or SKYPE or E-mail.
Besides,we also have Various Kinds of other Bearings & Guide Blocks In Stock,just click the " Contact Now "button for Price & other Information.
|
Bearing Model |
d mm |
d inch |
D mm |
B mm |
Bearing Model |
d mm |
d inch |
D mm |
B mm |
| CSXU040-2RS | 101,6 | 4 | 120,65 | 12,7 | CSCU040-2RS | 101,6 | 4 | 120,65 | 12,7 |
| CSXU045-2RS | 114,3 | 4 1/2 | 133,35 | 12,7 | CSCU045-2RS | 114,3 | 4 1/2 | 133,35 | 12,7 |
| CSXU050-2RS | 127 | 5 | 146,05 | 12,7 | CSCU050-2RS | 127 | 5 | 146,05 | 12,7 |
| CSXU055-2RS | 139,7 | 5 1/2 | 158,75 | 12,7 | CSCU055-2RS | 139,7 | 5 1/2 | 158,75 | 12,7 |
| CSXU060-2RS | 152,4 | 6 | 171,45 | 12,7 | CSCU060-2RS | 152,4 | 6 | 171,45 | 12,7 |
| CSXU065-2RS | 165,1 | 6 1/2 | 184,15 | 12,7 | CSCU065-2RS | 165,1 | 6 1/2 | 184,15 | 12,7 |
| CSXU070-2RS | 177,8 | 7 | 196,85 | 12,7 | CSCU070-2RS | 177,8 | 7 | 196,85 | 12,7 |
| CSXU075-2RS | 190,5 | 7 1/2 | 209,55 | 12,7 | CSCU075-2RS | 190,5 | 7 1/2 | 209,55 | 12,7 |
| CSXU080-2RS | 203,2 | 8 | 222,25 | 12,7 | CSCU080-2RS | 203,2 | 8 | 222,25 | 12,7 |
| CSXU090-2RS | 228,6 | 9 | 247,65 | 12,7 | CSCU090-2RS | 228,6 | 9 | 247,65 | 12,7 |
| CSXU100-2RS | 254 | 10 | 273,05 | 12,7 | CSCU100-2RS | 254 | 10 | 273,05 | 12,7 |
| CSXU110-2RS | 279,4 | 11 | 298,45 | 12,7 | CSCU110-2RS | 279,4 | 11 | 298,45 | 12,7 |
|
Bearing Model |
d mm |
d inch |
D mm |
B mm |
Bearing Model |
d mm |
d inch |
D mm |
B mm |
| CSCD040 | 101,6 | 4 | 127 | 12,7 | CSCF050 | 127 | 5 | 165,1 | 19,05 |
| CSCD045 | 114,3 | 4 1/2 | 139,7 | 12,7 | CSCF055 | 139,7 | 5 1/2 | 177,8 | 19,05 |
| CSCD050 | 127 | 5 | 152,4 | 12,7 | CSCF060 | 152,4 | 6 | 190,5 | 19,05 |
| CSCD055 | 139,7 | 5 1/2 | 165,1 | 12,7 | CSCF065 | 165,1 | 6 1/2 | 203,2 | 19,05 |
| CSCD060 | 152,4 | 6 | 177,8 | 12,7 | CSCF070 | 177,8 | 7 | 215,9 | 19,05 |
| CSCD065 | 165,1 | 6 1/2 | 190,5 | 12,7 | CSCF075 | 190,5 | 7 1/2 | 228,6 | 19,05 |
| CSCD070 | 177,8 | 7 | 203,2 | 12,7 | CSCF080 | 203,2 | 8 | 241,3 | 19,05 |
| CSCD080 | 203,2 | 8 | 228,6 | 12,7 | CSCF090 | 228,6 | 9 | 266,7 | 19,05 |
| CSCD090 | 228,6 | 9 | 254 | 12,7 | CSCF100 | 254 | 10 | 292,1 | 19,05 |
| CSCD100 | 254 | 10 | 279,4 | 12,7 | CSCF110 | 279,4 | 11 | 317,5 | 19,05 |
| CSCD110 | 279,4 | 11 | 304,8 | 12,7 | CSCF120 | 304,8 | 12 | 342,9 | 19,05 |
| CSCD120 | 304,8 | 12 | 330,2 | 12,7 | CSCF140 | 355,6 | 14 | 393,7 | 19,05 |
| CSCD140 | 355,6 | 14 | 381 | 12,7 | CSCF160 | 406,4 | 16 | 444,5 | 19,05 |
| CSCD160 | 406,4 | 16 | 431,8 | 12,7 |
Feature
Type : Thin section bearings CSXU ,Four point contact bearing, Type X, Sealed on both sides
Operating Temperatures : -25°C to +120°C
