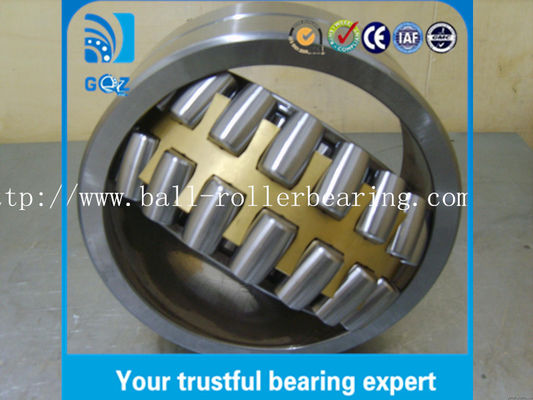

Super Precision 22205 High Speed Roller Bearings CA Cage 25 X 52 X 18 mm

1
MOQ
1 USD
Price
Super Precision 22205 High Speed Roller Bearings CA Cage 25 X 52 X 18 mm
Features Gallery Product Description Request A Quote
Features
Specifications
Structure:: Spherical
Type:: Roller
Bore Size:: 25 Mm
Outside Diameter:: 52 Mm
Number Of Row:: Double Row
Material:Rating:: Chrome Steel GCR15
Precision: P0 P6 P5
OEM Service:: Available
Lubrication:: Grease Or Oil
Cage:: Brass
High Light:

bearing spherical roller

,

self aligning roller bearings

Basic Infomation
Place of Origin: Wuxi , China
Brand Name: GQZ
Certification: ISO9001
Model Number: 22205 CAW33C3
Payment & Shipping Terms
Packaging Details: Single packing + standard export packing
Delivery Time: 10 working days
Payment Terms: T/T, Western Union,, Western Union, , Western Union
Supply Ability: 1000PCS / Month
Product Description

Super Precision 22205 High Speed Roller Bearings CA Cage 25 X 52 X 18 mm



Product Description

Self-aligning roller bearings consist of an inner ring with two raceways inclined at an angle to the bearing axis, an outer ring with a common spherical raceway, spherical rollers, cages and, in certain designs, also internal guide rings or center rings. The bearings can also be sealed.



Most spherical roller bearings are designed with two rows of rollers, allowing them to take very heavy radial loads and heavy axial loads. There are also designs with one row of rollers, suitable for lower radial loads and virtually no axial load. These are also called "barrel roller bearings" or "Tonnenlager" and are typically available in the 202- and 203-series.



The internal design of the bearing is not standardised by ISO, so it varies between different manufacturers and different series. Some features that may or may not exist in different bearings are:



>Lubrication features in inner or outer ring

>Central flange

>Guide ring or center ring

>Integrated seals

>Cage



External dimensions of spherical roller bearings are standardised by ISO in the standard ISO 15:1998. Some of the common series of spherical roller bearings are:



213 series Self-aligningl roller bearing

222 series Self-aligningl roller bearing

223 series Self-aligningl roller bearing

230 series Self-aligningl roller bearing

231 series Self-aligningl roller bearing

232 series Self-aligningl roller bearing

238 series Self-aligningl roller bearing

239 series Self-aligningl roller bearing

240 series Self-aligningl roller bearing

241 series Self-aligningl roller bearing

248 series Self-aligningl roller bearing

249 series Self-aligningl roller bearing



Bearing Number

Boundary Dimensions(mm)

Basic Load Ratings(kN)

Limiting Speeds(rpm)

Mass(Kg)

IKG

d

D

B

rs min

Cr

Cor

Grease

Oil

(Approx.)

22205

25

52

18

1

36.5

36

6,500

10,000

0.186

22206

30

62

20

1

49

49

5,700

8,800

0.287

22207

35

72

23

1.1

69.5

71

4,900

7,500

0.446

22208

40

80

23

1.1

79

88.5

4,300

6,600

0.526

22209

45

85

23

1.1

82.5

95

3,800

5,900

0.584

22210

50

90

23

1.1

86

102

3,500

5,300

0.63

22211

55

100

25

1.5

118

144

3,200

4,900

0.808

22212

60

110

28

1.5

115

147

2,900

4,500

1.15

22213

65

120

31

1.5

143

179

2,700

4,200

1.5

22214

70

125

31

1.5

154

201

2,500

3,900

1.55

22215

75

130

31

1.5

166

223

2,300

3,600

1.65

22216

80

140

33

2

213

277

2,200

3,400

1.99

22217

85

150

36

2

251

320

2,100

3,200

2.49

22218

90

160

40

2

292

385

1,900

3,000

3.24

22219

95

170

43

2.1

294

390

1,800

2,800

4.1

22220

100

180

46

2.1

315

415

1,700

2,700

4.95

22222

110

200

53

2.1

410

570

1,600

2,400

7.2

22224

120

215

58

2.1

485

700

1,400

2,200

9.1

22226

130

230

64

3

570

790

1,300

2,000

11.2

22228

140

250

68

3

685

975

1,200

1,900

14

22230

150

270

73

3

775

1,160

1,100

1,700

18.1

22232

160

290

80

3

870

1,290

1,000

1,600

22.7

22234

170

310

86

4

1,000

1,520

980

1,500

28

22236

180

320

86

4

1,040

1,610

920

1,400

29.3

22238

190

340

92

4

1,160

1,810

860

1,300

36.6

22240

200

360

98

4

1,310

2,010

820

1,300

44

22244

220

400

108

4

1,580

2,460

730

1,100

60.4

22248

240

440

120

4

1,940

3,100

660

1,000

81.7

22252

260

480

130

5

2,230

3,600

610

930

106

22256

280

500

130

5

2,310

3,800

560

860

112

22260

300

540

140

5

2,670

4,350

510

790

141

 Spherical Roller bearings from IKG, which includes a wide range of types- E types, CCW33 types, CAW33 types. And the bores usually in Cylindrical bore and Tapered bore(K). K(1:12), K30(1:30). Clerance usually in C3.





Self-aligning roller bearing application:

> Gearboxe

> Wind turbine

> Continuous casting machine

> Material handling

> Pump

> Mechanical fans and blowers

> Mining and construction equipment

> Pulp and paper processing equipment

> Marine propulsion and offshore drilling

> Off highway vehicle

... ...



Self-aligningl roller bearing Materail

Basically, there are several common designs of Self-aligningl roller bearing , each offering various trade-offs. They can be made from many different materials, including: stainless steel, chrome steel, and ceramic (silicon nitride (Si3N4)). A hybrid ball bearing is a bearing with ceramic balls and races of metal. Following, we will show you the material for general  self-aligning Roller Bearing 22205 CAW33C3 .

GCr15:  basic material for bearing inner, outter ring and roller body

High carbon chrome bearing steel (GCr15) is the standard material for bearing rings & rolling elements, also carbon steel & stainless steel will be used upon request. The chemical composition of Gcr15 is listed in the below table.



PS: The choice of material is mainly done by the manufacturing volume and method. For large-volume bearings, cages are often of stamped sheet-metal or injection molded polyamide, whereas low volume manufacturers or low volume series often have cages of machined brass or machined steel. For some specific application, special material for coating (e.g. PTFE coated cylindrical bore for vibratory application) is adopted.



Chemical composition of bearing steel:

Super Precision 22205 High Speed Roller Bearings CA Cage 25 X 52 X 18 mm 0



Interchage table for material Gcr15 in different countries:

Super Precision 22205 High Speed Roller Bearings CA Cage 25 X 52 X 18 mm 1





Cage materail:

Cages are typically used to secure the rolelrs in the self-aligningl roller bearing . In other construction types they may decrease the number of roller depending on the specific cage shape, and thus reduce the load capacity. Without cages the tangential position is stabilized by sliding of two convex surfaces on each other. With a cage the tangential position is stabilized by a sliding of a convex surface in a matched concave surface, which avoids dents in the balls and has lower friction. Caged roller bearings were invented by John Harrison in the mid-18th century as part of his work on chronographs. Caged bearings were used more frequently during wartime steel shortages for bicycle wheel bearings married to replaceable cups.



♦Steel cage

Generally speaking, HF or CRC cages are pressed steel ribbon cages & pressed steel snap cages. For extra-high speed application, synthetic-resin, stainless steel, nylons will be used upon request.

Steel Grade Chemical Composition (%)
JISG 3141
SPCC
C Si Mn P S Ni Cr
<0.12 <0.5 <0.04 <0.045 - -



♦Brass cage

For the reason of that its chemical characteristic, it mainly used for the small and medium size bearing, and some working environment with relative high temperature.



♦Nylon cage

Similiar with brass cage, the nylon cage's own chemical characteristic, it is mainly used for the working envirionment temperature of -40 to +125 degree. The post popular materail is PA66 and the buyer can choose glass fiber reinforcement added, to enhandce the strength and elasticity.

Compared with steel and brass cage, it has better precision, and light in weight, which is helpful to realized in the applciaiton of

modern demand for the lightening for automobile car.



Dust shield and seal ring



♦ Dust shield

SPCC is the main material for the shields, and carbon steel & stainless steel ,like AISI-300 can be used upon request.



♦ Seal ring

 NBR is standard sealing material we use, while fluorocabon, silicone, and teflon seals are commonly specified for high temperatures.

Materail ASTM D1418 Name Temperature Range Hardness Features Restriction
(Shore A)
Nitrile butaduene rubber NBR -40~120 40-90 Low compression Unsuitable for high temperature conditions;
No exposure to the sun and corrosion of chemicals
High ductility
High corrosion resistance
superior oil resistance
Silicon rubber MQ/PMQ
VMQ/PVMP
-70~200 25-80 High temperature resistance Poor surface abrasion performance and crack resistance, higher wear resistance
Desiccation resistance
Sunshine resistance
aging resistance to ozone
Hydrogenated
(nitrile-butadiene rubber)
HNBR/NEM -35~65 50-90 Heat resistance
High ductility
Chemical resistance
Unsuitable for high temperature conditions and shall avoid exposure to the sun and corrosion of chemicals
Fluororubber FKM/FPM -28~200 50-95 High temperature resistance
Significant chemical resistance
corrosion resistance to petroleum products
It is not suitable for working conditions of low temperature.
ACM rubber ACM Rubber -18~175 40-90 Stronger resistance to hot oil poor waterproof performance;
Sunlight and ozone unsuitable for working condition of ultra-low temperature
Higher crack resistance

Warning:flurorubber is safe and harmless under normal working condition of below 200, but it will give off smoke if the temperature exceeds the ultimate temperature of 300 that is equivalent to flame for cutting steel tubes. Inhalation of the smoke is harmful to human bodies including eyes. In addition, the smoke should be avoided to contact skin.Super Precision 22205 High Speed Roller Bearings CA Cage 25 X 52 X 18 mm 2
