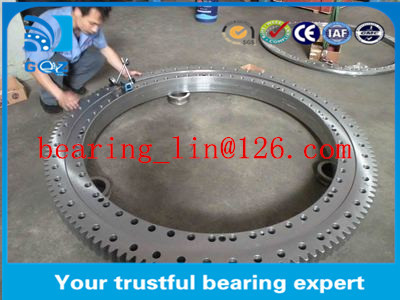

Rotary turntable bearing 100x185x38 Ball Bearing / YRT100
| Production specification | |
| Product name: | Rotary bearing turntable bearing slewing bearing YRT100 |
| Model Number: | YRT100 |
| SIZE:(dxDxH)mm |
100*185*38 |
| Number of Row: | Three rows |
| Race(ring)material | Chrome steel |
| Cage(retainer) material: | Brass |
| Type: | slewing bearing |
| Precision Rating: | P0, P6,P5,P4,P2 |
| Seals Type: | Open |
| Brand Name: | MBY or OEM |
| Place of Origin: | Jiangsu, China (Mainland) |
| Quality control: | 100% inspection before shipment |
| Quality standard: | ISO 9001:2008 |
| Delivery time: | For inventory goods, 3-5 working days after deposit, others depends on the order. |
| Trade terms: | FOB,FCA, EXW,CIF |
| Payment terms: | TT 30% deposit, 70% balance before shipment |
Item list: Rotary bearing turntable bearing slewing bearing YRT100
| bearing type code | Boundary dimensions | fixing hole | ||||||||||||
| d | D | H | H1 | C | D1 | J | J1 | inner ring | outer ring | |||||
| Unit unit: mm | d1 | d2 | a | quantity | d3 | quantity | ||||||||
| mm | mm | |||||||||||||
| YRT50 | 50 | 126 | 30 | 20 | 10 | 105 | 63 | 116 | 5.6 | 9 | 4.2 | 10 | 5.6 | 12 |
| YRT80 | 80 | 146 | 35 | 23.4 | 12 | 130 | 92 | 138 | 5.6 | 10 | 4.2 | 10 | 4.6 | 12 |
| YRT100 | 100 | 185 | 38 | 25 | 12 | 160 | 112 | 170 | 5.6 | 10 | 5.4 | 16 | 5.6 | 15 |
| YRT120 | 120 | 210 | 40 | 26 | 12 | 184 | 135 | 195 | 7 | 11 | 6.2 | 22 | 7 | 21 |
| YRT150 | 150 | 240 | 40 | 26 | 12 | 214 | 165 | 225 | 7 | 11 | 6.2 | 34 | 7 | 33 |
| YRT180 | 180 | 280 | 43 | 29 | 15 | 244 | 194 | 260 | 7 | 11 | 6.2 | 46 | 7 | 45 |
| YRT200 | 200 | 300 | 45 | 30 | 15 | 274 | 215 | 285 | 7 | 11 | 6.2 | 46 | 7 | 45 |
| YRT260 | 260 | 385 | 55 | 36.5 | 18 | 345 | 280 | 365 | 9.3 | 15 | 8.2 | 34 | 9.3 | 33 |
| YRT325 | 325 | 450 | 60 | 40 | 20 | 415 | 342 | 430 | 9.3 | 15 | 8.2 | 34 | 9.3 | 33 |
| YRT395 | 395 | 525 | 65 | 42.5 | 20 | 486 | 415 | 505 | 9.3 | 15 | 8.2 | 46 | 9.3 | 45 |
| YRT460 | 460 | 600 | 70 | 46 | 22 | 560 | 482 | 580 | 10 | 15 | 8.2 | 46 | 10 | 45 |
| YRT580 | 580 | 750 | 90 | 60 | 30 | 700 | 610 | 720 | 11.4 | 18 | 11 | 46 | 11.4 | 42 |
| YRT650 | 650 | 870 | 122 | 78 | 34 | 800 | 680 | 830 | 14 | 20 | 13 | 46 | 14 | 42 |
| YRT850 | 850 | 1095 | 124 | 80.5 | 37 | 1018 | 890 | 1055 | 18.5 | 26 | 17 | 57 | 18.5 | 54 |
| YRT950 | 950 | 1200 | 132 | 86 | 40 | 1130 | 990 | 1160 | 18.5 | 26 | 17 | 57 | 18.5 | 54 |
| YRT1030 | 1030 | 1300 | 145 | 92.5 | 40 | 1215 | 1075 | 1255 | 18.5 | 26 | 17 | 66 | 18.5 | 66 |
| YRT1200 | 1200 | 1490 | 164 | 108 | 52 | 1410 | 1240 | 1445 | 18.5 | 26 | 17 | 66 | 18.5 | 66 |
Application field: Rotary bearing turntable bearing slewing bearing YRT100
Precision device is widely used in precision rotary table vertical grinder, dividing head, hobbing machine, milling machine the workpiece shaft.
GQZ Other bearings series
| Type | Inner and outer race Material | Retainer Material | Row |
| Deep Groove Ball Bearing | Chrome Steel , Ceramic, Plastic | Steel , Brass , Nylon | Double, Single |
| Self Aligning Ball Bearing | Chrome Steel | Steel , Brass | Double |
| Cylindrical Roller Bearing | Chrome Steel | Steel , Brass | Double, Single |
| Spherical Roller Bearing | Chrome Steel | Steel , Brass | Double |
| Angular Contact Ball Bearing | Chrome Steel | Steel , Brass | Double, Single |
| Taper Roller Bearing | Chrome Steel | Steel , Brass | Double, Single |
| Thrust Bearing | Chrome Steel | Steel , Brass | Double, Single |
| Needle Roller Bearing | Chrome Steel | Steel , Brass | Double, Single |
| Pillow Block Bearing | Chrome Steel | Steel , Brass | Double, Single |
