Anti Friction Double Row Cylindrical Roller Bearing , Steel Cage Bearing NJ316

1 pcs
MOQ
negotiation
Price
Anti Friction Double Row Cylindrical Roller Bearing , Steel Cage Bearing NJ316
Features Gallery Product Description Request A Quote
Features
Specifications
Structure: Cylindrical
Type: Roller
Number Of Row: Single Row
Application: Vibration Machinary,CNC Machine And So On
Cage: Brass;steel
Clearance: C3;C4
Material: Chrome Steel
Lubrication: Grease Or Oil
Size: 80x170x39 Mm
OEM Service: Approval
High Light:

Cam Follower Bearing

,

roller thrust bearing

Basic Infomation
Place of Origin: Japan
Brand Name: NSK/KOYO
Certification: ISO9001:2008
Model Number: NJ316
Payment & Shipping Terms
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union or PayPal
Supply Ability: 3,000pcs per month
Product Description

Anti Friction Double Row Cylindrical Roller Bearing , Steel Cage Bearing NJ316



NJ316 bearing

Inner ring single guard cylindrical roller bearing NJ316 bearing



NJ316 bearing

1. High quality cylindrical roller bearing
2. High speed,low friction
3. Competitive price
4 .Prompt delivery



Cylindrical Roller Bearing Description



Cylindrical bore and the conical bore two structures. This kind of bearing has a compact structure, rigidity, load capacity, force, deformation, etc, especially suitable for machine tool spindle bearing. It is divided into NN and NNU two structural forms. NN-type bearing a double wall of the inner and outer ring without ribs, NNU type of bearings, compared with a double wall of the outer ring while the inner ring without ribs, the two bearings shall restrict the axis and the relative axial displacement between the housing for non-locating bearings



Types of Cylindrical Roller Bearing

  • Single row cylindrical roller bearings
  • Double row  full complement cylindrical roller bearings
  • Single row  full complement cylindrical roller bearings
  • Four row cylindrical roller bearings



  • Features:

  •

  • cylindrical roller line contact with the raceway, radial load capacity, both for load and impact load to bear weight, but also for high-speed rotation. Cylindrical roller bearing raceway and rolling element geometry improved after the design has a high carrying capacity, rib and roller end of the new structural design not only improves the axial load bearing capacity, while improving the roller face contact area with the wall lubrication conditions, and improve the bearing performance. Such bearings is mainly used for medium and large motors, generators, internal combustion engines, gas turbines, machine tool spindles, deceleration devices, handling machinery, all types of industrial machinery.

Our  technical parameters



new modle old modle d D width
(mm)
Cr Cor weight
(mm) (mm) (kN) (kN) (kg)
NU2206E 32506E 30 62 20 45.5 48 0.268
NU306E 32306E 30 72 19 49.2 48.2 0.377
NU2306E 32606E 30 72 27 70 75.5 0.538
NU406 32406 30 90 23 57.2 53 0.73
NU1007 32107 35 62 14 19.5 18.8 0.16
NU207E 32207E 35 72 17 46.5 48 0.311
NU2207E 32507E 35 72 23 57.5 63 0.414
NU307E 32307E 35 80 21 62 63.2 0.501
NU2307E 32607E 35 80 31 87.5 98.2 0.738
NU407 32407 35 100 25 70.8 68.2 0.94
NU1008 32108 40 68 15 21.2 22 0.22
NU208E 32208E 40 80 18 51.5 53 0.394
NU2208E 32508E 40 80 23 67.5 75.2 0.507
NU308E 32308E 40 90 23 76.8 77.8 0.68
NU2308E 32608E 40 90 33 105 118 0.974

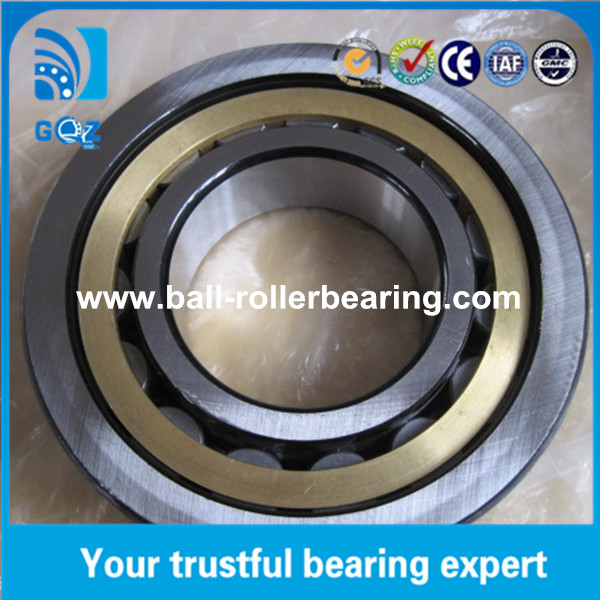

Anti Friction Double Row Cylindrical Roller Bearing , Steel Cage Bearing NJ316 0



Cylindrical rollers bearing  NJ316-E-TVP2/NJ316E.TVP2

Principal

d



80m

D

170m

B

39m

Basic loading rating

Dynamic Cr

171000KN

Staic Cor

285000KN

Speed ratings

grease

1400r/min

 Oil

r/min

Materials:

Gcr15,   Gcr15SiMn

Bearing Retainer

Nylon,Steel,Brass

Grease

SRL Alvanin,SRI2 Chevron,ordinary grease etc.

Module Series

NU ,NJ,NUP,NF,Nseries

Service

OEM

Quality Standard

ISO9001:2008

Delivery

Within 7-15days after down payment

Payment terms:

A:30% T/T inadvance,70% before shippment

B:100% L/C at sight

Transport terms

by sea or by air

Package:

Single paper box or according to requirements



Anti Friction Double Row Cylindrical Roller Bearing , Steel Cage Bearing NJ316 1

Anti Friction Double Row Cylindrical Roller Bearing , Steel Cage Bearing NJ316 2



 Why Choose us?



Our company you can trustworth & reply on.



Quality-World Class Bearings.

Long life,shock-resistant and high reliablity bearing with excellent quality and better performance.



Quantity-Many Stock.

Customer’s burden is reduced as inventory is maintained by our company as per customers needs.



Price-Competitive Price.

We provide our customers with high competitive market prices.



Shippment-Qucik Delivery.

Our company provides just-in time delivery with it’s streamlined supply chain.



After Sales Service & ISO9001:2008 Certification.

Our company provides after sales service & technical assistance as per the customers requirment & needs.

Annual Rate Contracts.

Rate contacts on annual basis are also signed,thus reducing the effort and time wastage of customer to serch for alternatives.



Attending Customers Queries Promptly. We belive that if customers are satisfied then it proves our worth well.Customers are always given quick support.
