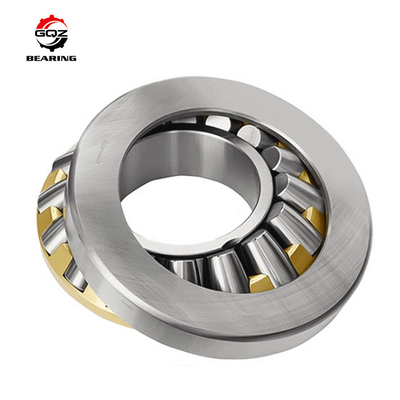

High Preformance Thrust Spherical Roller Bearing 29340 For Steel Machinery
Introduction:
1) Low friction
2) Minimum lubrication
3) Wear resistant
4) Running in not required
5) Requires little attention
6) Dimensions relatively small
7) No scraping required to fit shaft
8) Easy replacement
Thrust roller bearings consist of two precision chrome steel washers (ring) and a roller complement spaced by bronze retainer. They can be supplied with or without radius roller grooves in the rings. Thrust bearings
are used under purely axial loads.Bearing rings mounted on the shaft are called shaft washers, and those mounted in the housing are called housing washers. Both washers contain raceways for the rollers.
| Model Number | 29340 |
| Structure | thrust roller bearing |
| Type | roller |
| Seals Type | Open |
| Material | Chrome Steel |
| Cage material | steel , brass cage |
| Clearance | C0,C2,C3,C4,C5 |
| Vibration | Zv1,Zv2 and Zv3 |
| Precision Rating | P0,P6,P5 |
| Greese | As you requirement, such as SRL ,PS2, Alvania R12 and so on |
| Number of Row | Single Row |
| Guarantee | One year. |
| Application | Home appliances, low noise and high speed electric motors, |
| automotive components, pumps, machinery. | |
| Certifications | ISO 9001:2008, SASO,CE,PVOC |
| Package | Single box or according to buyers requirement . |
| Place of Origin | China (Mainland) |
| MOQ | 1 PCS |
| Service | (1) Prompt Delivery |
| (2) OEM | |
| (3) Good Service Offered | |
| (4) Buyer Label Offered | |
| Payment Term | TT or L/C or West Union or paypal |
| Port | Qingdao or guangzhou port |
| Details | 1,Low price |
| 2.Low vibration | |
|
3.high rolling accuracy |
|
|
|
Part of the bearing specification:
| Bearing No. | Size/mm | installation dimension/mm | Basic load ratings/kN | Limiting load rarting | Limiting speeds/(r/min) | ||||||||
| New | Old | d | D | T | E | da | Da | ras | Ca | Coa | A | Grease | Oil |
| min | max | max | |||||||||||
| 29330 | 9039330 | 150 | 250 | 60 | 87 | 195 | 220 | 2.1 | 781 | 2 753 | 0.774 | — | 1 300 |
| 29430 | 9039430 | 300 | 90 | 92 | 220 | 253 | 3 | 1 452 | 4 680 | 2.285 | — | 900 | |
| 29332 | 9039332 | 160 | 270 | 67 | 92 | 210 | 236 | 2.5 | 927 | 3 253 | 1.063 | — | 1 200 |
| 29432 | 9039432 | 320 | 95 | 99 | 230 | 271 | 4 | 1 589 | 5 315 | 2.969 | — | 800 | |
| 29334 | 9039334 | 170 | 280 | 67 | 96 | 220 | 247 | 2.5 | 940 | 3 358 | 1.16 | — | 1 100 |
| 29434 | 9039434 | 340 | 103 | 104 | 245 | 288 | 4 | 1 878 | 6 265 | 4.015 | — | 750 | |
| 29336 | 9039336 | 180 | 300 | 73 | 103 | 235 | 263 | 2.5 | 1 111 | 4 056 | 1.628 | — | 1 000 |
| 29436 | 9039436 | 360 | 109 | 110 | 260 | 305 | 4 | 2 056 | 6 867 | 4.936 | — | 670 | |
| 29338 | 9039388 | 190 | 320 | 78 | 110 | 250 | 281 | 3 | 1 301 | 4 861 | 2.294 | — | 900 |
| 29438 | 9039438 | 380 | 115 | 117 | 275 | 322 | 4 | 2 297 | 7 774 | 6.228 | — | 600 | |
| 29240 | 9039240 | 200 | 280 | 48 | 108 | 235 | 258 | 2 | 612 | 2 518 | 0.759 | — | 1 400 |
| 29340 | 9039340 | 340 | 85 | 116 | 265 | 298 | 3 | 1 430 | 5 181 | 2.827 | — | 900 | |
| 29440 | 9039440 | 400 | 122 | 122 | 290 | 338 | 4 | 2 483 | 8 386 | 7.588 | — | 600 | |
| 29244 | 9039244 | 220 | 300 | 48 | 117 | 260 | 277 | 2 | 634 | 2 705 | 0.749 | — | 1 300 |
| 29344 | 9039344 | 360 | 85 | 125 | 285 | 316 | 3 | 1 524 | 5 661 | 3.21 | — | 800 | |
| 29444 | 9039444 | 420 | 122 | 132 | 310 | 360 | 5 | 2 588 | 8 990 | 8.583 | — | 560 | |
| 29248 | 9039248 | 240 | 340 | 60 | 130 | 285 | 311 | 2.1 | 915 | 3 951 | 1.483 | — | 1 100 |
| 29348 | 9039348 | 380 | 85 | 135 | 300 | 337 | 3 | 1 583 | 6 014 | 3.569 | — | 750 | |
Our Advantages:
1. Manufacturer,the most competive price and good quality
2. Perfect group of technical engineers give you the best support
3.Well-trained group of international sales provide the best service
4.OEM brand aviliable
5.Rich stock and quick delivery
Main Product:
1. Deep groove ball bearing
2. Angular contact ball bearing
3. Ceramic bearing
4. Cylidrical roller bearing
5. Self-aligning ball bearing
6. Spherical roller bearing
7. Tapered roller bearing
8. Pillow block ball bearing
9. Wheel bearing
10. Other famous brand and OEM
Company information:
FAQ
What are the main advantages of using a 29340 Thrust Tapered Roller Bearing over other types of bearings?
The 29340 Thrust Tapered Roller Bearing is specifically designed to handle significant axial loads in one direction. Its tapered shape allows for better load distribution across the rollers, resulting in improved durability and longevity. Compared to other bearings, the 29340 can offer higher load capacity and better performance under high axial force conditions.
In what types of applications is the 29340 Thrust Tapered Roller Bearing most effective?
The T199 Thrust Tapered Roller Bearing is particularly effective in applications that involve heavy thrust loads, such as in gearboxes, pumps, and heavy machinery. Its ability to support high axial loads makes it a reliable choice for industrial machinery that requires consistent performance under intense pressure.
How can I ensure proper installation of a 29340 Thrust Tapered Roller Bearing to maximize its performance?
Proper installation is crucial for the optimal performance of a 29340 Thrust Tapered Roller Bearing. Ensure that the surfaces where the bearing will be installed are clean and free of debris. Use appropriate tools or a press to install the bearing without damaging the raceways or rollers. It's also important to maintain the correct orientation and alignment to prevent uneven load distribution.
What maintenance practices are recommended for a 29340 Thrust Tapered Roller Bearing to prolong its service life?
Regular lubrication and inspection are key to maintaining the health of a 29340 Thrust Tapered Roller Bearing. Use high-quality lubricants that are compatible with the bearing's operating conditions. Check for wear, damage, or contamination regularly, and replace the bearing if any issues are identified. Keeping the bearing clean and free from contaminants will also help in extending its service life.
