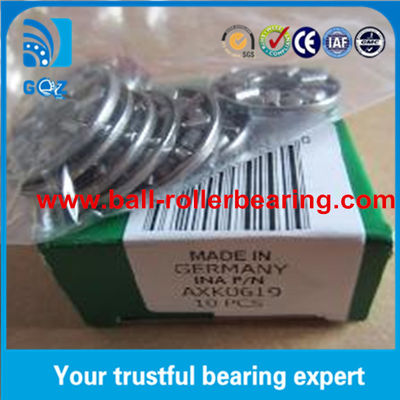

Product	AXK0619 bearing 6X19X2MM thrust needle roller bearing and washer from china factory
Model No	AXK0619
Size	6X19X2MM
Material	Chrome steel(GCr15), carbon steel, stainless steel
Type	Needle roller bearing
Precision Rating	ABEC-1 (P0), ABEC-3 (P6), ABEC-5(P5)
Clearance	C0,C2,C3,C4,C5 is available
Quality Level	Z1,Z2,Z3,Z4
Vibration Level	V1,V2.V3
Lubrication	grease
OEM	Accept
Sample	OK
packing	polybag+carton+wooden pallet

Shaft	Axial Needle Roller and Cage Assemblies	Thrust bearing washer				Dimension(mm)
Diameter (mm)	Code	Bearing washer	Shaft Ring	Seat Ring	Axial Bearing Washer	Dcl	D1	Dc	d1	Dw	B1	B	a
Diameter (mm)	Code	Bearing washer	Shaft Ring	Seat Ring	Axial Bearing Washer	d	D1	D	d1	Dw	B1	B	r min
4	AXK0414TN	AS0414	—	—	—	4	—	14	—	2	1	—	—
5	AXK0515TN	AS0515	—	—	—	5	—	15	—	2	1	—	—
6	AXK0619TN	AS0619	LS0619	—	—	6	—	19	—	2	1	2.75	0.3
8	AXK0821TN	AS0821	LS0821	—	—	8	—	21	—	2	1	2.75	0.3
10	AXK1024	AS1024	LS1024	—	—	10	—	24	—	2	1	2.75	0.3
12	AXK1226	AS1226	LS1226	—	—	12	—	26	—	2	1	2.75	0.3
15	AXK1528	AS1528	LS1528	GS81102	WS81102	15	16	28	28	2	1	2.75	0.3
17	AXK1730	AS1730	LS1730	GS81103	WS81103	17	18	30	30	2	1	2.75	0.3
20	AXK2035	AS2035	LS2035	GS81104	WS81104	20	21	35	35	2	1	2.75	0.3
25	AXK2542	AS2542	LS2542	GS81105	WS81105	25	26	42	42	2	1	3	0.6
30	AXK3047	AS3047	LS3047	GS81106	WS81106	30	32	47	47	2	1	3	0.6
35	AXK3552	AS3552	LS3552	GS81107	WS81107	35	37	52	52	2	1	3.5	0.6
40	AXK4060	AS4060	LS4060	GS81108	WS81108	40	42	60	60	3	1	3.5	0.6
45	AXK4565	AS4565	LS4565	GS81109	WS81109	45	47	65	65	3	1	4	0.6
50	AXK5070	AS5070	LS5070	GS81110	WS81110	50	52	70	70	3	1	4	0.6
55	AXK5578	AS5578	LS5578	GS81111	WS81111	55	57	78	78	3	1	5	0.6
60	AXK6085	AS6085	LS6085	GS81112	WS81112	60	62	85	85	3	1	4.75	1
65	AXK6590	AS6590	LS6590	GS81113	WS81113	65	67	90	90	3	1	5.25	1
70	AXK7095	AS7095	LS7095	GS81114	WS81114	70	72	95	95	4	1	5.25	1
75	AXK75100	AS75100	LS75100	GS81115	WS81115	75	77	100	100	4	1	5.75	1
80	AXK80105	AS80105	LS80105	GS81116	WS81116	80	82	105	105	4	1	5.75	1
85	AXK85110	AS85100	LS85110	GS81117	WS81117	85	87	110	110	4	1	5.75	1
90	AXK90120	AS90120	LS90120	GS81118	WS81118	90	92	120	120	4	1	6.5	1
100	AXK100135	AS100135	LS100135	GS81120	WS81120	100	102	135	135	4	1	7	1
110	AXK110145	AS110145	LS110145	GS81122	WS81122	110	112	145	145	4	1	7	1
120	AXK120155	AS120155	LS120155	GS81124	WS81124	120	122	155	155	4	1	7	1
130	AXK130170	AS130170	LS130170	GS81126	WS81126	130	132	170	170	5	1	9	1
140	AXK140180	AS140180	LS140180	GS81128	WS81128	140	142	180	178	5	1	9.5	1
150	AXK150190	AS150190	LS150190	GS81130	WS81130	150	152	190	188	5	1	9.5	1
160	AXK160200	AS160200	LS160200	GS81132	WS81132	160	162	200	198	5	1	9.5	1
