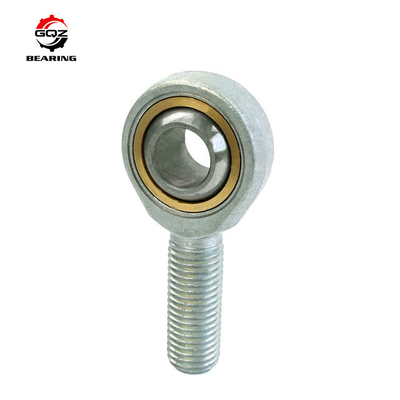

High Speed and Low Noise Spherical Plain bearing M64*4 Excavato SI80ES 80x182x55mm

High Speed and Low Noise Spherical Plain bearing M64*4 Excavato SI80ES 80x182x55mm
High Speed and Low Noise Spherical Plain bearing M64*4 Excavato SI80ES 80x182x55mm High Speed and Low Noise Spherical Plain bearing M64*4 Excavato SI80ES 80x182x55mm

Large Image :  High Speed and Low Noise Spherical Plain bearing M64*4 Excavato SI80ES 80x182x55mm Get Best Price

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: ISO9001:2008
Model Number: SI80ES
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union or PayPal
Supply Ability: 3,000pcs per month
Detailed Product Description
Product Name: SI80ES Package: Plastic Bag And Box
Lubrication: Oil Precision Rating: ABEC-1
High Light:

metric spherical bearings

,

spherical sliding bearing

E series Rod M64*4 Excavato SI80ES 80x182x55mm , High Speed and Low Noise Spherical Plain bearing

  • Descriptions of Spherical Plain Bearing

The Spherical Bearing is a heavy-duty self-aligning sliding bearing. Highly resistant to impact loads, this product is most fitted to the oscillating section under slow, heavy loads.



  • Descriptions of Rod End Bearing

A rod end bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required. A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female.



  •  Maintenance Required

1. Rod body with right or left hand female thread

2. It is made up of a radial spherical plain bearing GE..E(s) or GE..ES 2RS and rod body

3. Surface of rod body zine plated, housing of SI..ES with a lubricating hole or grease nipple

4. For left hand thread, please add suffix "L", e.g. SIL 30 ES

5. For bearings d≥15, SI..ES 2RS also available, e.g. SI 25 ES 2RS

6. Lubricating hole or grease nipple isn't available for size marked"*"



  • Specification of Rod End Bearing SI 80 ES
SI..ES Dimensions (mm) Load Ratings (kn) Weight (kg)
Type d B C1 d2 Dynamic Static
SI 80 ES 80 55 47 180 6 400 750 13




High Speed and Low Noise Spherical Plain bearing M64*4 Excavato SI80ES 80x182x55mm 0





Dimensions Angle Dynamic Static
d(mm) d2(mm) B(mm) G(6H) C1(Max) h1 C(kn) C0(kn)
40 94 28 M 42x3 24 145 6 280 166 SIL 40 TXE-2LS
40 94 28 M 39x3 24 142 6 280 166 SIA 40 TXE-2LS
40 94 28 M 39x3 24 142 6 280 166 SILA 40 TXE-2LS
45 104 32 M 42x3 28 145 7 360 224 SIA 45 TXE-2LS
45 104 32 M 42x3 28 145 7 360 224 SILA 45 TXE-2LS
45 104 32 M 45x3 28 165 7 360 224 SI 45 TXE-2LS
45 104 32 M 45x3 28 165 7 360 224 SIL 45 TXE-2LS
50 114 35 M 45x3 31 160 6 440 270 SIA 50 TXE-2LS
50 114 35 M 45x3 31 160 6 440 270 SILA 50 TXE-2LS
50 114 35 M 52x3 31 195 6 440 270 SI 50 TXE-2LS
50 114 35 M 52x3 31 195 6 440 270 SIL 50 TXE-2LS
60 137 44 M 60x4 39 225 6 695 400 SI 60 TXE-2LS
60 137 44 M 60x4 39 225 6 695 400 SIL 60 TXE-2LS
60 137 44 M 52x3 39 175 6 695 400 SIA 60 TXE-2LS
60 137 44 M52x3 39 175 6 695 400 SILA 60 TXE-2LS
70 162 49 M 56x4 43 200 6 880 530 SIA 70 TXE-2LS
70 162 49 M 56x4 43 200 6 880 530 SILA 70 TXE-2LS
70 162 49 M 72x4 43 265 6 880 530 SI 70 TXE-2LS
70 162 49 M 72x4 43 265 6 880 530 SIL 70 TXE-2LS
80 182 55 M 64x4 48 230 5 1140 655 SIA 80 TXE-2LS
80 182 55 M 64x4 48 230 5 1140 655 SILA 80 TXE-2LS
80 182 55 M 80x4 48 295 5 1140 655 SI 80 TXE-2LS
80 182 55 M80x4 48 295 5 1140 655 SIL 80 TXE-2LS



High Speed and Low Noise Spherical Plain bearing M64*4 Excavato SI80ES 80x182x55mm 1

High Speed and Low Noise Spherical Plain bearing M64*4 Excavato SI80ES 80x182x55mm 2
