FAG B71824E.TPA.P4 Single Row Angular Contact Ball Bearing High Precision
  • name
  • name

FAG B71824E.TPA.P4 Single Row Angular Contact Ball Bearing High Precision

MOQ: 1 pcs
Price: negotiation
Standard Packaging: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Period: 3 working days after received your payment
Payment Method: T/T or western Union or PayPal
Supply Capacity: 3,000pcs per month
Details Information
Product Description
Detail Information
Place of Origin
Germany
Brand Name
FAG or other brand
Certification
ISO
Model Number
B71824E.TPA.P4
Product Name:
B71824E.TPA.P4
ID:
120mm
OD:
165mm
Height:
22mm
Cage Type:
Phenolic Resin
Contact Angle:
25 Degree
Precision Rate:
P4
Stock Quantity:
25 Piece
Highlight:

Angular Contact Bearing

,

Steel Cage Bearing

Product Description



FAG B71824E.TPA.P4 Single Row Angular Contact Ball Bearing High Precision



1. Specification:



Specification of Bearing

Bearing type

Angular contact ball bearing

Brand type

 F A G

Precision Rating

Italy

Vibration

Z1V1,Z2V2,Z3V3

Durability

Long

Material

Bearing steel

Certificate

ISO9001:2008

Main market abroad

South America,USA,European,Southeast

Asia,Middle East

Packaging Details

1. inner:polyester bag outer:paper carton

2. industrial standard packing

3. Poly bag+box+packing

4. 4. as your order

Delivery Time

Within 3-5 days after receiving

your subscription

Payment Terms

T/T,Western Union,Paypal



2. Feature:

(1) Singe row

(2) P4 precision

(3) Universal matching type
(4) Phenolic resin cage

(5) 25 degree contact angle



3. Anguar contact contact angle:

AC: 25 degree

B: 40 degree

C: 15 degree

A: 30 degress



4. Matching type:

DB: back to back

DF: face to face

DT: Series connect

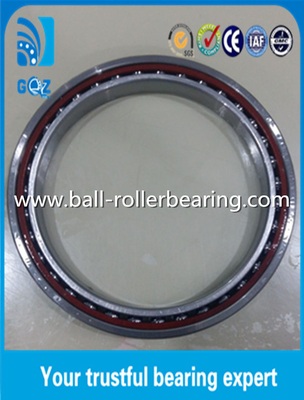

5. Bearing Picture:

FAG B71824E.TPA.P4 Single Row Angular Contact Ball Bearing High Precision 0

FAG B71824E.TPA.P4 Single Row Angular Contact Ball Bearing High Precision 1



6. We also supply following angular contact ball bearing:

Designation Principal dimensions Basic load ratings Fatigue load limit Speed ratings Mass
        dynamic static Reference speed Limiting speed
  d D B C C0 Pu
- mm     kN   kN r/min   kg
7200BEP 10 30 9 7,02 3,35 0,14 30000 30000 0,03
7200BECBP 10 30 9 7,02 3,35 0,14 30000 30000 0,03
7201BEP 12 32 10 7,61 3,8 0,16 26000 26000 0,036
7201BECBP 12 32 10 7,61 3,8 0,16 26000 26000 0,036
7201BEGAP 12 32 10 7,61 3,8 0,16 26000 26000 0,036
7301BEP 12 37 12 10,6 5 0,208 24000 24000 0,063
7202BEP 15 35 11 8,84 4,8 0,204 24000 24000 0,045
7202BECBP 15 35 11 9,5 5,1 0,216 26000 26000 0,045
7202BEGAP 15 35 11 9,5 5,1 0,216 26000 26000 0,045
7202BEGBP 15 35 11 9,5 5,1 0,216 26000 26000 0,045
7302BEP 15 42 13 13 6,7 0,28 20000 20000 0,081
7302BECBP 15 42 13 13 6,7 0,28 20000 20000 0,081
7203BEP 17 40 12 10,4 5,5 0,236 20000 20000 0,064
7203BEY 17 40 12 11,1 6,1 0,26 20000 20000 0,064
7203BECBP 17 40 12 11 5,85 0,25 22000 22000 0,064
7203BEGAP 17 40 12 11 5,85 0,25 22000 22000 0,064
7203BECBM 17 40 12 11 5,85 0,25 22000 22000 0,07
7303BEP 17 47 14 15,9 8,3 0,355 19000 19000 0,11
7303BECBP 17 47 14 15,9 8,3 0,355 19000 19000 0,11
7303BEGAP 17 47 14 15,9 8,3 0,355 19000 19000 0,11
7204BEP 20 47 14 13,3 7,65 0,325 18000 18000 0,11
7204BECBM 20 47 14 13,3 7,65 0,325 18000 19000 0,11
7204BECBY 20 47 14 14 8,3 0,355 18000 18000 0,11
7204BECBP 20 47 14 14,3 8,15 0,345 19000 19000 0,11
7204BEGAP 20 47 14 14,3 8,15 0,345 19000 19000 0,11
7204BEGBP 20 47 14 14,3 8,15 0,345 19000 19000 0,11
7304BEP 20 52 15 17,4 9,5 0,4 16000 16000 0,14
7304BEY 20 52 15 19 10,4 0,44 16000 16000 0,15
7304BECBY 20 52 15 19 10,4 0,44 16000 16000 0,15
7304BECBP 20 52 15 19 10 0,425 18000 18000 0,14
7304BEGAP 20 52 15 19 10 0,425 18000 18000 0,14
7304BEGBP 20 52 15 19 10 0,425 18000 18000 0,14
7304BECBPH 20 52 15 19 10 0,425 18000 18000 0,14
7304BECBM 20 52 15 19 10 0,425 18000 18000 0,15
7205BEP 25 52 15 14,8 9,3 0,4 15000 15000 0,13
7205BEY 25 52 15 15,6 10,2 0,43 15000 15000 0,13
7205BECBY 25 52 15 15,6 10,2 0,43 15000 15000 0,13
7205BEGAY 25 52 15 15,6 10,2 0,43 15000 15000 0,13



If you want to buy this bearing,just contact us!
