25 Degree Phenolic Resin Cage Angular Contact Ball Bearing FAG B71832E.TPA.P4

I'm Online Chat Now
Certification
China Wuxi Guangqiang Bearing Trade Co.,Ltd certification
Received bearings. Very impressed with the quality. Warm and thoughtful service,fast shipment.I will keep doing business with your trustworthy company

—— John Grafton

More than 3 years business cooperation with your company has brought us a lots of benefits.We attain many local customers gratitude and supports.Thank

—— Mohammad EL ASSWAD

We have tested the bearing 23082 and I am so satisfied with the bearing quality.Good package and best price have given a big favor in our business.

—— Minwoo, Kwon

25 Degree Phenolic Resin Cage Angular Contact Ball Bearing FAG B71832E.TPA.P4

25 Degree Phenolic Resin Cage Angular Contact Ball Bearing FAG B71832E.TPA.P4
25 Degree Phenolic Resin Cage Angular Contact Ball Bearing FAG B71832E.TPA.P4 25 Degree Phenolic Resin Cage Angular Contact Ball Bearing FAG B71832E.TPA.P4

Large Image :  25 Degree Phenolic Resin Cage Angular Contact Ball Bearing FAG B71832E.TPA.P4 Get Best Price

Product Details:
Place of Origin: Germany
Brand Name: FAG or other brand
Certification: ISO
Model Number: B71832E.TPA.P4
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union or PayPal
Supply Ability: 3,000pcs per month
Detailed Product Description
Product Name: B71824E.TPA.P4 ID: 160mm
OD: 200mm Height: 20mm
Cage Type: Phenolic Resin Rotating Speed(Oil): 8000 Rpm
Rotating Speed(Grease): 5000 Rpm Stock Quantity: 25 Piece
High Light:

Angular Contact Bearing

,

Steel Cage Bearing



25 Degree Phenolic Resin Cage Angular Contact Ball Bearing FAG B71832E.TPA.P4



1. Specification:



Specification of Bearing

Bearing type

Angular contact ball bearing

Brand type

FAG

Precision Rating

Germany

Vibration

Z1V1,Z2V2,Z3V3

Durability

Long

Material

Bearing steel

Certificate

ISO9001:2008

Main market abroad

South America,USA,European,Southeast

Asia,Middle East

Packaging Details

1. inner:polyester bag outer:paper carton

2. industrial standard packing

3. Poly bag+box+packing

4. 4. as your order

Delivery Time

Within 3-5 days after receiving

your subscription

Payment Terms

T/T,Western Union,Paypal



2. Feature:

(1) Singe row

(2) P4 precision

(3) Universal matching type
(4) Phenolic resin cage

(5) 25 degree contact angle

(6) Steel balls

(7) Quick delivery



3. Anguar contact contact angle:

AC: 25 degree

B: 40 degree

C: 15 degree

A: 30 degress



4. Matching type:

DB: back to back

DF: face to face

DT: Series connect

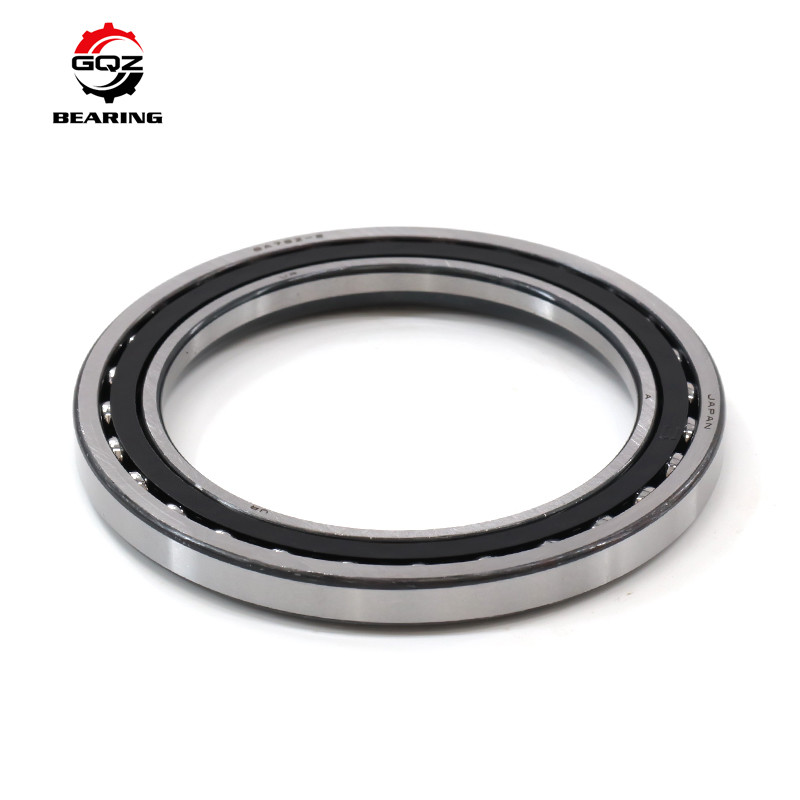

5. Bearing Picture:

25 Degree Phenolic Resin Cage Angular Contact Ball Bearing FAG B71832E.TPA.P4 0

25 Degree Phenolic Resin Cage Angular Contact Ball Bearing FAG B71832E.TPA.P4 1



6. We also supply following angular contact ball bearing:

Designation Principal dimensions Basic load ratings Fatigue load limit Speed ratings Mass
        dynamic static Reference speed Limiting speed
  d D B C C0 Pu
- mm     kN   kN r/min   kg
7200BEP 10 30 9 7,02 3,35 0,14 30000 30000 0,03
7200BECBP 10 30 9 7,02 3,35 0,14 30000 30000 0,03
7201BEP 12 32 10 7,61 3,8 0,16 26000 26000 0,036
7201BECBP 12 32 10 7,61 3,8 0,16 26000 26000 0,036
7201BEGAP 12 32 10 7,61 3,8 0,16 26000 26000 0,036
7301BEP 12 37 12 10,6 5 0,208 24000 24000 0,063
7202BEP 15 35 11 8,84 4,8 0,204 24000 24000 0,045
7202BECBP 15 35 11 9,5 5,1 0,216 26000 26000 0,045
7202BEGAP 15 35 11 9,5 5,1 0,216 26000 26000 0,045
7202BEGBP 15 35 11 9,5 5,1 0,216 26000 26000 0,045
7302BEP 15 42 13 13 6,7 0,28 20000 20000 0,081
7302BECBP 15 42 13 13 6,7 0,28 20000 20000 0,081
7203BEP 17 40 12 10,4 5,5 0,236 20000 20000 0,064
7203BEY 17 40 12 11,1 6,1 0,26 20000 20000 0,064
7203BECBP 17 40 12 11 5,85 0,25 22000 22000 0,064
7203BEGAP 17 40 12 11 5,85 0,25 22000 22000 0,064
7203BECBM 17 40 12 11 5,85 0,25 22000 22000 0,07
7303BEP 17 47 14 15,9 8,3 0,355 19000 19000 0,11
7303BECBP 17 47 14 15,9 8,3 0,355 19000 19000 0,11
7303BEGAP 17 47 14 15,9 8,3 0,355 19000 19000 0,11
7204BEP 20 47 14 13,3 7,65 0,325 18000 18000 0,11
7204BECBM 20 47 14 13,3 7,65 0,325 18000 19000 0,11
7204BECBY 20 47 14 14 8,3 0,355 18000 18000 0,11
7204BECBP 20 47 14 14,3 8,15 0,345 19000 19000 0,11
7204BEGAP 20 47 14 14,3 8,15 0,345 19000 19000 0,11
7204BEGBP 20 47 14 14,3 8,15 0,345 19000 19000 0,11
7304BEP 20 52 15 17,4 9,5 0,4 16000 16000 0,14
7304BEY 20 52 15 19 10,4 0,44 16000 16000 0,15
7304BECBY 20 52 15 19 10,4 0,44 16000 16000 0,15
7304BECBP 20 52 15 19 10 0,425 18000 18000 0,14
7304BEGAP 20 52 15 19 10 0,425 18000 18000 0,14
7304BEGBP 20 52 15 19 10 0,425 18000 18000 0,14
7304BECBPH 20 52 15 19 10 0,425 18000 18000 0,14
7304BECBM 20 52 15 19 10 0,425 18000 18000 0,15
7205BEP 25 52 15 14,8 9,3 0,4 15000 15000 0,13
7205BEY 25 52 15 15,6 10,2 0,43 15000 15000 0,13
7205BECBY 25 52 15 15,6 10,2 0,43 15000 15000 0,13
7205BEGAY 25 52 15 15,6 10,2 0,43 15000 15000 0,13



If you want to buy this bearing,just contact us!
