Rubber Sealed Sprag Backstop one way bearing clutch CSK25P One Keyway

1 pcs
MOQ
negotiation
Price
Rubber Sealed Sprag Backstop one way bearing clutch CSK25P One Keyway
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: CSK25P
Inside Diameter: 25mm
Outside Diameter: 52mm
Thickness: 20mm
Direction: One Way Direction
Application: Motorcycle And So On
Keyway: Each Keyway In Inner Ring And Outer Ring
Packing: Single Packing Box
High Light:

Cam Follower Bearing

,

Metric Needle Bearings

Basic Infomation
Place of Origin: China Jiangsu
Brand Name: GQZ or OEM
Certification: ISO
Model Number: CSK25P
Payment & Shipping Terms
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union or PayPal
Supply Ability: 3,000pcs per month
Product Description



Rubber Sealed Sprag Backstop one way bearing clutch CSK25P One Keyway



1. Specification:

Metric Series Inch series Introduction
AXK TC Thrust needle roller and cage assemblies, single cage
NTB NTA Thrust needle roller and cage assemblies, double cage
AXW   Thrust needle roller bearings with centering
AX   Thrust needle roller bearings with washer
K811,K812,K893,K874,K894   Thrust roller and cage assembly
GS811,812,893,874,894   Thrust race, outer surface grinding
WS811,812,893,874,894   Thrust shaft ring, the inner surface grinding
LS   Thrust washers, economical, no grinding inner and outer surfaces
ZS   Center washer



AS

TWA,TWAB,TWC,TWD; Thrust washer
TRA,TRB,TRC,TRD Thrust washer

2. Feature:

(1) One way direction

(2) With keyway in the inner ring

(3) Rubber seals on both sides
(4) Competitive price

(5) Good qualtiy

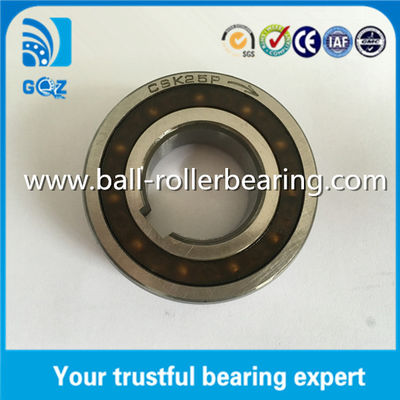

3. Bearing Picture:

Rubber Sealed Sprag Backstop one way bearing clutch CSK25P One Keyway 0

Rubber Sealed Sprag Backstop one way bearing clutch CSK25P One Keyway 1



4. We also supply following needle roller bearings:

Model Dimension (mm) Rating Torque
(Nm)
W.G(Kg) dimension (mm)
ID OD T H h d1 D1
CSK8 8 22 9 2.5 0.015 3 3 8.5 21.5
CSK12 12 32 10 7.5 0.04 2 4 13.2 31.4
CSK15 15 35 11 13.5 0.05 2 5 16.2 34.4
CSK17 17 40 12 24.5 0.07 2 5 18.2 39
CSK20 20 47 14 40 0.11 3 6 21.6 45.5
CSK25 25 52 15 68 0.14 6 8 27 50
CSK30 30 62 16 110 0.21 6 8 32 60
CSK35 35 72 17 140 0.3 8 10 37.4 69.5
CSK40 40 80 22 260 0.5 10 12 43.2 77
CSK305 25 62 17 120 0.25 6 8 27 60
CSK306 30 72 19 160 0.38 6 8 32 69.5
CSK12-2RS 12 32 14 7.5 0.05 2 4 13.2 31.4
CSK15-2RS 15 35 16 13.5 0.07 2 5 16.2 34.4
CSK17-2RS 17 40 17 24.5 0.09 2 5 18.2 39
CSK20-2RS 20 47 19 40 0.145 3 6 21.6 45.5
CSK25-2RS 25 52 20 68 0.175 6 8 27 50
CSK30-2RS 30 62 21 110 0.27 6 8 32 60
CSK35-2RS 35 72 22 140 0.4 8 10 37.4 69.5
CSK40-2RS 40 80 27 260 0.6 10 12 43.2 77
