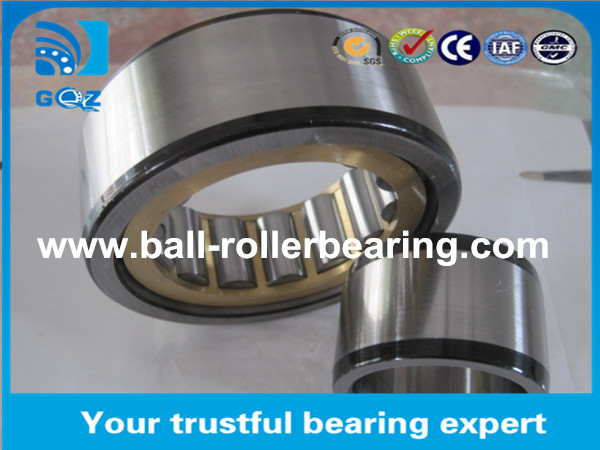

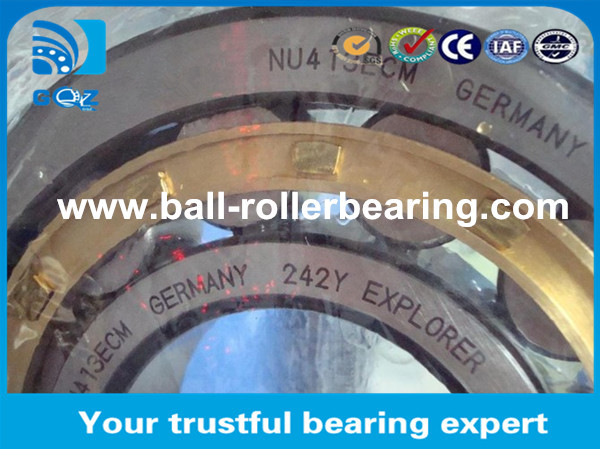

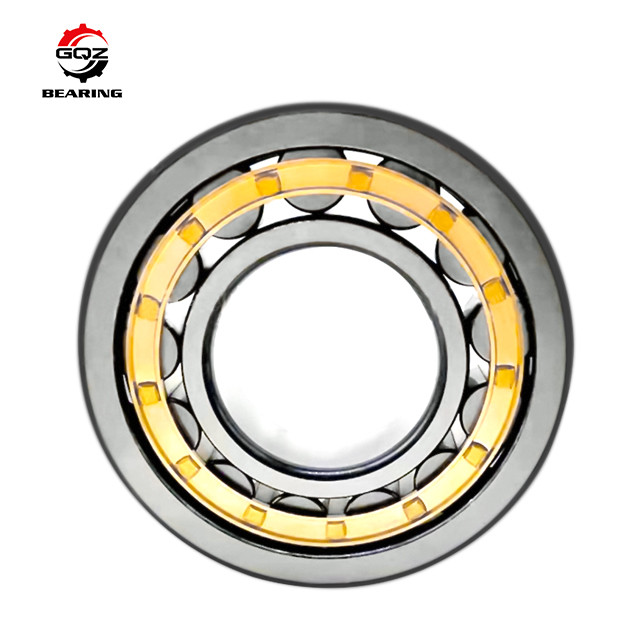

Copper Cage Cylindrical Roller Bearing NU413ECM abec 3 bearings High Temperature
Technical Parameters of Cylindrical Roller Bearing NU413ECM
d: 65mm D:160mm B:37mm
Cr: 170kN Cor:178kN Weight:4kg
Grease Rate:3800 r/min
Oil Lubrication Rate: 4800 r/min
Reference Types of Cylindrical Roller Bearing NU413ECM
| Type | d | D | W | Cr | Cor | Grease Rate | Oil Lubrication Rate | Weight |
| (mm) | (mm) | (mm) | (kN) | (kN) | (r/min) | (r/min) | (kg) | |
| NU413 | 65 | 160 | 37 | 170 | 178 | 3800 | 4800 | 4 |
| NJ413 | 65 | 160 | 37 | 170 | 178 | 3800 | 4800 | 4 |
| NUP413 | 65 | 160 | 37 | 170 | 178 | 3800 | 4800 | 4 |
| NH413 | 65 | 160 | 37 | 170 | 178 | 3800 | 4800 | 4 |
| N413 | 65 | 160 | 37 | 170 | 178 | 3800 | 4800 | 4 |
Applicance of Cylindrical Roller Bearing NU413ECM
Suitable for large and medium-sized motors, rolling stock, machine tool, spindles, internal combustion engines, generators, gas turbine, gearbox, rolling mill, vibrating screen and hoisting and conveying machinery etc.
Certification of Cylindrical Roller Bearing NU413ECM
1. BV;
2. ISO:9001;
3. UKAS;
4. IAF;
5. SGS
Notice of Cylindrical Roller Bearing NU413ECM
Customized the marks based on your requirements.
Choose the different package to your needs.
NU series cylindrical roller bearing NU413
|
Model
|
NU413 |
|---|---|
|
Old model
|
32413 |
|
Size
|
65x160x37mm |
| Weight | 4kg |
| Cr(kN) | 170 |
| Cor(kN) | 178 |
| Grease lubrication speed | 3800r/min |
| ubricating oil speed | 4800r/min |
|
Brand
|
LBR and so on |
| Guarantee | one year(According to the material) |
|
Material
|
chrome steel/Stainless steel/ |
|
Precision
|
p0/p6/p5(ABEC-1/ABEC-3/ABEC-5) |
|
Vibration
|
zv1,zv2,zv3 |
|
Bearing windage
|
C0.C2.C3.C4.C5 |
|
Grease
|
SRL alvania,SRI2 chevron,Ordinary grease and so on. |
|
Application
|
Mainly used in automobile, electrical equipment, instrument, building machinery, rolling stock agricultural machinery and various specialized machineries,machine spindle application. |
|
Package
|
general single bag+single box,Tube or according to your demand |
| Service | OEM,CUSTOME MADE |
| Loading port | Guangzhou,shanghai,Tianjin or according to your decision |
|
Terms of payment
|
T/T,Western Union,Paypal(Small account) |
Cylindrical roller bearing 6 kinds of type: bearing
1) Single Row Cylindrical Roller Bearings without inner Ring rib (NU type)
2) bearing bearing ring rib( NJ type)
3) Single Row Cylindrical Roller Bearings with single inner ring rib and loose rib
(NUP type)
4) Single Row Cylindrical Roller Bearings without out ring rib ( N type)
5) Single Row Cylindrical Roller Bearings with single inner ring rib and thrust separate ring(NJ+HJ type)
6) Single Row Cylindrical Roller Bearings with single out ring rib (NF type
