35TAC72B BS3572TN1 BSB035072-T P5 Bearing Ball Screw Support Bearings BSD3572 MM35BS72
Detail information of the ball screw support bearing
| Brand | NSK/GQZOEM | ||
| Item | 35TAC75B | ||
| Bearing seals | OPen | ||
| Material | GCr15 steel,carbon steel,stainless steel etc. | ||
| Precision | P0,P2,P5,P6,P4 | ||
| Clearance | C0,C2,C3,C4,C5 | ||
| Bore size | 35 mm | outer diameter | 72mm |
| Cage type | brass;steel plate,nylon,aluminium alloy etc. | ||
| Seal type | open,sealed(ZZ,RS,2RS) | ||
| Ball Bearing Feature | Long-life with high quality | ||
| Low-nosie with strict controlling the quality of Angular Contact Ball bearing | |||
| High-load by the advanced high-technical design | |||
| Competitive price, which has the most valuable | |||
| OEM service offered, to meet the customers'requirements | |||
| Application | gearbox,auto,reduction box,engine machinery,mining machinery,bicycles,etc | ||
| Bearing Package | Pallet,wooden case,commercial packaging or as customers' requirement. | ||
| Price terms | FOB,CFR,CIF,EXW | delivery time | 3-5 days acccording the quantity |
| MODEL | DIMENSION/MM | MODEL | DIMENSION/MM |
| 17TAC47B | 17*47*15 | 30TAC20X+L | 30*62*34 |
| 20TAC47B | 20*47*15 | 40TAC20X+L | 40*68*36 |
| 25TAC62B | 25*62*15 | 45TAC20X+L | 45*75*38 |
| 30TAC62B | 30*62*15 | 50TAC20X+L | 50*80*38 |
| 35TAC72B | 35*72*15 | 55TAC20X+L | 55*90*44 |
| 40TAC72B | 40*72*15 | 60TAC20X+L | 60*95*44 |
| 40TAC90B | 40*90*20 | 65TAC20X+L | 65*100*44 |
| 45TAC75B | 45*75*15 | 70TAC20X+L | 70*110*48 |
| 45TAC100B | 45*100*20 | 75TAC20X+L | 75*115*48 |
| 50TAC100B | 50*100*20 | 80TAC20X+L | 80*125*54 |
| 55TAC100B | 55*100*20 | 85TAC20X+L | 85*130*54 |
| 55TAC120B | 55*120*20 | 90TAC20X+L | 90*140*60 |
| 60TAC120B | 60*120*20 | 95TAC20X+L | 95*145*60 |
| 180TAC20D+L | 180*280*120 | 100TAC29X+L | 100*140*48 |
| 190TAC29D+L | 190*260*84 | 100TAC20X+L | 100*150*60 |
| 190TAC20D+L | 190*290*120 | 105TAC29X+L | 105*145*48 |
| 200TAC29D+L | 200*280*96 | 105TAC20X+L | 105*160*66 |
| 200TAC20D+L | 200*310*132 | 110TAC29X+L | 110*150*48 |
Angular contact ball bearing:
Angular contact ball bearings are particularly suitable for carrying combined (axial and radial) loads. Sometimes, they also can carry pure axial load and operate in higher speed. Under radial load, axial component force will be produced which must be counteracted. So the bearings are normally adjust against a second bearing.
Application:
Application: Angular Contact Ball Bearing is widely used in cars, compressors, construction, electric motors, food industry, home appliances etc. As a rolling element, it turns the world.

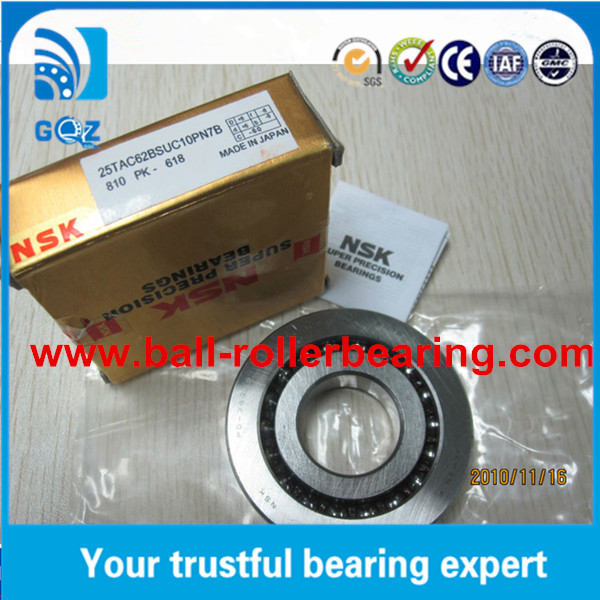

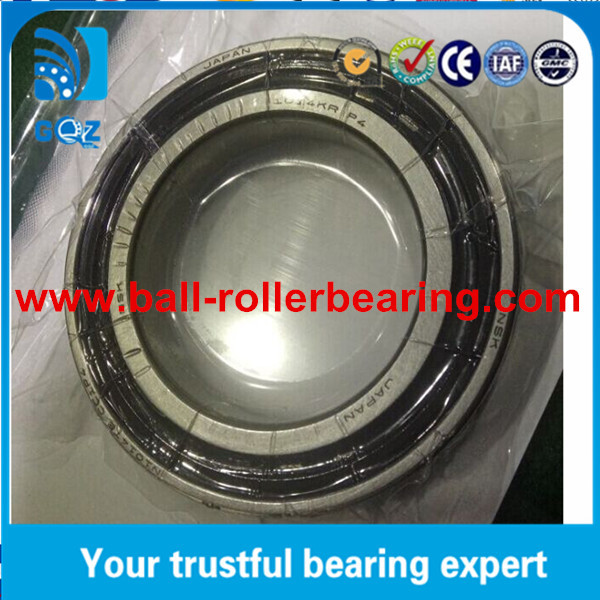

Pictures show:
