competitive price nsk FH502510 thrust needle roller bearing

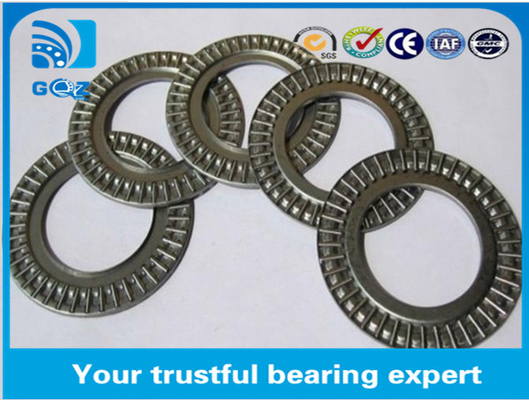

The Brief Description of Thrust Needle Roller Bearings:
Thrust needle roller bearings are a type of needle roller bearing with a cage.They are compact and offer large load capacity and high limiting speed.The two-piece cage,consisting of precision-pressed steel,guides the rollers accurately.The surface-hardened cage offers superior wear resistance and strength.
Features
1.compact design
2.wear resistant and highly rigid
3.economical
4.easy handling
A snapshot of thrust needle roller bearing FH502510
| Bearing model | FH502510 |
| Size | 25.6*42.6*3.51mm |
| Basic Load Ratings | Cr:8650N Cor:41000N |
| Quality standard | passed ISO 9001:2008 standard |
| Bearing Precision | P0,P6,P5 ,P4 |
| Delivert Date | Normally ready goods and stock within 3-5 days |
Bearing types
For inch bearings,the dimension number is expressed in integers in units of 1/16.Raceway washers are available for use when the raceway surface cannot be hardened by heat treatment and ground to the proper finish.
Table 1 Bearing Shape
| Code | Description |
| FNTA |
Cage and roller assemblies for thrust needle roller bearings |
| ZNTA | |
| NTA | |
| FA | |
| FG(K Series) |
Integrated type with raceway washer Raceway washer,JK type(with outer flange) |
| FG(F Series) |
Integrated type with raceway washer Raceway washer JF type (with inner flange) |
| FH |
Integrated type with raceway washer Raceway washer, JK type + JF type |
Types of raceway washers used for cage and roller assemblies in thrust needle roller bearings are shown .
Talbe 2 Raceway washers for thrust needle roller bearings
| Shape symbol | Description |
|
FTRA,FTRB,FTRC,FTRD, FTRE,TRA,TRB,TRC,TRD,TRE, JDU, JD |
Raceway washers without flange |
The specification number:
AKX Series Thrust Needle Roller Bearings Catalogue:
| Shaft Diameter | Bearing Designation | Boudary Dimensions | Basic Load Rating | Limiting Speed | Besring | |||||
| d | D | Dw | Cr Dynamic | Cor Static | Oil | Washer | Shaft Loc.Washer | Washer Shaft | ||
| mm | mm | N | rpm | |||||||
| 4 | AXK0414TN | 4 | 14 | 2 | 4380 | 7500 | 18000 | AS 0414 | - | - |
| 5 | AXK0515TN | 5 | 15 | 2 | 4680 | 9100 | 17000 | AS 0515 | - | - |
| 6 | AXK0619TN | 6 | 19 | 2 | 6740 | 15400 | 16000 | AS 0619 | - | - |
| 8 | AXK0821TN | 8 | 21 | 2 | 7750 | 19000 | 15000 | AS 0821 | - | - |
| 10 | AXK1024 | 10 | 24 | 2 | 9150 | 24500 | 14000 | AS 1024 | - | - |
| 12 | AXK1226 | 12 | 26 | 2 | 9860 | 28600 | 13000 | AS 1226 | - | - |
| 15 | AXK1528 | 15 | 28 | 2 | 11200 | 35500 | 11000 | AS 1528 | GS 811 02 | WS 811 02 |
| 17 | AXK1730 | 17 | 30 | 2 | 11800 | 38600 | 10000 | AS 1730 | GS 811 03 | WS 811 03 |
| 20 | AXK2035 | 20 | 35 | 2 | 12900 | 45600 | 8500 | AS 2035 | GS 811 04 | WS 811 04 |
| 25 | AXK2542 | 25 | 42 | 2 | 13800 | 67800 | 7000 | AS 3542 | GS 811 05 | WS 811 05 |
| 30 | AXK3047 | 30 | 47 | 2 | 15600 | 69500 | 6000 | AS 3047 | GS 811 06 | WS 811 06 |
| 35 | AXK3552 | 35 | 52 | 2 | 16900 | 80100 | 5500 | AS 3552 | GS 811 07 | WS 811 07 |
| 40 | AXK4060 | 40 | 60 | 3 | 27500 | 113500 | 4700 | AS 4060 | GS 811 08 | WS 811 08 |
| 45 | AXK4565 | 45 | 65 | 3 | 29050 | 127600 | 4300 | AS 4565 | GS 811 09 | WS 811 09 |
| 50 | AXK5070 | 50 | 70 | 3 | 31500 | 138000 | 3900 | AS 5070 | GS 811 10 | WS 811 10 |
| 55 | AXK5578 | 55 | 78 | 3 | 37400 | 185000 | 3500 | AS 5578 | GS 811 11 | WS 811 11 |
| 60 | AXK6085 | 60 | 85 | 3 | 43900 | 232500 | 3200 | AS 6085 | GS 811 12 | WS 811 12 |
| 65 | AXK6590 | 65 | 90 | 3 | 45800 | 254600 | 3000 | AS 6590 | GS 811 13 | WS 811 13 |
| 70 | AXK7095 | 70 | 95 | 4 | 53600 | 254400 | 2900 | AS 7095 | GS 811 14 | WS 811 14 |
| 75 | AXK75100 | 75 | 100 | 4 | 54500 | 264600 | 2700 | AS 75100 | GS 811 15 | WS 811 15 |
| 80 | AXK80105 | 80 | 105 | 4 | 55600 | 278500 | 2600 | AS 80105 | GS 811 16 | WS 811 16 |
| 85 | AXK85110 | 85 | 110 | 4 | 57500 | 28800 | 2400 | AS 85110 | GS 811 17 | WS 811 17 |
| 90 | AXK90120 | 90 | 120 | 4 | 72500 | 401000 | 2300 | AS 90120 | GS 811 18 | WS 811 18 |
| 100 | AXK100135 | 100 | 135 | 4 | 90500 | 559500 | 2000 | AS 100135 | GS 811 20 | WS 811 20 |
| 110 | AXK110145 | 110 | 145 | 4 | 96500 | 617500 | 1900 | AS 110145 | GS 811 22 | WS 811 22 |
| 120 | AXK120155 | 120 | 155 | 4 | 101500 | 679600 | 1700 | AS 120155 | GS 811 24 | WS 811 24 |
| 130 | AXK130170 | 130 | 170 | 5 | 132400 | 838900 | 1600 | AS 130170 | GS 811 28 | WS 811 26 |
| 140 | AXK140180 | 140 | 180 | 5 | 137200 | 899600 | 1500 | AS 140180 | GS 811 30 | WS 811 28 |
| 150 | AXK150190 | 150 | 190 | 5 | 142800 | 959000 | 1400 | AS 150190 | GS 811 32 | WS 811 30 |
| 160 | AXK160200 | 160 | 200 | 5 | 147600 | 1015000 | 1300 | AS 160200 | GS 811 32 | WS 811 32 |
