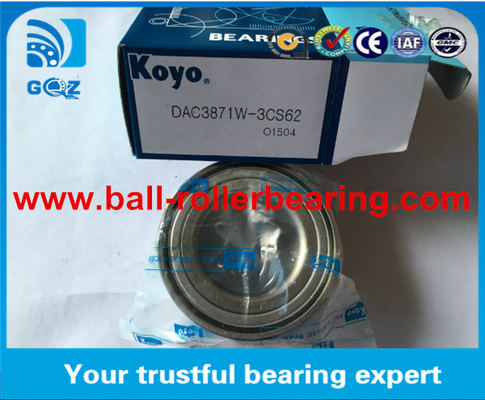

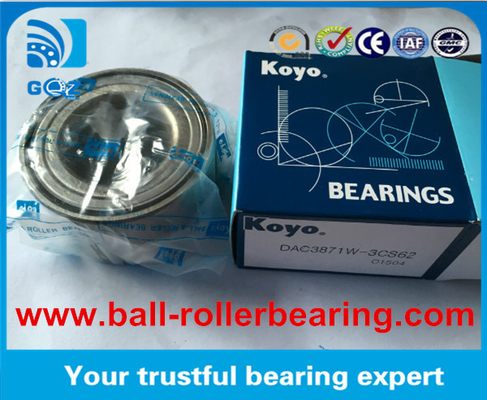

KOYO Long life low noise DAC3871W-3CS62 38bwd09a AUTO motor vehicle wheel HUB bearings DAC38710033/30
The Brief Description of Wheel Hub Bearings:
The first generation wheel bearing is a double row angular contact bearing components.
The second generation wheel bearing have an outer raceway for the bearing retainer flange , the bearing sleeve may simply be fixed with a nut on the axle. Making the car maintenance becomes easy.
The third generation wheel hub bearing units are used bearing unit and anti-lock braking system ABS compatible . Wheel hub unit designed with inner flange and outer flange, bolted flange on the drive shaft , the entire outer flange bearings mounted together
The fourth generation hub bearing unit is the CVJ and bearing made of a whole, to solve the prior art because the hub and the constant velocity joint integrated structure makes wheel size increases caused by increased weight disadvantage . Features are: no need to adjust the bearing assembly clearance , bearing assembly process more rational, lighter volume decreases, disposable after use almost permanently fitted grease , reduced the overall cost of production, more conducive to the massive popularity.
Features of wheel bearing automobile :
1- Low-noise, high-speed, suitable for the motor bearings and automotive bearings.
The suitable lubricant in accordance with the using environments of the bearings or the customer's requirements .
2- Appropriate radial clearance in accordance with the using environments of the bearings or the customer's requirements .
3- All products are made from high quality steel and have the characteristics of wear-resistant and strong high -loading capacity.
4- Auto Bearing is widely used in many applications, but the most common application is used in cars. All parts have been calculated by computers to avoid unnecessary weight to our auto bearing. HHYG also accept custom orders. Our team composed of professionally trained engineers will help our clients to make their designs come true!
Specifications of KOYO DAC3871W-3CS62 wheel bearings:
Automobile KOYO car wheel bearings DAC3871W-3CS62 KOYO Feature
Characteristics of DAC3871W-3CS62 KOYO car wheel bearings:
l Less energy consumption.
l Durable seals and couping life.
l Less vibration and noise.
l Super finished raceways.
Automotive wheel hub bearing DAC3871W-3CS62 KOYO list:
| Model No. | Size (mm) |
| 311443 | 40*72*37 |
| 566719 | 40*72*37 |
| DAC407440 | 40*74*40 |
| 311396B | 39*72*37 |
| 540733/0868 | 39*68*37 |
| 397439 | 39*74*39 |
| 559529 | 34*66*37 |
| DAC3870DW | 38*70*38 |
| DAC3871 | 38*71*39 |
| BAHB0042 | 35*64*37 |
| 40BWD12 | 40*74*42 |
| 510006 | 43*82*45 |
| 446762B | 35*72*33 |
| FK.FWB01 | 42*82*36 |
| 311315 | 39*68.07*37 |
| DAC4276W | 42*76*35(38) |
| 458439 | 45*84*39 |
| DAC4074-C | 40*74*36 |
| DAC36680033 | 36*68*33 |
| DAC3562 | 35*61.8(62)*40 |
| DAC2858 | 28*58*42 |
| 544307D | 35*66*37 |
| 633313 | 30*60*37 |
| B-35 | 34*64*37 |
| 498448 | 49*84*48 |
