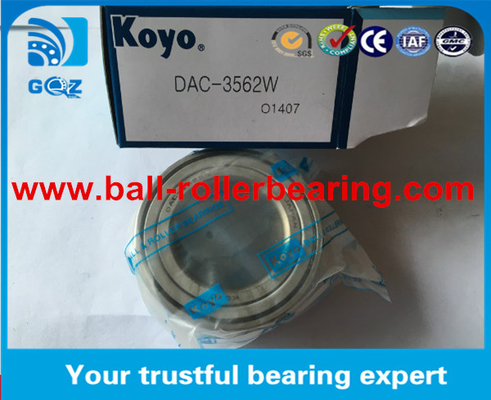

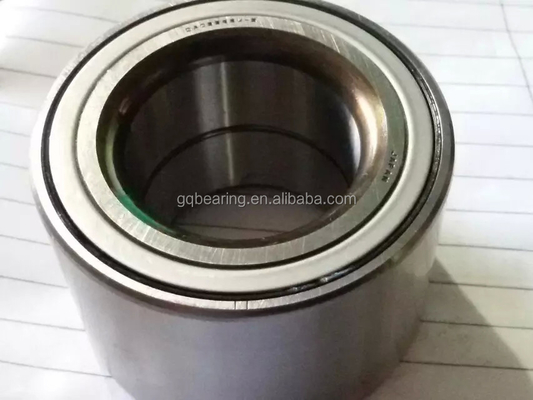

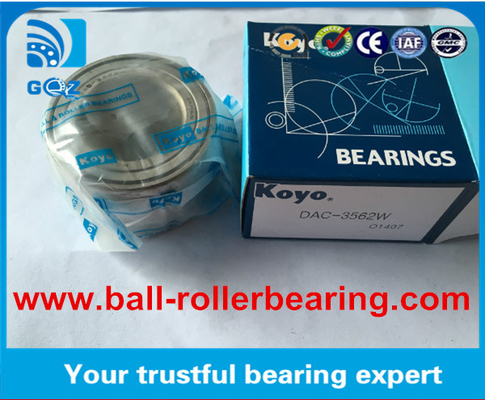

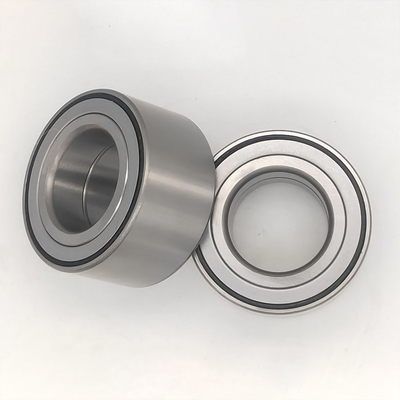

Hub Bearing DAC3562W Auto Wheel Hub Bearing DAC356180040 Bearing 35x61.8x40mm Hyundai Toyota Auto parts bearing
The Brief Description of DAC series bearings:
DAC wheel Hub Bearings are double row angular contact ball bearings. Each wheel hub bearing (wheel bearing) consists of one outer ring, two inner rings.The DAC type auto wheel bearing is a double row angular contact ball bearing incorporating an integral outer ring and two separable inner rings; which is available either with seals or without seals.
Wheel bearings (hub bearing) main role is to load and for the rotation of the hub to provide accurate guidance, both axial load radial load again, is a very important component. Traditional automotive wheel bearing is composed of two tapered roller bearings or ball bearings combination, bearing installation, oiled, and adjust the clearance seals are conducted in automotive production line.
DAC series bearings Hub Bearing DAC3562W details:
| Product | Automotive Wheel Bearing clutch release bearing DAC3562W |
| Precision Rating | ABEC1,ABEC3,ABEC5 |
| Clearance | C0,C2,C3,C4,C5 is available |
| Sealed Cap | Rubber or Metal |
| Paypal | Acceptable |
| OEM | Accept |
| Vibration Level code | V1,V2.V3 |
| Material | Gcr15 |
| Seals Type | ZZ/ZRS.RZ/RS. Open |
| Structure | Anto Bearing |
| Bore Size | 35 MM |
| Outside Diameter | 61.8 MM |
| Thickness | 40 mm |
| Bearing No. | Dimensions(mm) | Weight | Seal | ||||||
| Model | Japan | d | D | B | C | kg | |||
| DAC255200206 | 617546A | 25 | 52 | 20.6 | 20.6 | 0.19 | A | ||
| DAC25520037 | 546467 | 445539AA | 25 | 52 | 37 | 37 | 0.31 | C | |
| DAC27600050 | 513071(BCA) | IR8653(IRB) | 27 | 60 | 50 | 50 | 0.56 | C | |
| DAC28580042 | DAC2858W | 28BW03A | 28 | 58 | 42 | 42 | 0.47 | C | |
| DAC28610042 | DAC286142AW | 28 | 61 | 42 | 42 | 0.56 | D | ||
| DAC30600037 | DAC3060372RS | 30 | 60 | 37 | 37 | 0.42 | C | ||
| DAC30600337 | 529891AB 545312 |
DAC3060W | BA2B 633313C 418780 |
30 | 60.03 | 37 | 37 | 0.45 | C |
| DAC30640042 | DAC3064W2RKBCS28 | 34BWD03ACA78 | 30 | 64 | 42 | 42 | 0.49 | C | |
| DAC30630342 | DAC3063W-1 | 30 | 63.03 | 42 | 42 | 0.54 | D | ||
| DAC30650021 | 522372 543909 |
BB1B 630374/C4 614593 |
30 | 65 | 21 | 21 | 0.27 | A | |
| DAC34620037 | 531910 561447 |
309724 BAHB 311316B |
34 | 62 | 37 | 37 | 0.41 | C | |
| DAC34640034 | DAC3464D | 34 | 64 | 34 | 34 | 0.43 | D | ||
| DAC34640037 | 532066DE 540466B |
DAC3464G1 | 309726DA | 34 | 64 | 37 | 37 | 0.48 | B |
| DAC34660037 | 580400CA | 559529 636114A |
34 | 66 | 37 | 37 | 0.50 | C | |
| DAC34680037 | DAC3468DW | 34 | 68 | 37 | 37 | 0.55 | - | ||
| DAC34680042 | DAC34682RS | 34 | 68 | 42 | 42 | 0.64 | B | ||
| DAC35640037 | DAC3564A-1 | 35 | 64 | 37 | 37 | 0.41 | B | ||
| DAC35650035 | 546238A | DAC3565WCS30 | BT2B 445620B 443952 |
35 | 65 | 35 | 35 | 0.40 | C |
| DAC35660032 | 445980A | 35 | 66 | 32 | 32 | 0.42 | C | ||
| DAC35660033 | BAHB 633676 | 35 | 66 | 33 | 33 | 0.43 | C | ||
