GA Light Preload high Precision Angular Contact Ball Bearing 7008C-2RZ P4 GA

GA Light Preload high Precision Angular Contact Ball Bearing 7008C-2RZ P4 GA

  • High Light

    Metric Ball Bearings

    ,

    Angular Contact Bearing

  • Product Name
    7008C-2RZ P4 GA
  • ID
    40mm
  • OD
    68mm
  • Height
    15mm
  • Preload
    Light Preload
  • Seals
    Rubber Seals On Both Sides
  • Contact Angle
    15 Degree
  • Precision
    P4 Or ABEC 7
  • Place of Origin
    China
  • Brand Name
    GQZ or other brand
  • Certification
    ISO
  • Model Number
    7008C-2RZ P4 GA
  • Minimum Order Quantity
    1 pcs
  • Price
    negotiation
  • Packaging Details
    Packed in carton firstly,and then reinforced with wooden case for outer packing
  • Delivery Time
    3 working days after received your payment
  • Payment Terms
    T/T or western Union or PayPal
  • Supply Ability
    3,000pcs per month

GA Light Preload high Precision Angular Contact Ball Bearing 7008C-2RZ P4 GA

GA Light Preload Super Precision Angular Contact Ball Bearing 7008C-2RZ P4 GA



1. Specification:

Brand: GQZ,NSK,THK,IKO or other brand
Series: High precision angular contact ball bearing
Model No.: 7008C-2RZ P4 GQ
Inside diameter: 40 (mm)
Outer diameter 68 (mm)
Thickness: 15 (mm)
Bearing Feature: Light preload
Stock 1552 piece in stock



2. Feature:

  • Brand: GQZ OEM or other brand
  • Model: CNC spindle router bearing 7008C-2RZ P4 GQ
  • Old Model: CNC spindle router bearing 7008C-2RZ P4 GQ
  • Type: angular contact ball bearings
  • Inside diameter: 40 (mm)
  • Outer diameter:68 (mm)
  • Thickness: 15(mm)
  • Lubrication: grease or oil lubrication
  • Pre-load: light preload
  • Uses: Tandem arrangement
  • Rolling columns: Double
  • Roller type: Spherical roller
  • Sample or spot: the spot
  • Bearing material: stainless bearing steel AISI440 (9Cr18) /chrome steel/GCr15/52100
  • Whether to provide custom processing: Yes
  • Lead time: Within 2 days
  • Transportation type: by express or air

3. Anguar contact contact angle:

AC: 25 degree

B: 40 degree

C: 15 degree

A: 30 degress



4. Matching type:

DB: back to back

DF: face to face

DT: Series connect



5. Preload:

GA: Light

GB: Medium

GC: Heavy

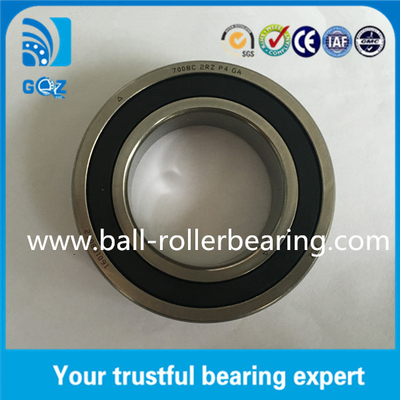

6. Bearing Picture:

GA Light Preload high Precision Angular Contact Ball Bearing 7008C-2RZ P4 GA 0

GA Light Preload high Precision Angular Contact Ball Bearing 7008C-2RZ P4 GA 1



7. We also supply following high precision angular contact ball bearing:

Bearing No.

d(mm)

D(mm)

B(mm)

H708C-2RZ P4 HQ1

8

22

7

H709C-2RZ P4 HQ1

9

24

7

H7000C-2RZ P4 HQ1

10

26

8

H7001C-2RZ P4 HQ1

12

28

8

H7002C-2RZ P4 HQ1

15

32

9

H7003C-2RZ P4 HQ1

17

35

10

H7004C-2RZ P4 HQ1

20

42

12

H7005C-2RZ P4 HQ1

25

47

12

H7006C-2RZ P4 HQ1

30

55

13

H7007C-2RZ P4 HQ1

35

62

14

H7008C-2RZ P4 HQ1

40

68

15

H7009C-2RZ P4 HQ1

45

75

16

H7010C-2RZ P4 HQ1

50

80

16

H7011C-2RZ P4 HQ1

55

90

18

H7012C-2RZ P4 HQ1

60

95

18

H7013C-2RZ P4 HQ1

65

100

18

H7014C-2RZ P4 HQ1

70

110

20

H7015C-2RZ P4 HQ1

75

115

20

H7016C-2RZ P4 HQ1

80

125

22

H7017C-2RZ P4 HQ1

85

130

22

H7018C-2RZ P4 HQ1

90

140

24

H7019C-2RZ P4 HQ1

95

145

24

H7020C-2RZ P4 HQ1

100

150

24



If you want to buy this bearing,just contact us or send email to: tommy@gqbearing.com
