Angular Contact Ball Bearing
Created with Pixso. Bakelite Cage Angular Contact Ball Bearing P4S Precision FAG B7006-C-T-P4S-UL
Bakelite Cage Angular Contact Ball Bearing P4S Precision FAG B7006-C-T-P4S-UL
  • name
  • name
  • name

Bakelite Cage Angular Contact Ball Bearing P4S Precision FAG B7006-C-T-P4S-UL

Brand Name: GQZ or other brand
Model Number: B7006-C-T-P4S-UL
MOQ: 1 pcs
Price: negotiation
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union or PayPal
Detail Information
Product Description
Detail Information
Place of Origin:
Germany
Certification:
ISO
Product Name:
B7006-C-T-P4S-UL
ID:
30mm
OD:
55mm
Thickness:
13mm
Precision:
P4S
Cage Type:
Bakelite Cage
Contact Angel:
15 Degree
Lubrication:
Grease Or Oil
Packaging Details:
Packed in carton firstly,and then reinforced with wooden case for outer packing
Supply Ability:
3,000pcs per month
Highlight:

Metric Ball Bearings

,

Angular Contact Bearing

Product Description

Bakelite Cage P4S Precision FAG B7006-C-T-P4S-UL Angular Contact Ball Bearing



1. Specification:

Brand: GQZ,NSK,THK,IKO or other brand
Series: High precision angular contact ball bearing
Model No.: B7006-C-T-P4S-UL
Inside diameter: 30 (mm)
Outer diameter 55 (mm)
Thickness: 13 (mm)
Bearing Feature: Chrome steel
Stock 1552 piece in stock



2. Feature:

  • Brand: GQZ OEM or other brand
  • Model: CNC spindle router ceramic bearing B7006-C-T-P4S
  • Old Model: CNC spindle router ceramic bearing B7006-C-T-P4S
  • Type: angular contact ball bearings
  • Inside diameter: 30 (mm)
  • Outer diameter:55 (mm)
  • Thickness: 13 (mm)
  • Use features: high speed 30000 r/min
  • Lubrication: grease or oil lubricat ion
  • Pre-load: light preload
  • Arrangement: Universal matching
  • Cage type: bakelite
  • Bearing material: stainless bearing steel AISI440 (9Cr18) /chrome steel/GCr15/52100
  • Whether to provide custom processing: Yes
  • Lead time: Within 2 days
  • Transportation type: by express or air

3. Anguar contact contact angle:

AC: 25 degree

B: 40 degree

C: 15 degree

A: 30 degress



4. Matching type:

DB: back to back

DF: face to face

DT: Series connect

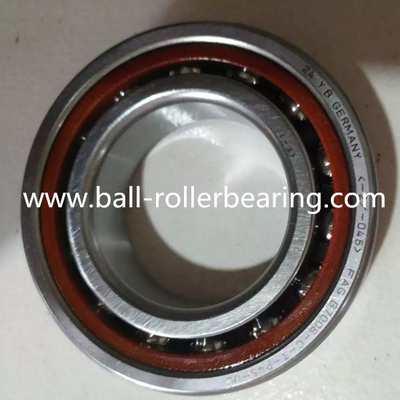

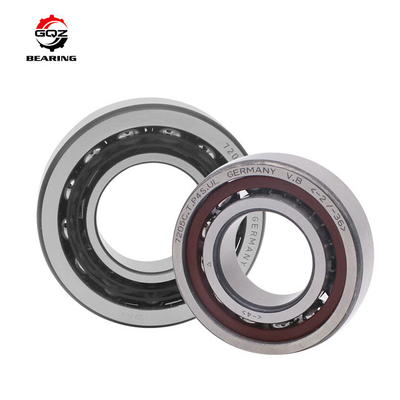

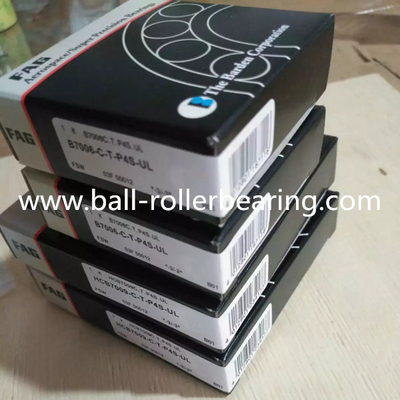

5. Bearing Picture:

Bakelite Cage Angular Contact Ball Bearing P4S Precision FAG B7006-C-T-P4S-UL 0

Bakelite Cage Angular Contact Ball Bearing P4S Precision FAG B7006-C-T-P4S-UL 1



6. We also supply following high precision angular contact ball bearing:

Bearing No.

d(mm)

D(mm)

B(mm)

H708C-2RZ P4 HQ1

8

22

7

H709C-2RZ P4 HQ1

9

24

7

H7000C-2RZ P4 HQ1

10

26

8

H7001C-2RZ P4 HQ1

12

28

8

H7002C-2RZ P4 HQ1

15

32

9

H7003C-2RZ P4 HQ1

17

35

10

H7004C-2RZ P4 HQ1

20

42

12

H7005C-2RZ P4 HQ1

25

47

12

H7006C-2RZ P4 HQ1

30

55

13

H7007C-2RZ P4 HQ1

35

62

14

H7008C-2RZ P4 HQ1

40

68

15

H7009C-2RZ P4 HQ1

45

75

16

H7010C-2RZ P4 HQ1

50

80

16

H7011C-2RZ P4 HQ1

55

90

18

H7012C-2RZ P4 HQ1

60

95

18

H7013C-2RZ P4 HQ1

65

100

18

H7014C-2RZ P4 HQ1

70

110

20

H7015C-2RZ P4 HQ1

75

115

20

H7016C-2RZ P4 HQ1

80

125

22

H7017C-2RZ P4 HQ1

85

130

22

H7018C-2RZ P4 HQ1

90

140

24

H7019C-2RZ P4 HQ1

95

145

24

H7020C-2RZ P4 HQ1

100

150

24



If you want to buy this bearing,just leave a enquiry or send email to: tommy@gqbearing.com
