Brass Cage P4 Precision Full Complement Cylindrical Roller Bearings NSK NN3028MBKRCC1P4
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: NN3028MBKRCC1P4
ID: 140 Mm
OD: 210 Mm
Height: 53 Mm
Cage: Brass Cage
Precision: P4
Bore Type: Cylindrical Bore Hole
Packing: Single Packing Box
High Light:

Cam Follower Bearing

,

axial thrust bearing

Basic Infomation
Place of Origin: Japan
Brand Name: NSK
Certification: ISO9001:2008
Model Number: NN3028MBKRCC1P4
Payment & Shipping Terms
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union or PayPal
Supply Ability: 3,000pcs per month
Product Description

Brass cage P4 Precision NSK NN3028MBKRCC1P4 Full Complement Cylindrical Roller Bearing



1. Specification:

(1) Bearing No.: NN3028MBKRCC1P4

(2) Type:Double-row cylindrical roller bearing with triple-ribbed inner ring

(3) Cage type:roller guide synthetic resin cage;operational temperature limit=220oC

(4) Radial clearance:

CC1: standard clearance for cylindrical bore

CC0: standard clearance for tapered bore

CCG: special radial clearance



2. Feature:

(1) Double row

(2) Brass cage

(3) P4 precision

(4) Standard clearance for cylindrical bore

(5) 1 year's quality guarantee

(6) Competitive price



3. Type of  cylindrical roller bearing

a. single row cylindrical roller bearings, cage, mainly of the NU,NJ,NUP, and N designs.

b. double row cylindrical roller bearings, caged, mainly of the NNU and NN designs.

c. multi-row cylindrical roller bearings, caged.

d. single row full complement cylindrical roller bearings, mainly of the NCF and NJG designs.

e. double row full complement cylindrical roller bearings, mainly of the NNF design.

f.  multi-row full complement cylindrical roller bearings, with four rollers.



4. Series of  cylindrical roller bearing

  1. Types NU, N, NNU, and NN are suitable as free-end bearings.
  2. Types NJ and NF can sustain limited axial loads in one direction.
  3. Types NH and NUP can be used as fixed-end bearings.
  4. NH-type cylindrical roller bearings consist of the NJ-type cylindrical roller bearings and HJ-type
  5.  L-shaped thrust collars.
  6. The inner ring loose rib of an NUPtype cylindrical roller bearing should be mounted so that the
  7.  marked side is on the outside.
  8. The RNU cylindrical roller bearing has an outer ring with double capped edges but does not come with inner ring. Such bearing is the NU cylindrical roller bearings without the inner ring
  9. The RN cylindrical roller bearing has an inner ring with double capped edge but does not come with outer ring

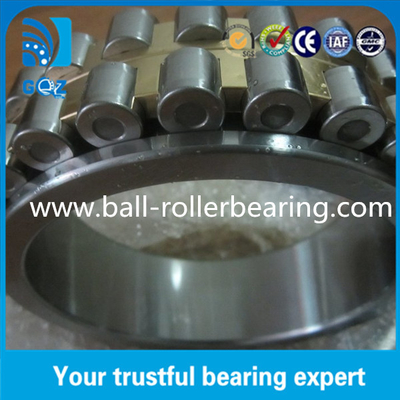

5. Bearing Picture:

Brass Cage P4 Precision Full Complement Cylindrical Roller Bearings NSK NN3028MBKRCC1P4 0

Brass Cage P4 Precision Full Complement Cylindrical Roller Bearings NSK NN3028MBKRCC1P4 1

Brass Cage P4 Precision Full Complement Cylindrical Roller Bearings NSK NN3028MBKRCC1P4 2



6.We also supply following bearings:

Principal dimensions Basic load ratings Fatigue load limit Speed ratings Mass Designation
      dynamic static Reference speed Limiting speed
d D B C 0 u
mm kN kN r/min kg SKF
180 250 52 519 830 76.5 2600 2800 7.9 23936 CC/W33
180 250 52 519 830 76.5 2600 2800 7.65 23936 CCK/W33
180 280 74 883 1250 114 2000 2600 17 23036 CC/W33
180 280 74 884 1270 114 - 560 16.1 23036-2CS5/VT143
180 280 74 883 1250 114 2000 2600 16.5 23036 CCK/W33
180 280 74 884 1270 114 - 560 16.1 23036-2CS5K/VT143
180 280 100 1134 1730 156 1300 2200 22.5 24036 CCK30/W33
180 280 100 1136 1730 156 - 380 23 24036-2CS5/VT143
180 280 100 1134 1730 156 1300 2200 23 24036 CC/W33
180 300 96 1263 1760 160 1700 2200 28 23136 CC/W33
180 300 96 1263 1760 160 1700 2200 27 23136 CCK/W33
180 300 96 1264 1800 160 - 430 26.1 23136-2CS5/VT143
180 300 96 1264 1800 160 - 430 26.1 23136-2CS5K/VT143
180 300 118 1449 2160 196 1100 1600 34 24136 CCK30/W33
180 300 118 1452 2160 196 - 360 34.5 24136-2CS5/VT143
180 300 118 1449 2160 196 1100 1600 34.5 24136 CC/W33
180 320 86 1239 1560 140 - 530 29.5 22236-2CS5/VT143
180 320 86 1237 1560 140 1800 2600 29.5 22236 CC/W33
180 320 86 1239 1560 140 - 530 29 22236-2CS5K/VT143
180 320 86 1237 1560 140 1800 2600 29 22236 CCK/W33
180 320 112 1557 2120 186 1300 1900 38.5 23236 CCK/W33
180 320 112 1557 2120 186 1300 1900 39.5 23236 CC/W33
180 380 126 2077 2450 193 1300 1700 71.5 22336 CC/W33
180 380 126 2077 2450 193 1300 1700 71.5 22336 CCJA/W33VA405
180 380 126 2077 2450 193 1300 1700 71.5 22336 CCJA/W33VA406
180 380 126 2077 2450 193 1300 1700 70 22336 CCK/W33
180 380 126 2077 2450 193 1300 1700 70 22336 CCKJA/W33VA405

If you want to buy this bearing,just contact us!
