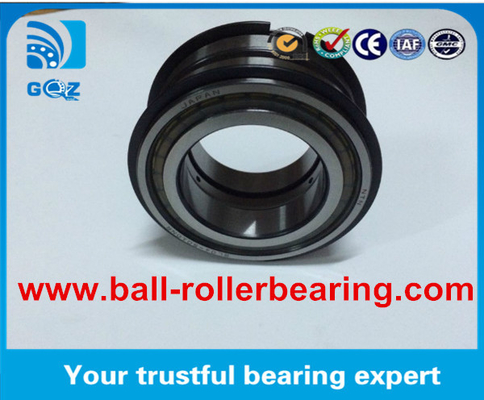

NTN SL045010NR Crane Bearing Cylindrical Roller Bearing SL04 -5010NR Crane bearing SL04 -5010NR
The Brief Description of Crane Bearings:
Crane bearing is Double row full complement cylindrical roller bearings which has solid outer and inner rings together with rib-guided cylindrical rollers. Since these bearings have the largest possible number of rolling elements, they have extremely high radial load carrying capacity, high rigidity and are suitable for particularly compact designs. Due to the kinematic conditions, however, they do not achieve the high speeds that are possible when using cylindrical roller bearings with cage.
Features of Crane Bearings:
1.high load carrying capacity
2.high axial stiffness
3.low friction torque
4.high quality and competitive price
Details of NTN Crane Bearings SL045010NR:
| Item | Specification |
| Type | Crane bearing |
| Dimension(dxDxB) | 50x80x40mm |
| Outer Ring | Chrome steel |
| Inner Ring | Chrome steel |
| Cage | Steel sheet |
| Precision Grade | P0 ( ABEC1 ), P6 ( ABEC-3 ), P5 ( ABEC-5 ) |
| Vibration Grade | Z1V1 Z2V2 Z3V3 |
SL04 Series Cylindrical Roller Bearings Crane Bearings:
SL18 Series Cylindrical Roller Bearings Crane Bearings:
|
Designation bearing No. No. |
Principal dimensions | Basic load ratings | Fatigue load limit | Speed ratings | Weight | |||||
| d | D | B | dynamic | static | Reference speed | Limiting speed | ||||
| C | C0 | Pu | r/min | kg | ||||||
| mm | kN | |||||||||
| SL182220 | 100 | 180 | 46 | 390 | 500 | 55 | 1500 | 2000 | 5.13 | |
| SL182222 | 110 | 200 | 53 | 450 | 590 | 60 | 1500 | 1800 | 7.24 | |
| SL182224 | NCF 2224 V | 120 | 215 | 58 | 512 | 735 | 85 | 1400 | 1700 | 9,05 |
| SL182228 | NCF 2228 V | 140 | 250 | 68 | 693 | 1020 | 114 | 1200 | 1500 | 14,5 |
| SL182230 | NCF 2230 V | 150 | 270 | 73 | 792 | 1180 | 132 | 1100 | 1400 | 18,4 |
| SL182912 | NCF 2912 CV | 60 | 85 | 16 | 55 | 80 | 9,15 | 3600 | 4500 | 0,29 |
| SL182913 | NCF 2913 CV | 65 | 90 | 16 | 58,3 | 88 | 10,2 | 3200 | 4000 | 0,31 |
| SL182914 | NCF 2914 CV | 70 | 100 | 19 | 76,5 | 116 | 13,7 | 3000 | 3800 | 0,49 |
| SL182915 | NCF 2915 CV | 75 | 105 | 19 | 79,2 | 125 | 14,6 | 2800 | 3600 | 0,52 |
| SL182916 | NCF 2916 CV | 80 | 110 | 19 | 80,9 | 132 | 15,6 | 2600 | 3400 | 0,55 |
| SL182917 | NCF 2917 CV | 85 | 120 | 22 | 102 | 166 | 20 | 2600 | 3200 | 0,81 |
| SL182918 | NCF 2918 CV | 90 | 125 | 22 | 105 | 176 | 20,8 | 2400 | 3000 | 0,84 |
| SL182919 | NCF 2919 CV | 95 | 130 | 22 | 114 | 183 | 21,6 | 2200 | 2800 | 0,86 |
| SL182919 | NCF 2920 CV | 100 | 140 | 24 | 128 | 200 | 24,5 | 2200 | 2600 | 1,14 |
| SL182922 | NCF 2922 CV | 110 | 150 | 24 | 134 | 220 | 26 | 1900 | 2400 | 1,23 |
| SL182924 | NCF 2924 CV | 120 | 165 | 27 | 172 | 290 | 34,5 | 1800 | 2200 | 1,73 |
| SL182926 | NCF 2926 CV | 130 | 180 | 30 | 205 | 360 | 40,5 | 1600 | 2000 | 2,33 |
| SL182928 | NCF 2928 CV | 140 | 190 | 30 | 220 | 390 | 43 | 1500 | 1900 | 2,42 |
| SL182930 | NCF 2930 CV | 150 | 210 | 36 | 292 | 490 | 55 | 1400 | 1700 | 3,77 |
| SL182932 | NCF 2932 CV | 160 | 220 | 36 | 303 | 530 | 58,5 | 1300 | 1600 | 4 |
| SL182934 | NCF 2934 CV | 170 | 230 | 36 | 314 | 560 | 60 | 1200 | 1500 | 4,3 |
Bearings Package:
Original Package:
1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2):Small sizes:Plastic Tube + Carton
3):Big sizes:Wooden Case
Bearings Lead time:
We will prepare your order as soon as possible.
1)2-3 days for ex-stock
2)6-10 days for others
Shipping & Delivery time:
1)Less than 45 Kg:DHL TNT Fedex UPS express will be better,( 4-7 days delivered to your address);
2) Between 45 to 200 Kg:Air transiportation will be better,( 5-14 days delivered to your airport);
3) Over 200 Kg:Sea transportation will be better.( Cheapest,18-45 days to your port ).
Note:We will offer the best freight for you to save the shipping cost.Besides we provide all needed documents for your Customs clearance.Of course,your forwarder will be also welcome!
