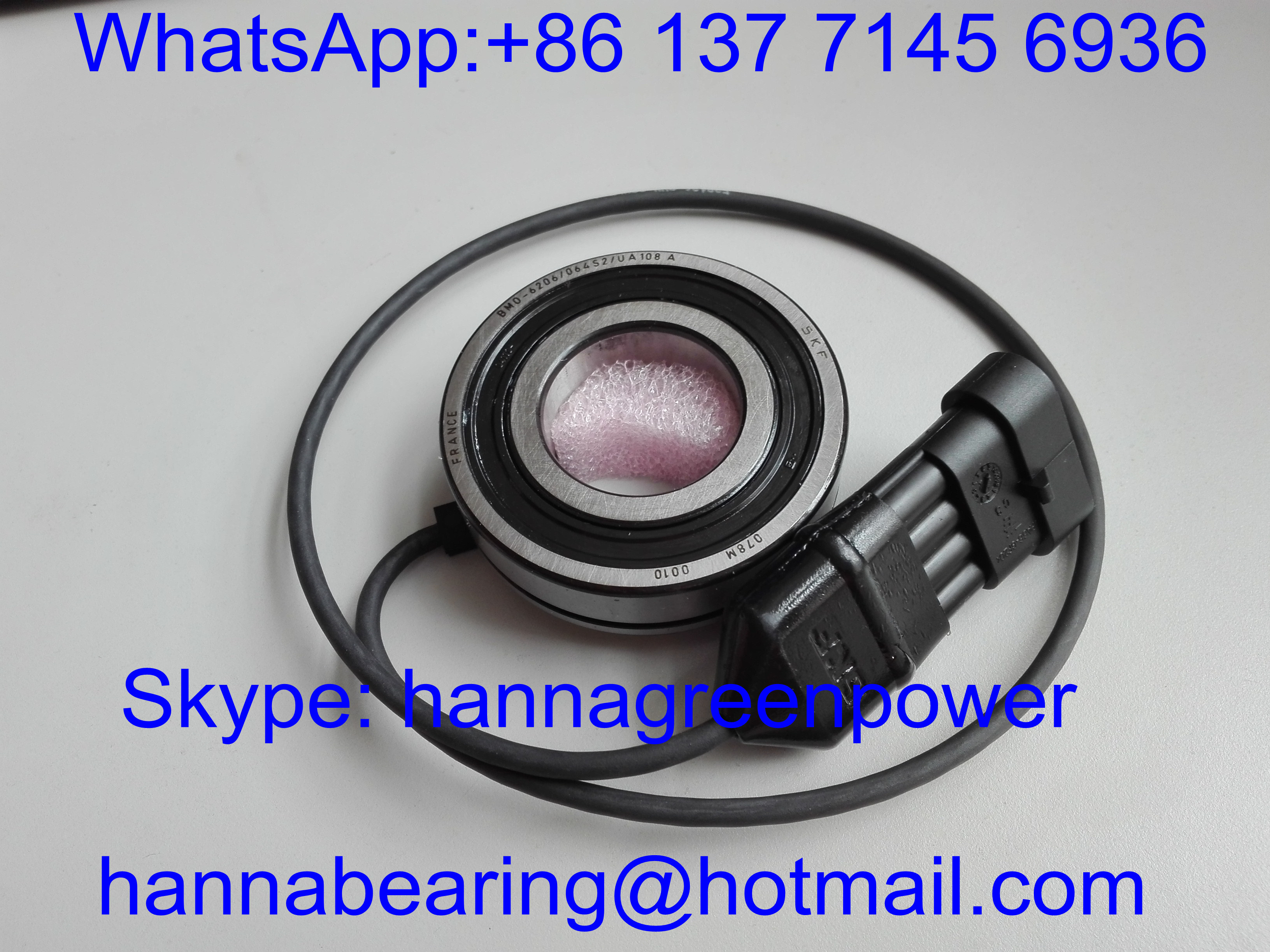

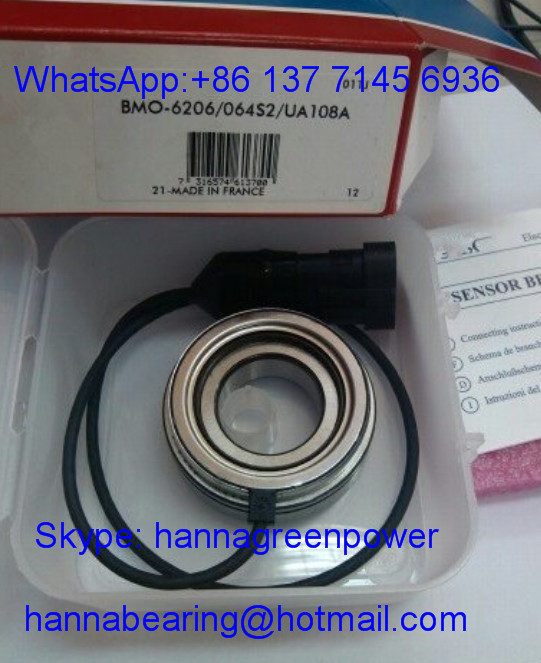

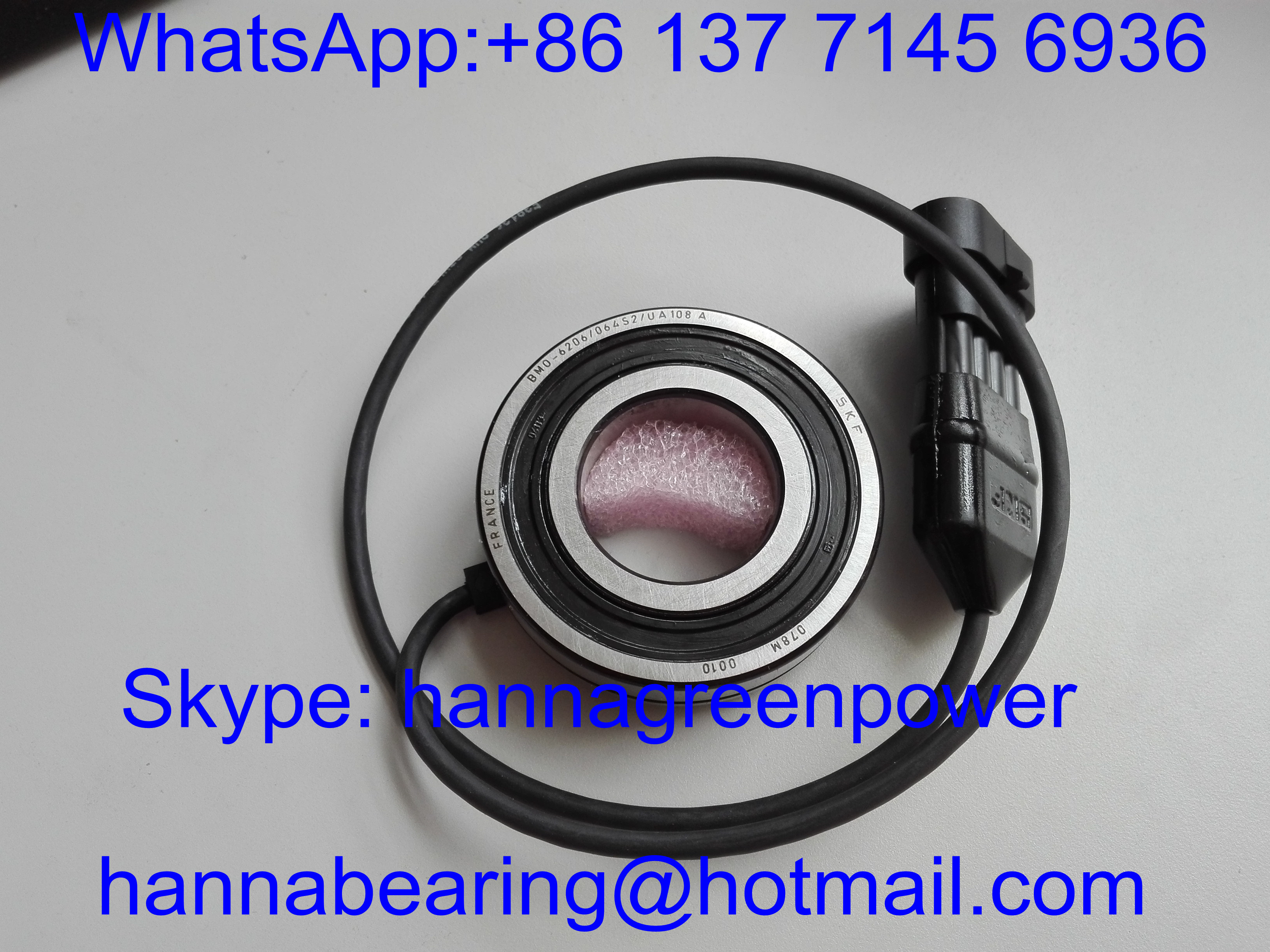

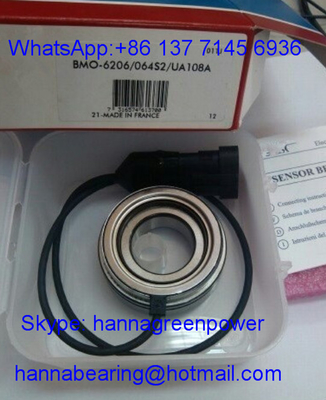

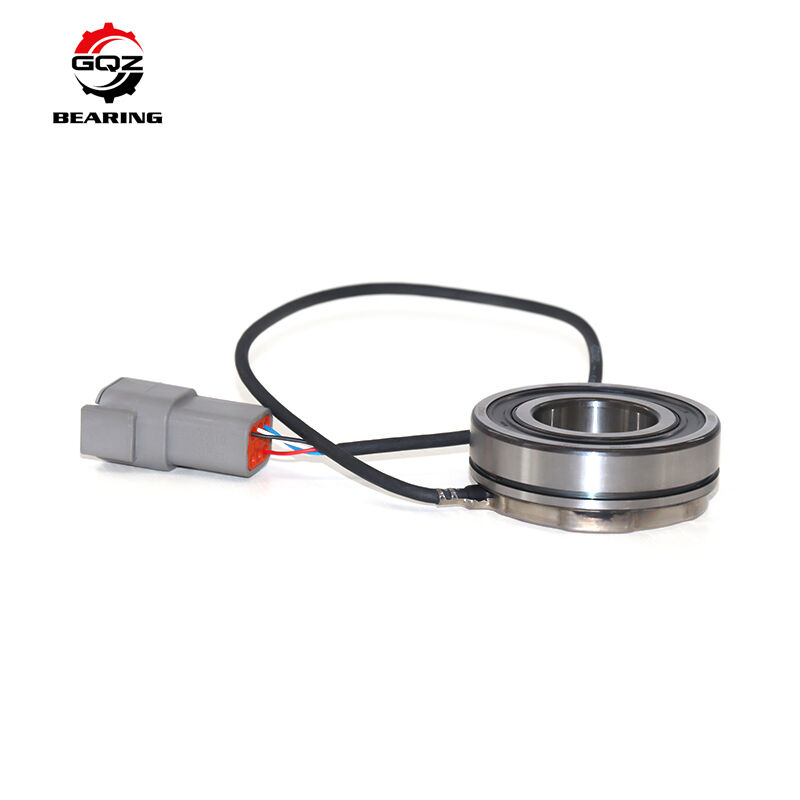

BMO6206/064S2/UA108A Automotive Bearings with Connector BMO6206/064S2/EA108A

This BMO6206 sensor bearing with connector series (covering BMO6206/064S2/UA108A and BMO6206/064S2/EA108A variants) is tailored for forklift transmission & steering systems. Featuring standard 6206 dimensions (30mm ID × 62mm OD × 16mm Width), it integrates a built-in sensor and integrated electrical connector to enable real-time equipment monitoring.

Crafted from premium GCr15 bearing steel (hardness 58-62 HRC) with precision-ground raceways, this forklift sensor bearing withstands heavy loads and frequent start-stop cycles in logistics environments. The sensor tracks key parameters (rotational speed, operating temperature), while the integrated connector ensures stable signal transmission to forklift control systems—supporting predictive maintenance and reducing downtime.

• Electric warehouse forklift drive wheel assemblies
• Internal combustion forklift steering system components
• Forklift transmission gearbox bearing housings
• Port logistics forklift load-handling mechanisms
• Forklift after-sales maintenance & replacement markets
• Material handling equipment (pallet jacks) upgrade systems

• Direct replacement for original sensor bearings of mainstream forklifts (e.g., Toyota electric forklifts, Linde internal combustion forklifts) across BMO6206/064S2 specifications
• Interchangeable with equivalent sensor bearings with connectors (matching 30×62×16mm dimensions) from brands like SKF, NSK
• Domestic alternative: ZWZ BMO6206 series sensor bearings with connectors (for forklift applications)

We currently have 185.pcs of BMO6206/064S2/UA108A Forklift Sensor Bearing BMO6206/064S2/EA108A Motor Encoder Unit In Stock.If you are in need of BMO6206/064S2/UA108A / BMO6206/064S2/EA108A Bearing ,just feel free to contact us.We can assure you the best quality; the most competitive prices; the shortest delivery time and the highest quality service.

• Bearing and sensors integrated into a single unit
• Enables monitoring of speed and direction of the shaft
• Accurately detects speeds from 0 to 13 000 r/min depending on limiting speed of bearing
• Wide range of cable length and connectors available

Besides,we also have the models given as below in Stock:

1. Q: What does the sensor in the BMO6206 bearing do for forklifts?

   A: It monitors real-time parameters (rotational speed, operating temperature) of forklift components, helping identify potential issues early and reduce unplanned downtime.

2. Q: Which forklift models work with BMO6206/064S2/UA108A/EA108A bearings?

   A: It’s compatible with mainstream models like Toyota electric forklifts (8FB series) and Linde internal combustion forklifts (H series) in drive/steering systems.

3. Q: Why is the integrated connector a key feature here?

   A: It simplifies wiring installation in forklift machinery, ensuring stable signal transmission between the sensor and the vehicle’s control system—no extra adapter is needed.
