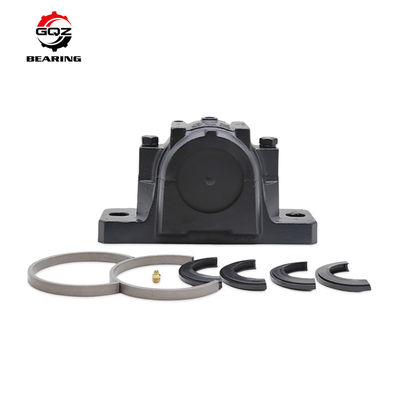

SNL series Plummer block housing bearing SNL516-613 SKF high quality Plummer Block Bearings Housing SNL 516 SNL516-613
SNL series Plummer block housing bearing SNL516-613 are typically used with self-aligning ball bearings, spherical roller bearings or CARB toroidal roller bearings fitted on straight or stepped shafts; the bearings can be mounted on adapter or withdrawal sleeves or directly on cylindrical shaft seats. These housings can also be used with other bearing types if they are within the correct Dimension Series.SNL plummer block housings set enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling costeffective bearing arrangements to be made.
Materials of SNL series Plummer block housing bearing SNL516-613 :
SNL plummer block housings are made of grey cast iron. For applications where the strength of grey cast iron is inadequate, dimensionally equivalent housings made of spheroidal graph-ite cast iron can be supplied. These housings are only available with four cast attachment bolt holes (series FSNLD) or without any holes in the base (series SSNLD).
| Housing | da | self-aligning ball bearing | spherical roller bearing | CARB bearing | A | L | H | H1 | Mass | |
| mm | Adapter Sleeve | mm | mm | mm | mm | kg | ||||
| SNL516-613 | 55.562 | 1313 K | HA2313 | 21313 K | - | 120 | 315 | 177 | 95 | 9.5 |
| housing No. | Bearing No. | Bearing No. |
| SNL507-606 | 1207EK | 2207EK |
| SNL507-607 | 1307EK | 2307EK |
| SNL508-607 | 1208EK | 2208EK |
| SNL510-608 | 1308EK | 2308EK |
| SNL509 | 1209EK | 2209EK |
| SNL511-609 | 1309EK | 2309EK |
| SNL510-608 | 1210EK | 2210EK |
| SNL512-610 | 1310EK | 2310K |
| SNL511-609 | 1211EK | 2211EK |
| SNL513-611 | 1311EK | 2311K |
| SNL512-610 | 1212EK | 2212EK |
| SNL515-612 | 1312EK | 2312K |
| SNL513-611 | 1213EK | 2213EK |
| SNL516-613 | 1313EK | 2313K |
| SNL515-612 | 1215K | 2215EK |
| SNL518-615 | 1315K | 2315K |
| SNL516-613 | 1216K | 2216EK |
| SNL519-616 | 1316K | 2316K |
| SNL 517 | 1217K | 2217K |
| SNL520-617 | 1317K | 2317K |
| SNL518-615 | 1218K | 2218K |
| SNL519-616 | 1219K | 2219K |
| SNL522-619 | 1319K | 2319K |
| SNL526 | 22226EK | 23226CCK/W33 |
| SNL528 | 22228CCK/W33 | 23228CCK/W33 |
| SNL532 | 22232CCK/W33 | 23232CCK/W33 |
| SNL205 | 1205E | 2205E |
| SNL206-305 | 1305E | 2305 |
