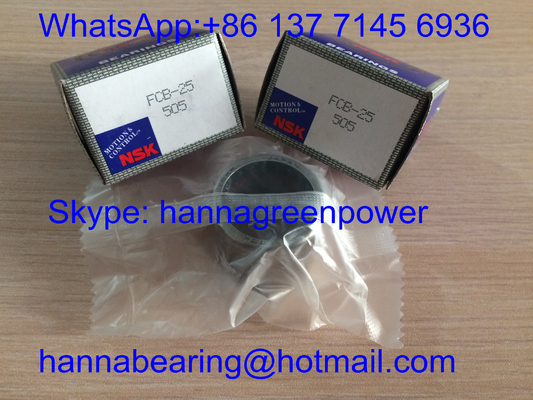

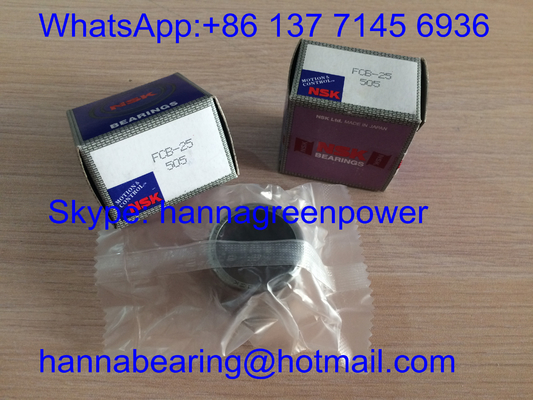

FCB-25 / FCB25 / HFL2530 Lock / Drawn Cup Roller Clutches / Needle Bearing Rollers 25*32*30mm

1. Product Overview

FCB-25, FCB25 and HFL2530 are identical metric integrated one-way drawn cup needle clutch bearings with unified dimension Fw=25mm, outer diameter D=32mm, overall width C=30mm. FCB-25 and FCB25 are two different marking formats of the same product; HFL2530 is the standard industry designation for this integrated overrunning bearing unit.

Different from simple HF series single clutch rollers without side support, this HFL/FCB type combines central one-way locking clutch mechanism plus two side needle roller supporting assemblies in one integral drawn cup shell. Stainless steel leaf springs drive inclined needle rollers to realize unidirectional torque transmission and anti-reverse self-locking, meanwhile the bilateral needle groups bear continuous radial load simultaneously.

Outer shell adopts stamped high-strength steel, needle rollers and inner matching race surface use GCr15 bearing steel with overall quenching treatment. Open both ends design facilitates regular re-lubrication. Only fit 25mm quenched mirror finished shaft, widely used for small reducers, textile machinery, packaging conveyors, printing equipment, household appliance transmission and light industrial anti-reverse overrunning drive assemblies.

Get a quote within 24 hours for your project

2. Technical Specifications

Unified Base Standard Parameters

Matching shaft diameter Fw: 25 mm
Outer diameter D: 32 mm
Total width C: 30 mm
Structure: Integral drawn cup one-way clutch with bilateral radial needle support
Outer cup material: Cold stamped carbon steel
Needle roller & spring material: GCr15 bearing steel + stainless steel spring
Standard radial clearance: CN normal clearance
Permissible maximum transmission torque: 66 N·m
Grease limiting rotation speed: 5500 r/min (shaft rotating / outer ring rotating)
Operating temperature range: -10℃ ~ 70℃
Minimum chamfer r: 0.3 mm
Required shaft surface: HRC60–64 mirror superfinishing

FCB-25 / FCB25

Alternative part number marking for HFL2530, fully interchangeable dimension & performance
Dynamic radial load Cr: 10600 N
Static radial load C0r: 14000 N
Fatigue load limit Cur: 1930 N
Net weight: 0.0442 kg

HFL2530

Standard official model designation of this integrated one-way needle bearing
Dynamic radial load Cr: 10600 N
Static radial load C0r: 14000 N
Fatigue load limit Cur: 1930 N
Net weight: 0.0442 kg
Complete dimensional drawings, torque test curves and full load parameter sheets are available upon customer request.

3. Key Advantages

1. All-in-one integrated structure combining one-way clutch + bilateral radial needle supports, no extra separate needle bearings required, greatly simplify equipment transmission layout and reduce part stock varieties
2. Built-in stainless steel leaf spring locking mechanism, stable one-way self-locking performance, reliable anti-reverse function under frequent start-stop and reciprocating torque load
3. Double-side dense needle roller layout provides strong radial load capacity, uniform stress distribution, effectively avoid unilateral eccentric wear during continuous operation
4. Thin integral drawn cup press-fit installation design, directly pressed into housing interference hole without positioning sleeves or snap rings, cut assembly labor cost
5. Uniform ultra-precision grinding needle rollers and inclined raceway surface, low friction, stable high-speed rotation and long contact fatigue service life
6. Customizable options: single/double RS rubber dust seals, stainless steel anti-rust outer cup, OEM laser marking, food-grade low-temperature special grease filling

Effectively reduce transmission system failure rate and extend service life of anti-reverse overrunning mechanical assemblies

4. Applications

This FCB-25 / FCB25 / HFL2530 integrated one-way drawn cup needle clutch bearing set is widely matched for the following light & medium industrial transmission equipment:

• Miniature planetary reducers, small gearbox anti-reverse output shaft supporting assemblies
• Textile weaving machinery, yarn winding machine unidirectional overrunning drive units
• Food packaging production line conveyor roller anti-backward rotation components
• Printing equipment, office automation machine reciprocating transmission mechanisms
• Small washing machine drive parts, light construction machinery feeding roller assemblies
• Aftermarket replacement spare parts for 25mm bore integrated one-way needle clutch bearing equipment

Ideal compact all-in-one anti-reverse bearing solution for narrow radial space unidirectional transmission machinery

5. Why Choose GQZ Bearing

• 25 years of professional HFL/FCB series integrated one-way drawn cup needle clutch bearing manufacturing experience
• Three part numbers fully dimensionally interchangeable with international standard HFL2530 bearings, consistent torque, load capacity and rotational precision
• Complete OEM & ODM customized service supporting dust seal addition, stainless steel shell and special lubricant customization
• Full-process strict inspection: raw material hardness test, drawn cup forming precision, spring locking torque consistency and high-speed cycle durability testing before delivery
• Professional one-way clutch engineering team provides housing interference tolerance and matching shaft installation guidance within 24 hours
• Stable mass production capacity with preferential bulk wholesale price for long-term textile and packaging machinery manufacturers

We focus on stable anti-reverse locking performance, high radial load durability and long-term win-win cooperation with global industrial buyers

6. Quality Control

• Raw material chemical composition and hardness inspection of GCr15 chrome steel and stainless spring steel
• Precision deep drawing, trimming and inner inclined raceway grinding processing for integral outer drawn cup
• Standardized quenching & tempering heat treatment process to stabilize metal internal stress and improve wear resistance
• Special one-way clutch performance testing: locking torque uniformity, high-speed anti-reverse durability, radial clearance consistency
• Uniform needle roller and spring assembly inspection, separate dimensional & appearance recheck for each model before anti-rust oil packaging and shipment

Every batch of bearings passes full sampling reciprocating torque cycle durability test to guarantee stable unidirectional transmission operation

7. Get a Quote Now

If you need high-performance FCB-25 / FCB25 marking and standard HFL2530 integrated one-way drawn cup needle clutch bearings for reducer and textile packaging equipment, send your inquiry to us directly.

You will receive full professional supporting services after submitting inquiry:

• Fast official factory quotation reply within 24 hours
• One-on-one housing interference tolerance & shaft surface hardness matching technical guidance by professional clutch bearing engineers
• Customized bearing solution suggestions including RS dust sealed variants and stainless steel anti-rust outer cup options
• Competitive direct factory bulk wholesale price for mixed multi-model combined bulk orders

Send your required purchase quantity of each model and equipment working environment to obtain detailed formal quotation

8. FAQ

• Q1: What is the difference between FCB-25, FCB25 and HFL2530?
  A1: FCB-25 and FCB25 are two simplified marking formats; HFL2530 is the global standard model designation, all three share identical dimensions, structure, torque and load parameters, fully interchangeable.
• Q2: What is the core structural advantage of HFL/FCB series vs HF series one-way bearings?
  A2: HFL/FCB integrates bilateral radial needle support on both sides of central clutch, can bear radial load independently without matching extra HK needle bearings; HF only contains single clutch rollers without side support.
• Q3: Can this bearing realize anti-reverse self-locking function?
  A3: Yes, built-in stainless steel leaf spring pushes inclined needles to wedge between shaft and outer shell, automatically locks reverse rotation and transmits torque in single direction.
