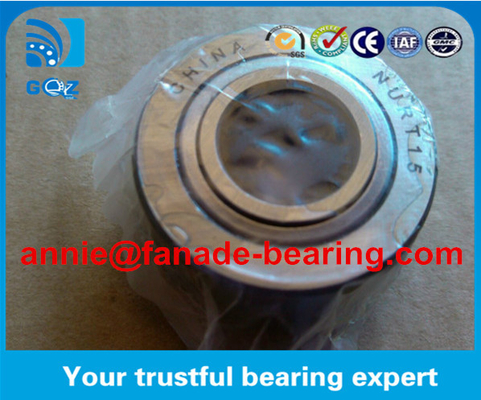

IKO Roller Followers IKO NURT15R Needle Roller Bearing 15x35x19 mm roller follower NURT15 track roller bearing NURT 15
The Brief Description of Yoke type track rollers Bearings:
Yoke type track rollers are single or double row units mounted on shafts or studs. They comprise thick-walled outer rings with a profiled outside surface and needle roller and cage assemblies or full complement needle roller or cylindrical roller sets.
Yoke type track rollers can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such as cam gears, bed ways and conveying equipment.
Needle roller bearing /cam follower is composed of a stud used as the tray of a group of rollers and a thick wall outer ring .The shoulder of the stud and the surface retaining ring on the stud form the guiding faces on the two sides of the outer ring. When the curve rollers are running on the plain tray or cam wheel, the inner stress on the rollers will increase due to the deformation of the outer ring.
Yoke Type Track Roller NURT15 Size Chart:
Model Number | Dimensions(mm) | Weight | |||
Special outer ring | Cylindrical outer ring | FW | D | B | (g) |
NURT 15 R | NURT 15 | 15 | 35 | 19 | 100 |
NURT 15-1 R | NURT 15-1 | 15 | 42 | 19 | 160 |
NURT 17 R | NURT 17 | 17 | 40 | 21 | 147 |
NURT 17-1 R | NURT 17-1 | 17 | 47 | 21 | 222 |
NURT 20 R | NURT 20 | 20 | 47 | 25 | 245 |
NURT 20-1 R | NURT 20-1 | 20 | 52 | 25 | 321 |
NURT 25 R | NURT 25 | 25 | 52 | 25 | 281 |
NURT 25-1 R | NURT 25-1 | 25 | 62 | 25 | 450 |
NURT 30 R | NURT 30 | 30 | 62 | 29 | 466 |
NURT 30-1R | NURT 30-1 | 30 | 72 | 29 | 697 |
NURT 35 R | NURT 35 | 35 | 72 | 29 | 630 |
NURT 35-1 R | NURT 35-1 | 35 | 80 | 29 | 840 |
NURT 40 R | NURT 40 | 40 | 80 | 32 | 817 |
NURT 40-1 R | NURT 40-1 | 40 | 90 | 32 | 1130 |
NURT 45R | NURT 45 | 45 | 85 | 32 | 883 |
NURT 45-1 R | NURT 45-1 | 45 | 100 | 32 | 1400 |
NURT 50 R | NURT 50 | 50 | 90 | 32 | 950 |
NURT 50-1 R | NURT 50-1 | 50 | 110 | 32 | 1690 |
Bearings Package:
Original Package:
1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2):Small sizes:Plastic Tube + Carton
3):Big sizes:Wooden Case
Bearings Lead time:
We will prepare your order as soon as possible.
1)2-3 days for ex-stock
2)6-10 days for others
Shipping & Delivery time:
1)Less than 45 Kg:DHL TNT Fedex UPS express will be better,( 4-7 days delivered to your address);
2) Between 45 to 200 Kg:Air transiportation will be better,( 5-14 days delivered to your airport);
3) Over 200 Kg:Sea transportation will be better.( Cheapest,18-45 days to your port ).
