Joint Ball Bearing GEF75ES-2RS Spherical Plain Bearing 75*120*64mm Hardness 58-62 HRC

Joint Ball Bearing GEF75ES-2RS Spherical Plain Bearing 7512064mm Hardness 58-62 HRC

Brand Name:	OEM
Model Number:	GEF75ES-2RS
MOQ:	1 pcs
Price:	negotiation
Delivery Time:	3 working days after received your payment
Payment Terms:	T/T or or PayPal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

GEF75ES-2RS

Precision Rating:

P0 P6 P5

Hardness:

58-62 HRC

Material Of The Ball:

Gcr15 Steel

Packaging Details:

Packed in carton firstly,and then reinforced with wooden case for outer packing

Supply Ability:

3,000pcs per month

Highlight:

plain spherical bearing

spherical sliding bearing

Product Description

Joint Bearing GEF75ES-2RS spherical plain ball bearing 75*120*64mm

The Brief Description of Joint Bearings:

The joint bearing is actually one deformation of the deep groove ball bearing, The most obvious characteristic for the spherical bearing is its outer diameter surface is spherical. Therefore, it can be inserted into the corresponding concave spherical bearing with self-aligning effect.The spherical bearing is suitable for equipments with simple components, such as agricultural machinery, transportation systems or on construction machinery

Advantages of joint bearings:

1.Can bear large load

2.Different types and structures

3.Self-lubriing

4.Used for low speed pendulum motion and low-speed rotation

5.Can do tilting motion in a certain angle range

6.Have bigger load capacity and impact resistant ability

7.Resist corrosion, resistant to wear , self aligning , good lubriion

8.Can work normally even installation disloion

Joint Ball Bearing GEF75ES Drawing and Specifiion:

Pictures Shows of GE Series Plain Joint Bearing:

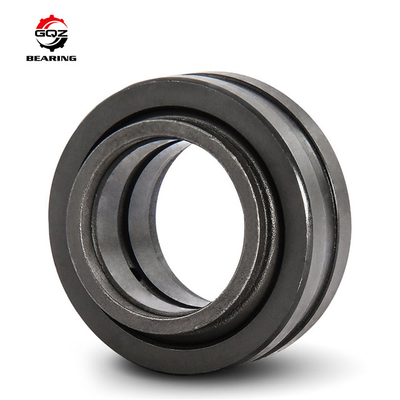

Joint Ball Bearing GEF75ES-2RS Spherical Plain Bearing 75*120*64mm

Other family members of joint bearings:

Bearing number	Dimenisions								Load ratings		weight
	d	D	B	C	dk	rs	rls	α	Load ratings		weight
	d	D	B	C	dk	min	min	≈	Dynamic	Static	≈Kg
GEF12ES	12	22	11	9	18	0.5	0.5	7	13	68	0.019
GEF20ES	20	32	16	14	28	0.5	0.5	4	33	166	0.053
GEF22ES	22	37	19	16	32	0.5	0.5	6	43	217	0.085
GEF25ES	25	42	21	18	36	0.5	0.5	5	55	275	0.116
GEF30ES	30	50	27	23	45	1	1	6	87	439	0.225
GEF35ES	35	55	30	26	50	1	1	5	110	552	0.302
GEF40ES	40	62	33	28	55	1	1	6	130	654	0.375
GEF45ES	45	72	36	31	62	1	1	5	163	816	0.598
GEF50ES	50	80	42	36	72	1	1	5	220	1100	0.869
GEF55ES	55	90	47	40	80	1	1	6	272	1360	1.26
GEF60ES	60	100	53	45	90	1	1	6	344	1720	1.72
GEF65ES	65	105	55	47	94	1	1	5	375	1870	2.05
GEF70ES	70	110	58	50	100	1	1	5	425	2125	2.23
GEF75ES	75	120	64	55	110	1	1	5	510	2570	3.01
GEF80ES	80	130	70	60	120	1	1	5	610	3060	3.98
GEF85ES	85	135	74	63	125	1	1	6	669	3340	4.31
GEF90ES	90	140	76	65	130	1	1	5	718	3590	4.72
GEF95ES	95	150	82	70	140	1	1	5	833	4165	6.05
GEF100ES	100	160	88	75	150	1.5	1.5	5	956	4780	7.43
GEF110ES	110	170	93	80	160	1.5	1.5	5	1080	5440	8.54
GEF115ES	115	180	98	85	165	1.5	1.5	5	1190	5960	10.3
GEF120ES	120	190	105	90	175	1.5	1.5	6	1330	6690	12.4
GEF130ES	130	200	110	95	185	1.5	1.5	5	1490	7460	13.8
GEF150ES	150	220	120	105	205	1.5	1.5	5	1820	9140	17.1
