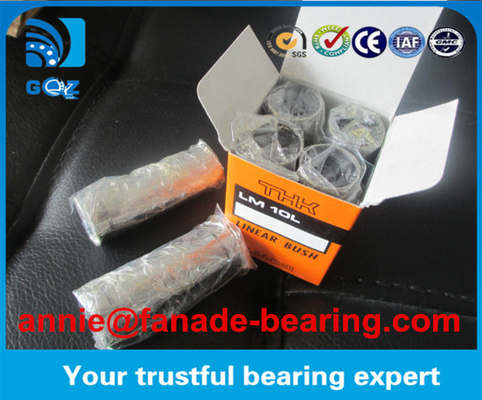

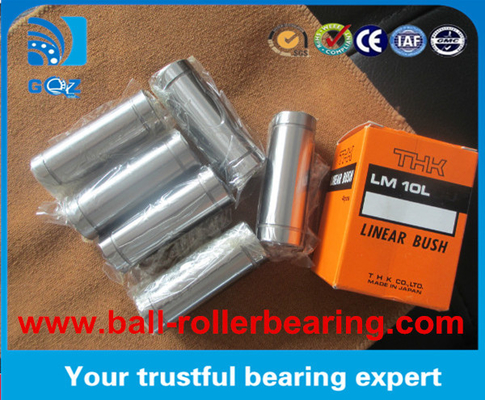

Good price THK Linear ball bearing LM10L large in stock 10*19*55 mm Lengthening linear bearing Linear10L THK
bearing is a low-cost production of LM LMF LMK LMU linear bearing linear motion system for unlimited travel with the cylinder axis. Since the ball bearing point contact with the shaft, so use the load is small. Minimal friction ball rotation, thereby to obtain smooth movement precision. Plastic linear bearings are self-lubricating properties of a linear motion system, the biggest difference is that the metal in the metal LM LMF LMK LMU linear bearing linear bearings are rolling friction, is the point contact between the bearing and the cylinder axis, so this suited for low load speed movement; while plastic linear bearings are sliding friction is between the bearing surface contact with the cylinder axis, so this low-speed movement for high loads.
Linear bearings LM LMF LMK LMU linear bearing are used in conjunction with hardened linear drive shaft. For infinite linear motion systems. Load the ball and quenching transmission shaft because it is the point contact, allowing the load is small, but linear motion, friction smallest, high precision, fast movement.
About Linear Motion Ball Bearing Linear Ball Bearing :
| Products name | LM10UU 10mm linear bearing |
| Material | Chrome steel |
| Dimensions |
Linear Bearing LM8UU:8mm*15mm*24mm Linear Bearing LM10UU:10mm*19mm*29mm Linear Bearing LM16UU:16mm*28mm*37mm Linear Bearing LM20UU:20mm*32mm*42mm |
| Brand | OEM/THK/GQZ |
| Price | Factory price |
| Delivery date | 2-3 days for ex-stock |
| Application | Linear bearings are currently more widely applied to electronic equipment, food machinery, packaging machinery, medical machinery, printing machinery, textile machinery, machinery, equipment, robotics, machine tools, CNC machine tools, automobiles and digital three-dimensional coordinate measuring equipment, precision among the special equipment or machinery industry. |
| Details | Features: feel good, clearance of small, low-noise.used in 3d printer bearing man roland offset printing ,offset printing machine usa , roland bearing |
| Bearing code |
Number of ball row |
Main dimension | Basic load rating | Weight | ||||||
| Inner diameter | Outer diameter | Length | Outer locking groove | W | Dynamic | Static | ||||
| dr | D | L | B | D1 | c(kgf) | Co(kgf) | ||||
| LM6L | 4 | 6 | 12 | 35 | 27 | 11.5 | 1.1 | 33 | 54 | 14 |
| LM8L | 4 | 8 | 15 | 45 | 35 | 14.3 | 1.1 | 44 | 80 | 26 |
| LM10L | 4 | 10 | 19 | 55 | 44 | 18 | 1.3 | 60 | 112 | 55 |
| LM12L | 4 | 12 | 21 | 57 | 46 | 20 | 1.3 | 83 | 160 | 58 |
| LM13L | 4 | 13 | 23 | 61 | 46 | 22 | 1.3 | 83 | 160 | 77 |
| LM16L | 5 | 16 | 28 | 70 | 53 | 27 | 1.6 | 126 | 240 | 147 |
| LM20L | 5 | 20 | 32 | 80 | 61 | 30.5 | 1.6 | 143 | 280 | 171 |
| LM25L | 6 | 25 | 40 | 112 | 82 | 38 | 1.85 | 159 | 320 | 400 |
| LM30L | 6 | 30 | 45 | 123 | 89 | 43 | 1.85 | 254 | 560 | 472 |
| LM35L | 6 | 35 | 52 | 135 | 99 | 49 | 2.1 | 270 | 640 | 708 |
| LM40L | 6 | 40 | 60 | 151 | 121 | 57 | 2.1 | 350 | 820 | 1090 |
| LM50L | 6 | 50 | 80 | 192 | 148 | 76.5 | 2.6 | 620 | 1622 | 2800 |
| LM60L | 6 | 60 | 90 | 209 | 170 | 86.5 | 3.15 | 770 | 2040 | 3800 |
| LM...UU | LM...UU-OP | LM...UU-AJ | LME..UU | LM...LUU | KH series |
| LM6UU | LM6UU-OP | LM6UU-AJ | LME5UU | LM6LUU | KH0622 |
| LM8UU | LM8UU-OP | LM8UU-AJ | LME8UU | LM8LUU | KH0824 |
| LM10UU | LM10UU-OP | LM10UU-AJ | LME12UU | LM10LUU | KH126 |
| LM12UU | LM12UU-OP | LM12UU-AJ | LME20UU | LM12LUU | KH1228 |
| LM13UU | LM13UU-OP | LM13UU-AJ | LME25UU | LM13LUU | KH1428 |
| LM16UU | LM16UU-OP | LM16UU-AJ | LME30UU | LM16LUU | KH1428 |
| LM20UU | LM20UU-OP | LM20UU-AJ | LME40UU | LM20LUU | KH1630 |
| LM25UU | LM25UU-OP | LM25UU-AJ | LME50UU | LM25LUU | KH2030 |
| LM30UU | LM30UU-OP | LM30UU-AJ | LME60UU | LM30LUU | KH2540 |
| LM35UU | LM35UU-OP | LM35UU-AJ | LM35LUU | KH3050 | |
| LM40UU | LM40UU-OP | LM40UU-AJ | LM40LUU | KH4060 | |
| LM50UU | LM50UU-OP | LM50UU-AJ | LM50LUU | KH5070 | |
| LM60UU | LM60UU-OP | LM60UU-AJ | LM60LUU | ||
| LM80UU | LM80UU-OP | LM80UU-AJ | |||
| LM100UU | LM100UU-OP | LM100UU-AJ |
"LM" metric standard type linear bearing
"LME" inch standard type linear bearing
"UU" rubber seals on the both sides of the long type linear bearing
"OP" open type linear bearing
"AJ" adjustment type linear bearing
*LM...UU: LM...(sylinder), LM...OP(open type), LM...AJ(clearance adustable)
*LME...UU: LME...(sylinder), LME...OP(open type), LME...AJ(clearance adustable),
*KH: High-precision mini bearing
.
