P5 Precision RU228G RU228GUUCC0P5 Precison Crossed Roller Bearing For Robot Industry

P5 Precision RU228G RU228GUUCC0P5 Precison Crossed Roller Bearing For Robot Industry

  • High Light

    P5 Precision Slewing Ring Bearing

    ,

    Axial Radial Slewing Ring Bearing

    ,

    Non Gear Type Slewing Ring Bearing

  • Product Name
    RU228GUUCC0P5
  • Inner Diameter
    160 Mm
  • Outer Diameter
    295 Mm
  • Thickness
    35 Mm
  • Type
    Cross Roller Bearing
  • Gear Type
    Non-gear Type
  • Application
    Robots Industry
  • Warrant
    1 Years
  • Place of Origin
    Japan
  • Brand Name
    THK or other brand
  • Certification
    ISO9001:2008
  • Model Number
    RU228G
  • Minimum Order Quantity
    1 pcs
  • Price
    negotiation
  • Packaging Details
    Packed in carton firstly,and then reinforced with wooden case for outer packing
  • Delivery Time
    3 working days after received your payment
  • Payment Terms
    T/T or western Union or PayPal
  • Supply Ability
    3,000pcs per month

P5 Precision RU228G RU228GUUCC0P5 Precison Crossed Roller Bearing For Robot Industry

P5 Precision THK RU228GUUCC0P5 Precison Crossed Roller Bearing For Robot Industry



1. Specification:

RU228G precision cross roller bearing is a kind of bearing fixed by a bidirectional thrust bearing and a centripetal-guided bearing. They can support radial loads, axial loads from both directions and tilting moments free from clearance and are particularly suitable for bearing arrangements with high requirements for running accuracy,like rotary tables, millings heads and reversible clamps.Due to the fixing holes in the bearing rings, the units are very easy to fit.

2. Feature:

(1) High stand load

(2) Double direction

(3) Non teeth gear

(4) high limiting speeds

(5) oil or grease lubrication

(6) 1 year's quality warrant

(7) Quick delivery



3. Application: Robots industry and so on

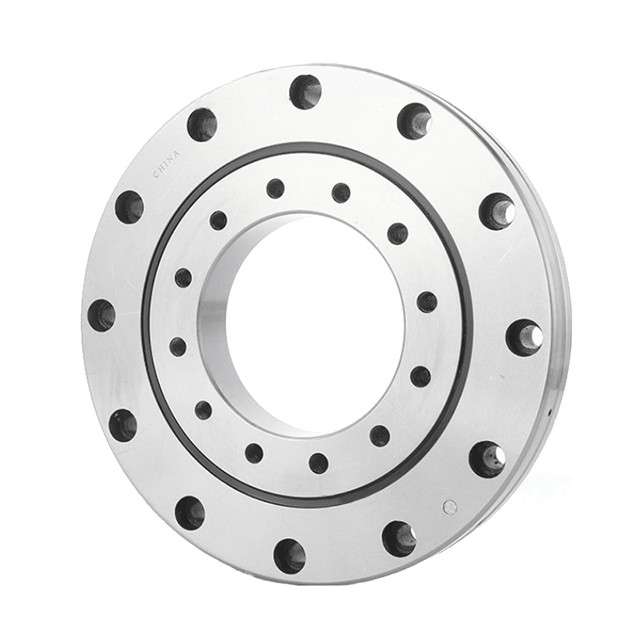

4. Bearing Picture:

P5 Precision RU228G RU228GUUCC0P5 Precison Crossed Roller Bearing For Robot Industry 0

P5 Precision RU228G RU228GUUCC0P5 Precison Crossed Roller Bearing For Robot Industry 1

P5 Precision RU228G RU228GUUCC0P5 Precison Crossed Roller Bearing For Robot Industry 2P5 Precision RU228G RU228GUUCC0P5 Precison Crossed Roller Bearing For Robot Industry 3

4. We also supply following slewing ring bearing:

Bearing Type Boundary dimensions (mm) Gear Teeth
Nongeared External Gear Internal Gear D d H D1 d1 dn n n1 H1 h b m
010.20.250 011.20.250   330 170 60 298 202 16 18 2 50 10 40 4
010.20.280 011.20.280   360 200 60 328 232 16 18 2 50 10 40 4
010.25.315 011.25.315 013.25.315 408 222 70 372 258 18 20 2 60 10 50 5
010.25.355 011.25.355 013.25.355 448 262 70 412 298 18 20 2 60 10 50 5
010.25.400 011.25.400 013.25.400 493 307 70 457 343 18 24 2 60 10 50 6
010.25.450 011.25.450 013.25.450 543 357 70 507 393 18 24 2 60 10 50 6
010.30.500 011.30.500 013.30.500 602 398 80 566 434 18 20 4 70 10 60 5
012.30.500 014.30.500 602 398 80 566 434 18 20 4 70 10 60 6
010.30.560 011.30.560 013.30.560 662 458 80 626 494 18 20 4 70 10 60 5
012.30.560 014.30.560 662 458 80 626 494 18 20 4 70 10 60 6
010.30.630 011.30.630 013.30.630 732 528 80 696 564 18 24 4 70 10 60 6
012.30.630 014.30.630 732 528 80 696 564 18 24 4 70 10 60 8
010.30.710 011.30.710 013.30.710 812 608 80 776 644 18 24 4 70 10 60 6
012.30.710 014.30.710 812 608 80 776 64 18 24 4 70 10 60 8
010.40.800 011.40.800 013.40.800 922 678 100 878 722 22 30 6 90 10 80 8
012.40.800 014.40.800 922 678 100 878 722 22 30 6 90 10 80 10
010.40.900 011.40.900 013.40.900 1022 778 100 978 822 22 30 6 90 10 80 8
012.40.900 014.40.900 1022 778 100 978 822 22 30 6 90 10 80 10
010.40.1000 011.40.1000 013.40.1000 1122 878 100 1078 922 22 36 6 90 10 80 10
012.40.1000 014.40.1000 1122 878 100 1078 922 22 36 6 90 10 80 12
010.40.1120 011.40.1120 013.40.1120 1242 998 100 1198 1042 22 36 6 90 10 80 10
012.40.1120 014.40.1120 1242 998 100 1198 1042 22 36 6 90 10 80 12
010.45.1250 011.45.1250 013.45.1250 1390 1110 110 1337 1163 26 40 5 100 10 90 12
012.45.1250 014.45.1250 1390 1110 110 1337 1163 26 40 5 100 10 90 14
010.45.1400 011.45.1400 013.45.1400 1540 1260 110 1487 1313 26 40 5 100 10 90 12
012.45.1400 014.45.1400 1540 1260 110 1487 1313 26 40 5 100 10 90 14
010.45.1600 011.45.1600 013.45.1600 1740 1460 110 1687 1513 26 45 5 100 10 90 14
012.45.1600 014.45.1600 1740 1460 110 1687 1513 26 45 5 100 10 90 16



If you want to buy this bearing,just sent email to  tommy@gqbearing.com
