5210-2RS W5210 Double Row Angular Contact Ball Bearing 50x90x40mm Bus Bearing

5210-2RS W5210 Double Row Angular Contact Ball Bearing 50x90x40mm Bus Bearing

  • High Light

    P3 Angular Contact Ball Bearing

    ,

    Gcr15 Angular Contact Spindle Ball Bearing

    ,

    Air Compressor Angular Contact Ball Bearing

  • Product Name
    5210-2RS
  • Inside Diameter
    50 Mm
  • Outerside Diameter
    90 Mm
  • Thickness
    40 Mm
  • Ball Material
    Steel Balls
  • Place of Origin
    China
  • Brand Name
    GQZ or OEM
  • Certification
    ISO
  • Model Number
    5210-2RS
  • Minimum Order Quantity
    1 pcs
  • Price
    negotiation
  • Packaging Details
    Packed in carton firstly,and then reinforced with wooden case for outer packing
  • Delivery Time
    3 working days after received your payment
  • Payment Terms
    T/T or western Union or PayPal
  • Supply Ability
    3,000pcs per month

5210-2RS W5210 Double Row Angular Contact Ball Bearing 50x90x40mm Bus Bearing

5210-2RS Double Row Angular Contact Ball Bearing



1. Specification:



Specification of Bearing

Part number

5210-2RS

Inner diameter

50 mm

Outer diameter

90 mm

Thickness

48 mm

Material

Bearing steel



2. Feature:

(1)  40mm thickness

(2)  Double row

(3)  Rubber seals on both sides

(4)  Grease or oil lubrication



3. Anguar contact contact angle:

AC: 25 degree

B: 40 degree

C: 15 degree

A: 30 degress



4. Matching type:

DB: back to back

DF: face to face

DT: Series connect

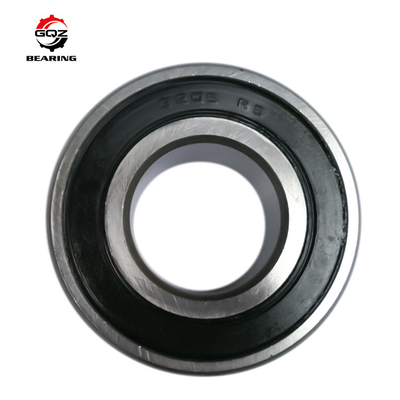

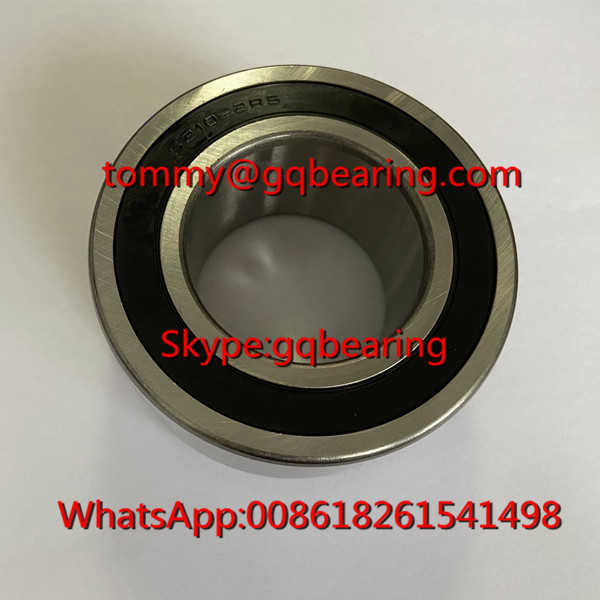

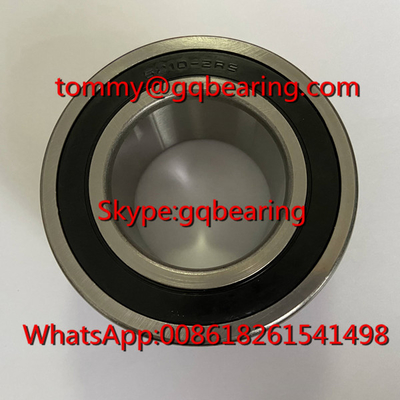

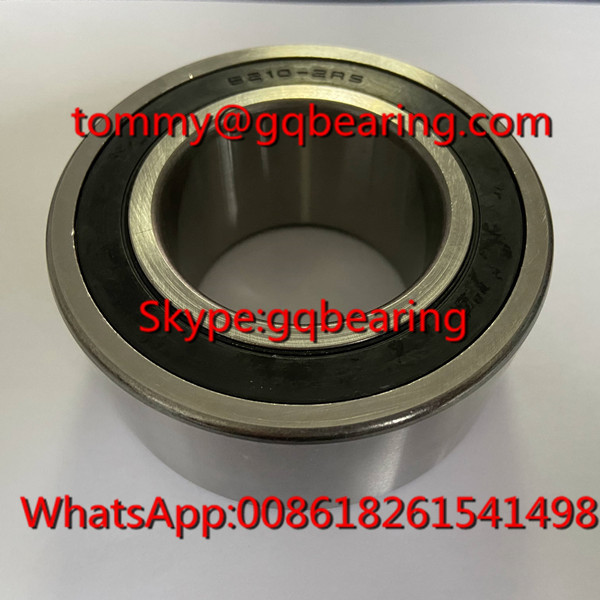

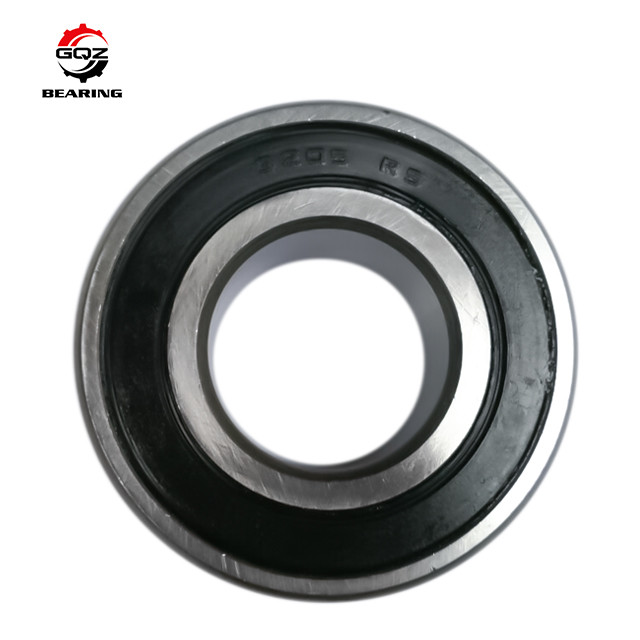

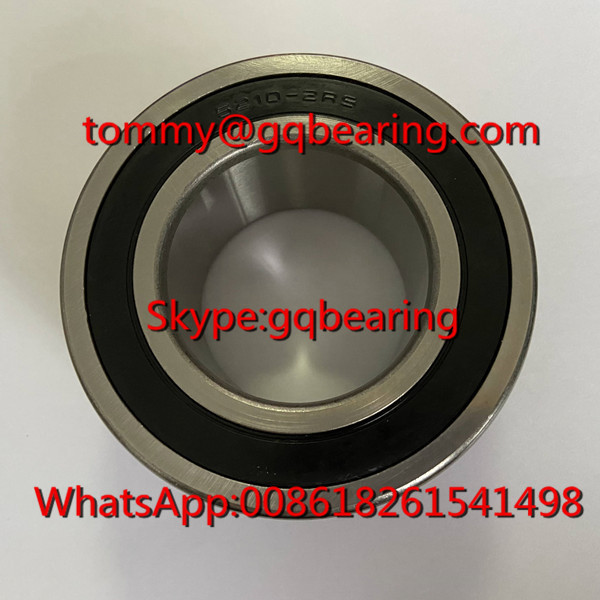

5. Bearing Picture:

5210-2RS W5210 Double Row Angular Contact Ball Bearing 50x90x40mm Bus Bearing 05210-2RS W5210 Double Row Angular Contact Ball Bearing 50x90x40mm Bus Bearing 15210-2RS W5210 Double Row Angular Contact Ball Bearing 50x90x40mm Bus Bearing 2



6. We also supply following angular contact ball bearing:

Designation Principal dimensions Basic load ratings Fatigue load limit Speed ratings Mass
        dynamic static Reference speed Limiting speed
  d D B C C0 Pu
- mm     kN   kN r/min   kg
7200BEP 10 30 9 7,02 3,35 0,14 30000 30000 0,03
7200BECBP 10 30 9 7,02 3,35 0,14 30000 30000 0,03
7201BEP 12 32 10 7,61 3,8 0,16 26000 26000 0,036
7201BECBP 12 32 10 7,61 3,8 0,16 26000 26000 0,036
7201BEGAP 12 32 10 7,61 3,8 0,16 26000 26000 0,036
7301BEP 12 37 12 10,6 5 0,208 24000 24000 0,063
7202BEP 15 35 11 8,84 4,8 0,204 24000 24000 0,045
7202BECBP 15 35 11 9,5 5,1 0,216 26000 26000 0,045
7202BEGAP 15 35 11 9,5 5,1 0,216 26000 26000 0,045
7202BEGBP 15 35 11 9,5 5,1 0,216 26000 26000 0,045
7302BEP 15 42 13 13 6,7 0,28 20000 20000 0,081
7302BECBP 15 42 13 13 6,7 0,28 20000 20000 0,081
7203BEP 17 40 12 10,4 5,5 0,236 20000 20000 0,064
7203BEY 17 40 12 11,1 6,1 0,26 20000 20000 0,064
7203BECBP 17 40 12 11 5,85 0,25 22000 22000 0,064
7203BEGAP 17 40 12 11 5,85 0,25 22000 22000 0,064
7203BECBM 17 40 12 11 5,85 0,25 22000 22000 0,07
7303BEP 17 47 14 15,9 8,3 0,355 19000 19000 0,11
7303BECBP 17 47 14 15,9 8,3 0,355 19000 19000 0,11
7303BEGAP 17 47 14 15,9 8,3 0,355 19000 19000 0,11
7204BEP 20 47 14 13,3 7,65 0,325 18000 18000 0,11
7204BECBM 20 47 14 13,3 7,65 0,325 18000 19000 0,11
7204BECBY 20 47 14 14 8,3 0,355 18000 18000 0,11
7204BECBP 20 47 14 14,3 8,15 0,345 19000 19000 0,11
7204BEGAP 20 47 14 14,3 8,15 0,345 19000 19000 0,11
7204BEGBP 20 47 14 14,3 8,15 0,345 19000 19000 0,11
7304BEP 20 52 15 17,4 9,5 0,4 16000 16000 0,14
7304BEY 20 52 15 19 10,4 0,44 16000 16000 0,15
7304BECBY 20 52 15 19 10,4 0,44 16000 16000 0,15
7304BECBP 20 52 15 19 10 0,425 18000 18000 0,14
7304BEGAP 20 52 15 19 10 0,425 18000 18000 0,14
7304BEGBP 20 52 15 19 10 0,425 18000 18000 0,14
7304BECBPH 20 52 15 19 10 0,425 18000 18000 0,14
7304BECBM 20 52 15 19 10 0,425 18000 18000 0,15
7205BEP 25 52 15 14,8 9,3 0,4 15000 15000 0,13
7205BEY 25 52 15 15,6 10,2 0,43 15000 15000 0,13
7205BECBY 25 52 15 15,6 10,2 0,43 15000 15000 0,13
7205BEGAY 25 52 15 15,6 10,2 0,43 15000 15000 0,13



If you want to buy 50x90x40mm bearing,just send email to: tommy@gqbearing.com
