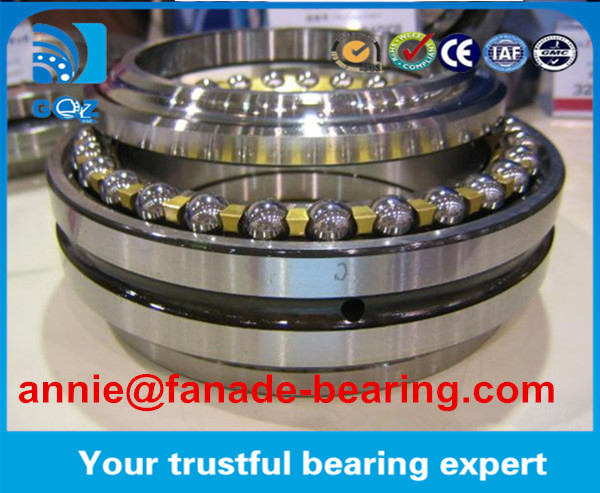

Double direction NSK Chrome Steel Axial Angular Contact Ball Bearing

Double direction NSK Chrome Steel Axial Angular Contact Ball Bearing

  • High Light

    Angular Contact Bearing

    ,

    Steel Cage Bearing

  • Structure
    Angular Contact
  • Seals Type
    Open
  • Bearing Material
    Bearing Steel\Gcr15
  • Number Of Row
    Single Row
  • Cage
    Brass
  • Weight
    13 Kg
  • Place of Origin
    Japan
  • Brand Name
    NSK OR OEM
  • Certification
    ISO9001
  • Model Number
    160TAC20D+L
  • Minimum Order Quantity
    1PCS
  • Price
    USD0.1-1000/PC
  • Packaging Details
    Standard Carton Box / Wooden Pallet Case
  • Delivery Time
    3-5 work days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    100000pcs/Week

Double direction NSK Chrome Steel Axial Angular Contact Ball Bearing

NSK Axial angular contact ball bearings 160TAC20D+L CNC Spindle 160x240x96 mm Angular Contact Bearings 160TAC20D+L



Double direction angular contact thrust ball bearing are specially designed high precision bearings for the main spindles of machine tools.





NSK Axial angular contact ball bearings 160TAC20D+L CNC Spindle numbering system .

Double direction NSK Chrome Steel Axial Angular Contact Ball Bearing 0





NSK bearing 160TAC20D+L bearings for motor spindle design :

Double direction NSK Chrome Steel Axial Angular Contact Ball Bearing 1



NSK bearing 160TAC20D+L bearings for motor spindle Specification :

Commodity name NSK double-direction Angular contact ball bearing
Bearing model 160TAC20D+L
Bearing specification 160*240*96 mm bearing
Weight /KG 13 KG
Bearing Series TAC series
Ring Materical Chrome Steel
Quality standard ISO9001:2008
Bearing Precision P5 ,P4
Cage Brass
Service OEM service offer



Axial angular contact ball bearings 160TAC20D+L

Bearing number : 160TAC20D+L

Size (mm) : 160x240x96

Brand : NSK

Bore Diameter (mm) : 160

Outer Diameter (mm) : 240

Width (mm) : 96

Bearing dimensions and specification in brand catalogue :

d - 160 mm

D - 240 mm

T - 96 mm

C - 48 mm

Angle (α) - 60 °

r min. - 2,1 mm

r1 min. - 1,1 mm

Da - 228 mm

ra max. - 2 mm

rb max. - 1 mm

da - 191 mm

Weight - 13 Kg

Basic dynamic load rating (C) - 185 kN

Basic static load rating (C0) - 680 kN

(Grease) Lubrication Speed - 2 300 r/min

(Oil) Lubrication Speed - 2 500 r/min



NSK Axial angular contact ball bearings 160TAC20D+L CNC Spindleotor spindle model series :

Double direction NSK Chrome Steel Axial Angular Contact Ball Bearing 2



NSK HIGH PRECISION angular contact ball bearing series :

15TAC47BSUC10PN7B,17TAC47BSUC10PN7B,20TAC47BSUC10PN7B,25TAC62BSUC10PN7B,30TAC62BSUC10PN7B

30TAC72BSUC10PN7B,35TAC72BSUC10PN7B,40TAC72BSUC10PN7B,40TAC90BSUC10PN7B,45TAC75BSUC10PN7B

45TAC100BSUC10PN7B,50TAC100BSUC10PN7B,50TAC120BSUC10PN7B,60TAC120BSUC10PN7B,55TAC100BSUC10PN7B



Model No. d(mm) D(mm) T(mm) C(mm) Weight(kg)
35TAC20X+L 35 62 34 17 0.358
40TAC20X+L 40 68 36 18 0.435
45TAC20X+L 45 75 38 19 0.549
50TAC20X+L 50 80 38 19 0.59
55TAC20X+L 55 90 44 22 0.898
60TAC20X+L 60 95 44 22 0.963
65TAC20X+L 65 100 44 22 1.03
70TAC20X+L 70 110 48 24 1.41
75TAC20X+L 75 115 48 24 1.49
80TAC20X+L 80 125 54 27 2.02
85TAC20X+L 85 130 54 27 2.12
90TAC20X+L 90 140 60 30 2.83
95TAC20X+L 95 145 60 30 2.93
100TAC29X+L 100 140 48 24 1.87
100TAC20X+L 100 150 60 30 3.08
105TAC29X+L 105 145 48 24 1.96
105TAC20X+L 105 160 66 33 3.94
110TAC29X+L 110 150 48 24

2.04
