BNK 2010K-2.5 RRG0+499LC5KG HIGH-PRECISION GROUND BALL SCREW

Name: BNK 2010K-2.5 RRG0+499LC5KG HIGH-PRECISION GROUND BALL SCREW
Brand: Wuxi Guangqiang Bearing Trade Co.,Ltd
SKU: BNK 2010K-2.5 RRG0+499LC5KG High-Precision Ground Ball Screw
Price: 10 USD
Availability: InStock

Brand Name:	GQZ/ OEM / NEUTRAL
Model Number:	BNK 2010K-2.5 RRG0+499LC5KG High-Precision Ground Ball Screw
MOQ:	1pc
Price:	USD10/ PC
Delivery Time:	5-8 working days
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Japan

Certification:

ISO90001

Material:

Steel

Outerdiameter:

15mm - 62mm

Precision:

P0,P6,P5,P4

Inner Diameter:

16.5 Mm

Maximumspeed:

Up To 3000 RPM

Accuracy:

G3 , G2

Precision Rating:

P0,P6

Seal Type:

UU, OP

Delivery:

5 Days

Out Diameter:

15mm

Stock Qty:

3500.pcs

Slide Length:

100 Mm

Stock:

650.pcs

Seal:

U ; UU

Length:

24mm - 60mm

Packaging Details:

INDIVIDUAL STANDARD BOX

Supply Ability:

5000 pcs/ week

Highlight:

high-precision ground ball screw

linear ball bearing with warranty

BNK 2010K-2.5 RRG0 ball screw

Product Description

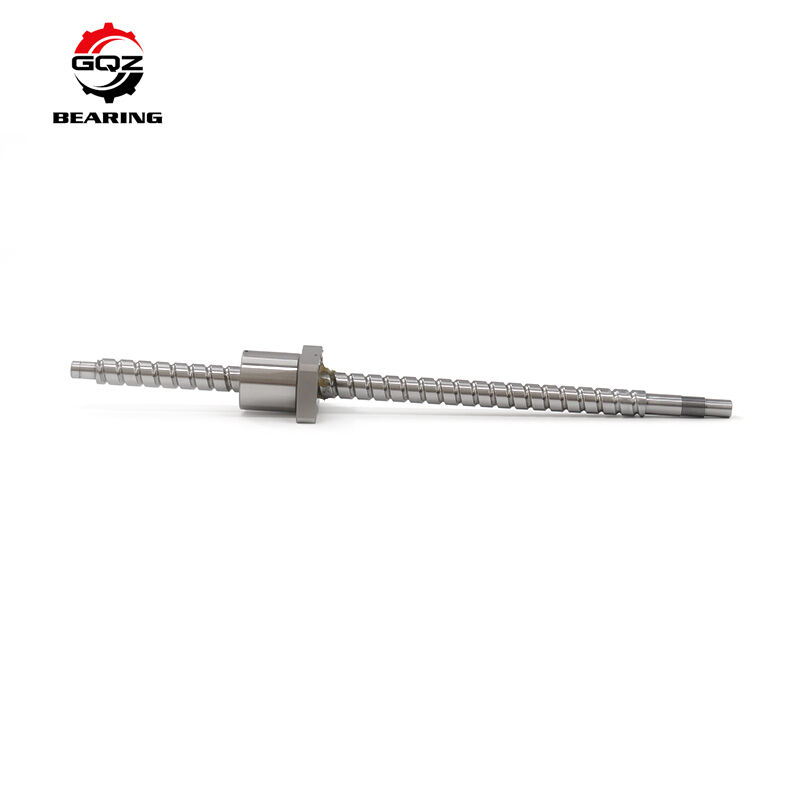

BNK 2010K-2.5 RRG0+499LC5KG High-Precision Ground Ball Screw

Key Features

Precision Grade C5: Ensures ±0.025mm travel accuracy per 300mm.
Preloaded Design (G0): Eliminates backlash for stable positioning.
High Rigidity: Rigidity value up to 110 N/μm with 2.5-turn * 1-row circuit design.
Efficient Transmission: Return pipe circulation system for smooth, high-speed operation (permissible rotational speed: 3330 min⁻¹).
Durable Construction: GCr15 steel material, basic dynamic load rating (Ca) 7kN, extended service life.

Specifications

Shaft Diameter: 20
Lead (Pitch): 10
Screw Shaft Length (L3): 499
Nut Outer Diameter: 46
Flange Diameter: 74
Nut Length: 54
Mounting PCD: 59
Thread Minor Diameter: 16.4
Axial Clearance (G0): ≤0.005

Typical Applications

Ideal for CNC machinery, factory automation systems, linear motion equipment, precision positioning worktables, and industrial equipment requiring high-accuracy transmission. Suitable for electronic devices, machine tools, and transport equipment.
