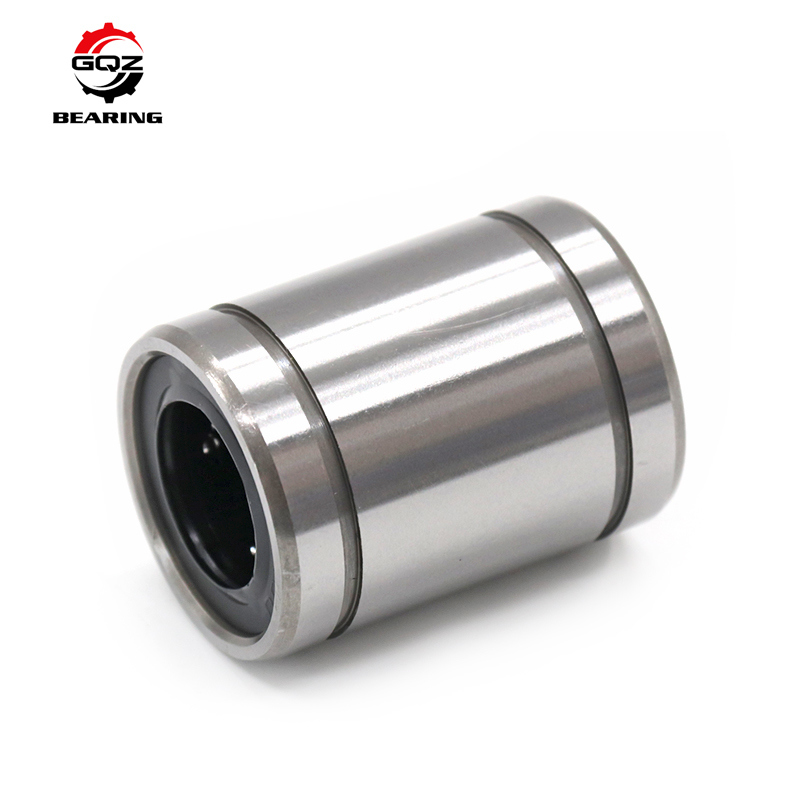

GQZ LM20 Linear Ball Bearing 20×32×42mm For Automation Linear Guide Transmission Mechanisms

LM20 is standard cylindrical linear ball bearing. It consists of outer shell, retainer and steel ball circulating assembly. Steel balls circulate along raceways to realize low-friction linear reciprocating motion. Suitable for matched hardened precision ground shaft. Widely applied in automated production equipment, packaging machinery, testing instruments, 3D printers and various linear motion assemblies.

Formal quotation will be sent within 24 hours upon your inquiry.

Model

LM20

Dimensions

d20 mm, D32 mm, L42 mm

Net weight

approx 0.065 kg

Structure

Standard cylindrical linear ball bearing

Material

Bearing steel outer shell, circulating steel balls

Sealing

Single-side seal / double-side seal optional

Alternative versions

LM20UU double sealed version available

Complete dimension drawings and load data available on request.

1. Circulating steel ball structure achieves low friction linear reciprocating movement
2. Compact cylindrical structure saves installation space
3. Standard universal dimension, highly interchangeable
4. Optional double rubber seals prevent dust and particle contamination
5. Requires hardened and precision ground shaft surface as rolling track
6. Customizable options: OEM laser marking, anti-rust treatment, special clearance grades

Ideal linear motion component for light and medium-duty automation machinery.

• Automated production line linear moving assemblies
• 3D printers and engraving equipment sliding parts
• Testing instruments and optical equipment
• Packaging machinery and textile automation equipment
• Small machine tool auxiliary linear guide structures
• Light-load linear reciprocating motion mechanisms

• 25 years professional bearing manufacturer
• Products exported to over 50 countries worldwide
• Strict inspection on raw material hardness, surface finish, load capacity and movement smoothness before delivery
• 24-hour professional technical support for shaft hardness and machining requirement guidance
• Sufficient bulk stock for automation machinery distributors
• We supply stable dimensional accuracy, reliable performance and long-term cooperative support.

• Bearing steel shell precision machining
• Steel ball sorting and assembly
• Clearance inspection and lubrication filling
• Full dimension tolerance and sliding smoothness testing

If you need LM20 linear ball bearings:

Send inquiry to obtain below supports:

• Quick formal quotation within 24 hours
• Professional shaft machining and hardness requirement advice
• Double sealed LM20UU alternative solutions
• Competitive factory direct price

Contact our sales team for full technical datasheets and formal offer.

Q1: What is LM20?

LM20 is standard cylindrical linear ball bearing.

Q2: Main dimensions of LM20?

20×32×42 mm linear motion ball bushing.

Q3: Important installation requirement?

Matching shaft surface needs hardening and precision grinding.
