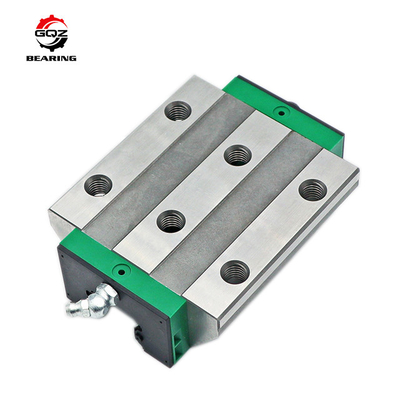

Wide Carriage KWVE15W-V1-G2 Linear Recirculating Ball Bearing KWVE15W-G3-V2 37x68x21mm
Stock QTY : 125.pcs (More on the way)
Size : 37x68x21mm Weight : 0.27KG
|
Bearing Model |
KWVE15W-V1-G2 ; KWVE15W-G3-V2 |
|
Structure |
Wide Carriage ; Linear Ball Bearing |
|
Size ( b x B x H ) mm |
37x68x21mm |
|
b (mm) |
37 |
|
B (mm) |
68 |
|
H (mm) |
21 |
|
Weight /Mass (KG) |
0.27KG |
|
Contact Person |
Hanna (Ms) |
|
SKYPE |
hannagreenpower |
| WhatsApp / Webchat | +86 137 7145 6936 |
|
|
hannabearing@hotmail.com |
We currently have 125.pcs of Wide Carriage KWVE15W-V1-G2 Linear Recirculating Ball Bearing In Stock.If you are in need of KWVE15W-V1-G2 KWVE15W-G3-V2 Bearing ,just feel free to contact us.We can assure you the best quality; the most competitive prices; the shortest delivery time and the highest quality service.
For more details of KWVE15W-V1-G2 KWVE15W-G3-V2 ,please feel free to contact me by WhatsApp or SKYPE or E-mail.
Besides,we also have Various Kinds of other Bearings & Guide Blocks In Stock,just click the " Contact Now "button for Details.
|
Carriage Model |
H (mm) |
B (mm) |
L (mm) |
| KWE15 | 24 | 47 | 54,5 |
| KWE20 | 30 | 63 | 70,4 |
| KWE25 | 36 | 70 | 80,5 |
| KWE30 | 42 | 90 | 92,9 |
| KWE35 | 48 | 100 | 106,1 |
| KWEM05 | 6 | 12 | 19 |
| KWEM07 | 8 | 17 | 23,5 |
| KWEM09 | 10 | 20 | 30 |
| KWEM12 | 13 | 27 | 34 |
| KWEM15 | 16 | 32 | 42 |
| KWE15-H | 28 | 34 | 54,5 |
| KWE20-H | 30 | 44 | 70,4 |
| KWE25-H | 40 | 48 | 80,5 |
| KWE30-H | 45 | 60 | 92,9 |
| KWE35-H | 55 | 70 | 106,1 |
| KWVE15-B | 24 | 47 | 61,2 |
| KWVE20-B | 30 | 63 | 71,4 |
| KWVE25-B | 36 | 70 | 83,3 |
| KWVE30-B | 42 | 90 | 99 |
| KWVE35-B | 48 | 100 | 112 |
| KWVE45-B | 60 | 120 | 140,6 |
| KWVE55-B | 70 | 140 | 173,6 |
| KWVE15-W | 21 | 68 | 55,6 |
| KWVE20-W | 27 | 80 | 69,8 |
| KWVE25-W | 35 | 120 | 81,7 |
| KWVE30-W | 42 | 142 | 97,6 |
| KWVE20-WL | 27 | 80 | 87,3 |
| KWVE25-WL | 35 | 120 | 107,5 |
| KWVE35-WL | 50 | 162 | 140,2 |
| KWVE20-B-N | 27 | 63 | 71,4 |
| KWVE25-B-N | 31 | 70 | 83,3 |
| KWVE30-B-N | 38 | 90 | 99 |
| KWVE35-B-N | 44 | 100 | 112 |
| KWVE45-B-N | 52 | 120 | 140,6 |
| KWVE15-B-EC | 24 | 52 | 44,5 |
| KWVE20-B-EC | 28 | 59 | 50,4 |
| KWVE25-B-EC | 33 | 73 | 58,2 |
| KWVE30-B-EC | 42 | 90 | 69 |
| KWVE35-B-EC | 48 | 100 | 76,2 |
| KWVE45-B-EC | 60 | 120 | 97,8 |
| Suffix | Description |
| - | Standard carriage |
| EC | Short carriage |
| ESC | Short, narrow carriage |
| H | High carriage |
| HL | High, long carriage |
| L | Long carriage |
| N | Low carriage |
| NL | Low, long carriage |
| S | Narrow carriage |
| SL | Narrow, long carriage |
| SN | Narrow, low carriage |
| SNL | Narrow, low, long carriage |
| W | Wide carriage |
| WL | Wide, long carriage |
| SB | High carriage with lateral threaded fixing holes |
