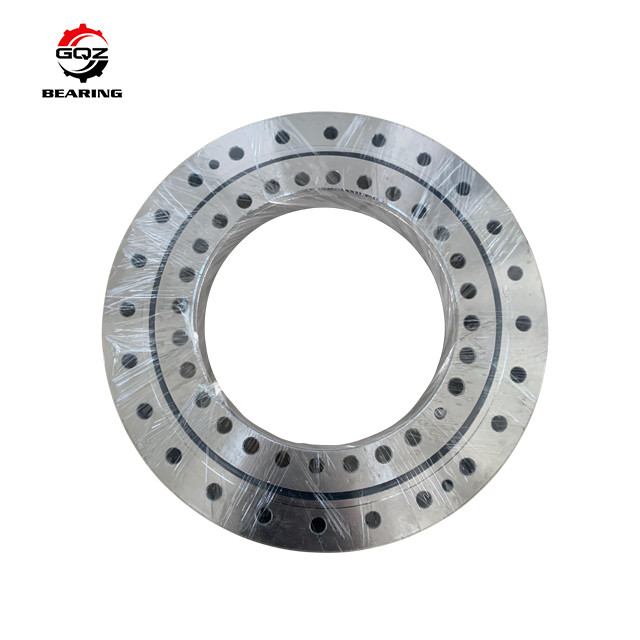

4300 Limiting Speed INA Rotary Table Slewing Bearing Zkldf120 60 Contact Angle

4300 Limiting Speed INA Rotary Table Slewing Bearing Zkldf120 60 Contact Angle
4300 Limiting Speed INA Rotary Table Slewing Bearing Zkldf120 60 Contact Angle 4300 Limiting Speed INA Rotary Table Slewing Bearing Zkldf120 60 Contact Angle

Large Image :  4300 Limiting Speed INA Rotary Table Slewing Bearing Zkldf120 60 Contact Angle Get Best Price

Product Details:
Place of Origin: Germany
Brand Name: INA
Certification: ISO9001:2008
Model Number: ZKLDF120
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union or PayPal
Supply Ability: 3,000pcs per month
Detailed Product Description
Inner Diameter: 120mm Product Name: ZKLDF120
Outer Diameter: 210mm Thickness: 40mm
Number Of Fixing Holes In Inner Ring: 22 Number Of Fixing Holes In Outer Ring: 21
Contact Angle: 60 Degree Numbers Of Rows: Double Row
High Light:

Ball Bearing Slewing Ring

,

Crossed Roller Bearing



4300 Limiting Speed INA Rotary Table Slewing Bearing Zkldf120 60 Contact Angle



1. Specification:

• ZKLDF rotary table bearings consist of a thrust/radial housing washer, a thrust/radial shaft washer, a thrust washer, two axial needle roller and cage assemblies and a group of radial cylindrical rollers. Housing washer and shaft washer have equally spaced fitting bolt.
• These bearings have high axial and radial load, and high tilting rigidity and high precision.
• Applications: mainly used on the machine tools, high precision machinery of the rotary table or sub-set, and chuck, measuring instruments and test equipment and rotary table.
• Outer Diameters: range from 100 mm to 460 mm.



2. Feature:

(1) 60° contact angle

(2) outer ring and inner ring suitable for flange mounting

(3) split inner ring with defined gap for matching of preload

(4) high limiting speeds

(5) oil or grease lubrication

(6) Double row

(7) 1 years quality guarantee

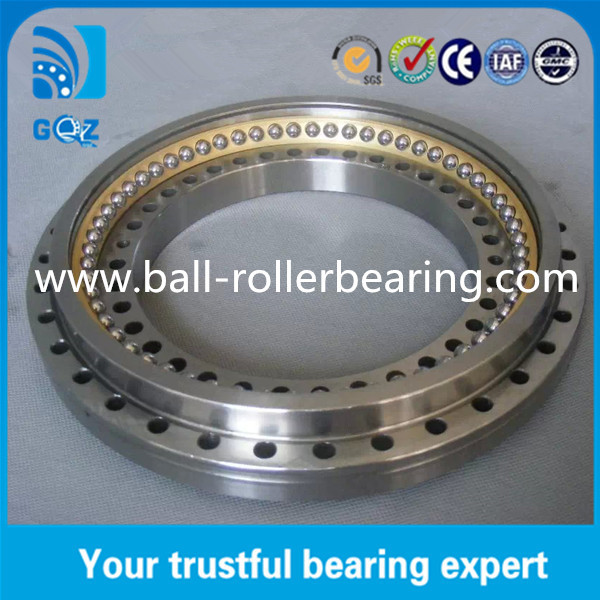

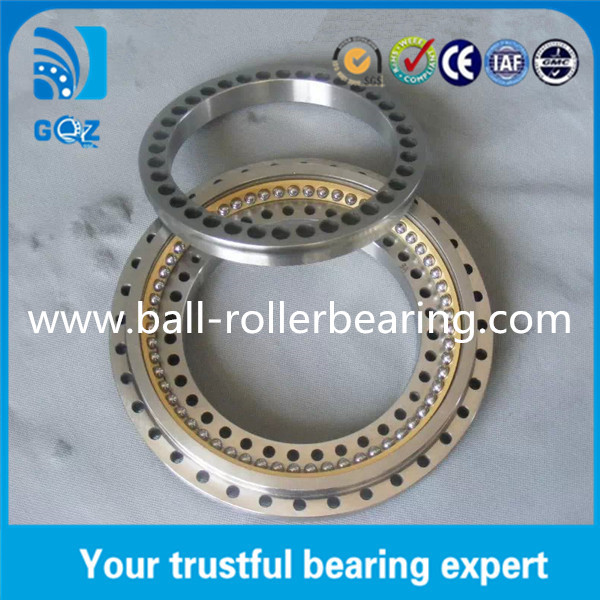

3. Bearing Picture:

4300 Limiting Speed INA Rotary Table Slewing Bearing Zkldf120 60 Contact Angle 0

4300 Limiting Speed INA Rotary Table Slewing Bearing Zkldf120 60 Contact Angle 1



4. We also supply following slewing ring bearing:

Bearing Type Boundary dimensions (mm) Gear Teeth
Nongeared External Gear Internal Gear D d H D1 d1 dn n n1 H1 h b m
010.20.250 011.20.250   330 170 60 298 202 16 18 2 50 10 40 4
010.20.280 011.20.280   360 200 60 328 232 16 18 2 50 10 40 4
010.25.315 011.25.315 013.25.315 408 222 70 372 258 18 20 2 60 10 50 5
010.25.355 011.25.355 013.25.355 448 262 70 412 298 18 20 2 60 10 50 5
010.25.400 011.25.400 013.25.400 493 307 70 457 343 18 24 2 60 10 50 6
010.25.450 011.25.450 013.25.450 543 357 70 507 393 18 24 2 60 10 50 6
010.30.500 011.30.500 013.30.500 602 398 80 566 434 18 20 4 70 10 60 5
012.30.500 014.30.500 602 398 80 566 434 18 20 4 70 10 60 6
010.30.560 011.30.560 013.30.560 662 458 80 626 494 18 20 4 70 10 60 5
012.30.560 014.30.560 662 458 80 626 494 18 20 4 70 10 60 6
010.30.630 011.30.630 013.30.630 732 528 80 696 564 18 24 4 70 10 60 6
012.30.630 014.30.630 732 528 80 696 564 18 24 4 70 10 60 8
010.30.710 011.30.710 013.30.710 812 608 80 776 644 18 24 4 70 10 60 6
012.30.710 014.30.710 812 608 80 776 64 18 24 4 70 10 60 8
010.40.800 011.40.800 013.40.800 922 678 100 878 722 22 30 6 90 10 80 8
012.40.800 014.40.800 922 678 100 878 722 22 30 6 90 10 80 10
010.40.900 011.40.900 013.40.900 1022 778 100 978 822 22 30 6 90 10 80 8
012.40.900 014.40.900 1022 778 100 978 822 22 30 6 90 10 80 10
010.40.1000 011.40.1000 013.40.1000 1122 878 100 1078 922 22 36 6 90 10 80 10
012.40.1000 014.40.1000 1122 878 100 1078 922 22 36 6 90 10 80 12
010.40.1120 011.40.1120 013.40.1120 1242 998 100 1198 1042 22 36 6 90 10 80 10
012.40.1120 014.40.1120 1242 998 100 1198 1042 22 36 6 90 10 80 12
010.45.1250 011.45.1250 013.45.1250 1390 1110 110 1337 1163 26 40 5 100 10 90 12
012.45.1250 014.45.1250 1390 1110 110 1337 1163 26 40 5 100 10 90 14
010.45.1400 011.45.1400 013.45.1400 1540 1260 110 1487 1313 26 40 5 100 10 90 12
012.45.1400 014.45.1400 1540 1260 110 1487 1313 26 40 5 100 10 90 14
010.45.1600 011.45.1600 013.45.1600 1740 1460 110 1687 1513 26 45 5 100 10 90 14
012.45.1600 014.45.1600 1740 1460 110 1687 1513 26 45 5 100 10 90 16
