9.525mm Shaft Diameter Rubber Seals on both sides Inch Size Linear Ball Bearing LMB6UU
1. Specification:
| Product name: | 9.525mm Shaft Diameter Inch Dimension Linear Bearing LMB6UU |
| Model NO.: | lmb6uu |
| Brand: | GQZ or OEM |
| Type: | Linear bearing lmb8uu |
| Material: | Gcr15,45#steel,chrome steel,stainless steel,aolly steel |
| Quality standard: | ISO9001:2008 |
| Dimension: | Showing below |
| Seal type: | U/UU/P/PP |
| Pre/after sale service: | Information consulting, product as your drawings , design as you required, quote price & delivery date, free sample, OEM & ODM, technical support etc. |
| Payment: | TT, L/C, Paypal, Western Union acceptable |
| Shipment: | As negotiated |
2. LMB,LMB...AJ and LMB...OP Difference
.
LMB is inch stand type
LMB...AJ means inch size adjustment type
LMB...OP means inch dimension open type
3. Application:
LMB6UU bearing is widely used in food machinary,packing machine,medicial machinary,printing machine,CNC machine tool,precision equipment and so on.
4. Feature:
(1) Rubber seals on both sides
(2) Inch dimension
(3) Stand type
(4) Chrome steel

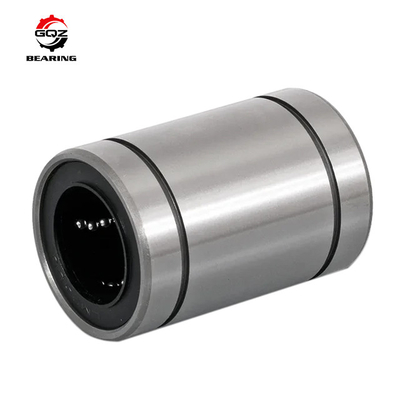

5. Bearing Picture:
6. We also supply following SBR bearings:
| Model | Dimension(mm) | Slide bush | |||||||||||
| h | E | W | L | F | H1 | θ | B | C | S | L1 | T | no. | |
| SBR10UU | 15 | 18 | 36 | 32 | 24 | 6 | 80° | 25 | 20 | M5 | 10 | 7 | LM10UUOP |
| SBR13UU | 17 | 20 | 40 | 39 | 27.6 | 8.5 | 80° | 28 | 28 | M5 | 10 | 8 | LM13UUOP |
| SBR16UU | 20 | 22.5 | 45 | 45 | 33 | 10 | 80° | 32 | 30 | M5 | 12 | 9 | LM16UUOP |
| SBR20UU | 23 | 24 | 48 | 50 | 39 | 10 | 60° | 35 | 35 | M6 | 12 | 11 | LM20UUOP |
| SBR25UU | 27 | 30 | 60 | 65 | 47 | 11.5 | 50° | 40 | 40 | M6 | 12 | 14 | LM25UUOP |
| SBR30UU | 33 | 35 | 70 | 70 | 56 | 14 | 50° | 50 | 50 | M8 | 18 | 15 | LM30UUOP |
| SBR35UU | 37 | 40 | 80 | 80 | 63 | 16 | 50° | 55 | 55 | M8 | 18 | 18 | LM35UUOP |
| SBR40UU | 42 | 45 | 90 | 90 | 72 | 19 | 50° | 65 | 65 | M10 | 20 | 20 | LM40UUOP |
| SBR50UU | 53 | 60 | 120 | 110 | 92 | 23 | 50° | 94 | 80 | M10 | 20 | 25 | LM50UUOP |
| SBR16LUU | 20 | 22.5 | 45 | 85 | 33 | 10 | 80° | 32 | 60 | M5 | 12 | 9 | LM16LUUOP |
| SBR20LUU | 23 | 24 | 48 | 96 | 39 | 10 | 60° | 35 | 70 | M6 | 12 | 11 | LM20LUUOP |
| SBR25LUU | 27 | 30 | 60 | 130 | 47 | 11.5 | 50° | 40 | 100 | M6 | 12 | 14 | LM25LUUOP |
| SBR30LUU | 33 | 35 | 70 | 140 | 56 | 14 | 50° | 50 | 110 | M8 | 18 | 15 | LM30LUUOP |
| SBR40LUU | 42 | 45 | 90 | 175 | 72 | 19 | 50° | 65 | 180 | M10 | 20 | 20 | LM40LUUOP |
If you have any inquiry,please contact us!
