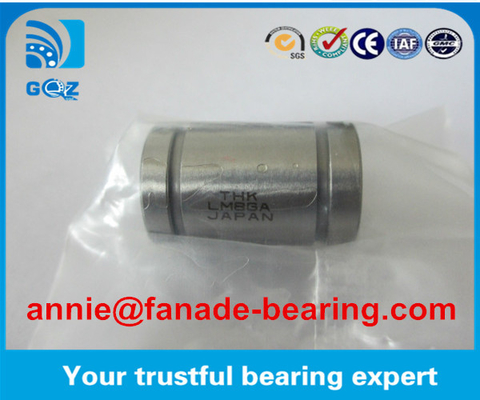

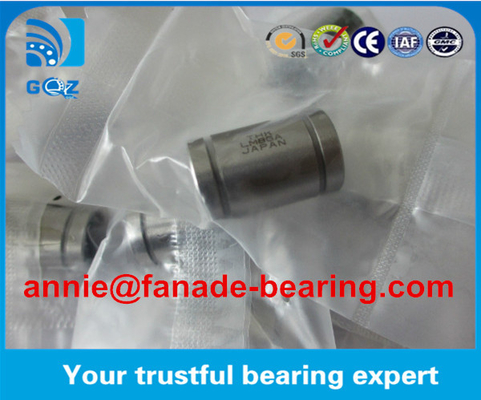

THK LM...GA Type Linear Bearings THK LM8GA Linear Bushing Bearing LM 8GA

THK LM...GA Type Linear Bearings THK LM8GA Linear Bushing Bearing LM 8GA



THK LM...GA Type Linear Bearings Specification:



Model Nominal shaft diameter (mm) Case material Retainer material Seals
LM 12   GA

LM : metric Japan series 3~60 No symbol : Standard steel No symbol : Resin No symbol: No seals
LME : metric Eupore series   M(G) : Stainless steel GA : Metal UU : Ends seals























THK LM GA Type Linear Bearing Catalog:

THK LM...GA Type Linear Bearings  THK LM8GA Linear Bushing Bearing LM 8GA 0



Model No. Ball rows Main dimensions Greasing
hole
d0
Eccentricity
(max)
Radial
clearance
tolerance
Basic load rating Mass

Inscribed

bore

diameter

Outer diameter Length L1 Tolerance L2 D0 Dynamic
rating
C
Static
rating
C0
dr Tolerance D Tolerance L Tolerance
mm mm mm mm mm mm mm mm mm mm mm µm µm N N g
LM6GA 3 6 0
-0.009
12 0
-0.011
19 0
-0.2
13.5 0
-0.2
1.1 11.5 12 -5 206 265 8
LM8SGA 3 8 15 17 11.5 1.1 14.3 12 -5 176 225 11
LM8GA 3 8 15 24 17.5 1.1 14.3 12 -5 265 402 16
LM10GA 4 10 19 0
-0.013
29 22 1.3 18 2 12 -5 373 549 30
LM12GA 4 12 21 30 23 1.3 20 2 12 -5 412 598 31.5
LM13GA 4 13 23 32 23 1.3 22 2 12 -7 510 775 43
LM16GA 4 16 28 37 26.5 1.6 27 2.3 12 -7 775 1180 69
LM20GA 5 20 0
-0.010
32 0
-0.016
42 30.5 1.6 30.5 2.3 15 -9 863 1370 87
LM25GA 5 25 40 59 0
-0.3
41 0
-0.3
1.85 38 3 15 -9 980 1570 220
LM30GA 6 30 45 64 44.5 1.85 43 3 15 -9 1570 2750 250
LM35GA 6 35 0
-0.012
52 0
-0.019
70 49.5 2.1 49 3 20 -13 1670 3140 390
LM38GA 6 38 57 76 58.5 2.1 54.5 3 20 -13 2160 4020 565
LM40GA 6 40 60 80 60.5 2.1 57 3 20 -13 2160 4020 585
LM50GA 6 50 80 0
-0.022
100 74 2.6 76.5 4 20 -13 3820 7940 1580
LM60GA 6 60 0
-0.015
90 110 85 3.15 86.5 4 25 -16 4710 10000 2000
LM80GA 6 80 120 140 0
-0.4
105.5 0
-0.4
4.15 116 4 25 -16 7350 16000 4520
LM100GA 6 100 0
-0.020
150 0
-0.025
175 125.5 4.15 145 4 30 -20 14100 34800 8600
LM120A 8 120 180 200 158.6 4.15 175 5 30 -25 16400 40000 15000



THK linear motion ball bearings LM8GA Detailed Information:





THK Brand model: LM 8GA
Types: LM8GA Linear Bushing
Brands: THK Bearings
Inner Diameter (d) 8mm
Outer Diameter (D) 15mm
Thickness (B) 24mm
Weight 0.016



THK LM...GA Type Linear Bearings  THK LM8GA Linear Bushing Bearing LM 8GA 1

THK LM...GA Type Linear Bearings  THK LM8GA Linear Bushing Bearing LM 8GA 2

THK LM...GA Type Linear Bearings  THK LM8GA Linear Bushing Bearing LM 8GA 3

Other linear bearing series:

LM...UU series:LM4UU LM5UU LM6UU LM8SUU LM10UU LM12UU

LM13UU LM16UU LM20UU LM25UU LM30UU LM35UU

LM40UU LM50UU LM60UU LM80UU LM100UU

LMB...UU series:LMB3UU LMB4UU LMB6UU LMB8UU LMB10UU

LMB12UU LMB16UU LMB20UU LMB24UU LMB32UU

LMB40UU LMB48UU LM64UU;

LME...UU series:LME4UU LME5UU LME8UU LME10UU LME12UU

LME16UU LME20UU LME25UU LME30UU LME40UU

LME50UU LME60UU LME80UU;

LM...LUU series:LM6LUU LM8LUU LM10LUU LM12LUU LM13LUU

LM16LUU LM20LUU LM25LUU LM30LUU LM35LUU

LM40LUU LM50LUU LM60LUU;

LME...LUU series: LME8LUU LME12UU LME16LUU LME20LUU LME25LUU

LME30LUU LME40LUU LME50LUU LME60LUU;

LMF...UU series : LMF6UU LMF8SUU LMF8UU LMF10UU LMF12UU

LMF13UU LMF16UU LMF20UU LMF25UU LMF30UU

LMF35UU LMF40UU LMF50UU LMF60UU;

LMK...UU series:LMK6UU LMK8SUU LMK10UU LMK12UU LMK13UU

LMK16UU LMK20UU LMK25UU LMK30UU LMK35UU

LMK40UU LMK50UU LMK60UU;

LMF...LUU series:LMF6LUU LMF8LUU LMF10LUU LMF12LUU LMF13LUU

LMF16LUU LMF20LUU LMF25LUU LMF30LUU

LMF35LUU LMF40LUU LMF50LUU LMF60LUU;

LMK...LUU series:LMK6LUU LMK8LUU LMK10LUU LMK12LUU LMK13LUU LMK16LUU LMK20LUU LMK25LUU LMK30LUU LMK35LUU LMK40LUU LMK50LUU LMK60LUU;

LMH...UU series: LMH6UU LMH8UU LMH10UU LMH12UU LMH13UU

LMH16UU LMH20UU LMH30UU LMH35UU;

LMH...LUU series: LMH6LUU LMH8LUU LMH10LUU LMH12LUU

LMH13LUU LMH16LUU LMH20LUU LMH25LUU

LMH30LUU;

Our linear bearings have the following features:

1.our linear ball bearing has the outer race that is processed by cold press forming to shape the ball tracks.

This gives features to its appearance,too.



2.The cold press forming has enabled lightweight structure of the bearing.This eventually provides compact

and lightweight machine design.



3.The balls circulate endlessly.This structure provides unlimited stroke with minimal frictional resistance that ensures long service life and energy saving.



4.The frictional resistance remains almost unchanged,even when the load increases.Therefore,heavy load is acceptable depending on application conditions.



5.Because of the cold press forming for the outer race,an early failure caused by moment load and excessive

pre-load can be prevented.



6.our linear ball bearing is heat treated in such a method as to suit to the outer race that is cold press formed.



7.our linear ball bearing with steel retainer is resistant against high temprature.



8.our linear ball bearing is interchangeable.The eccentricity is small and centering is easy.It can operate with

simple lubrication or without any lubrication,depending on applications.Thus maintenance is almost free.
