Angular Contact Ball Bearing
Created with Pixso. 7212B Single Row Angular Contact Ball Bearing 60x110x22mm for Machine Tool Gearbox

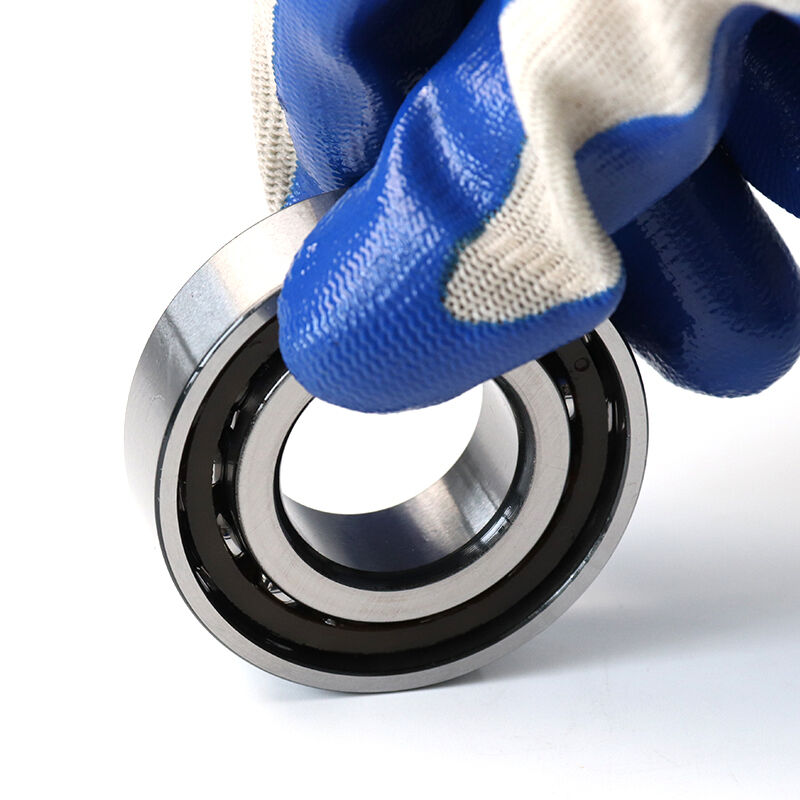

7212B Single Row Angular Contact Ball Bearing 60x110x22mm for Machine Tool Gearbox

Brand Name: GQZ /OEM
Model Number: 7212B
MOQ: 1 PCS
Price: USD 0.6-5
Delivery Time: 3-5 working days
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
ISO9001:2015
Bearing Model:
7212B
Seal Type:
OPEN
Material:
GCr15 Chrome Bearing Steel
Outer Diameter(D):
110mm
Width(B):
22mm
Number Of Row:
Single Row
Inner Diameter(d):
60mm
Packaging Details:
in individual packing box
Supply Ability:
100000 Sets per month
Highlight:

7212B angular contact ball bearing

,

60x110x22mm machine tool bearing

,

angular contact bearing for gearbox

Product Description
7212B Single Row Angular Contact Ball Bearing 60x110x22mm for Machine Tool Gearbox

7212B Single Row Angular Contact Ball Bearing 60x110x22mm for Machine Tool Gearbox

Product Overview
  • 7212B is single row open‑type angular contact ball bearing with 40‑degree contact angle. It supports combined radial and one‑direction axial loads, suitable for medium‑high speed industrial operating conditions, manufactured from GCr15 bearing steel.

*Need a quick quote? Just send us your bearing model & quantity — we’ll get back to you fast.

Key Specifiions
Item Specification
Bearing Model 7212B
Bearing Type Angular Contact Ball Bearing
Bore(d) 60 mm
Outer Diameter(D) 110 mm
Width(B) 22 mm
Contact Angle 40°
Basic Dynamic Load(Cr) 68200 N
Basic Static Load(C0r) 51800 N
Limiting Speed Grease 5000 r/min
Limiting Speed Oil 6300 r/min
Weight 0.81 kg
Seal Type Open Unsealed
Cage Material Steel Cage
Material GCr15 Bearing Steel
Tolerance Class P0
Min Shaft Fillet(r) 1.5 mm
Main Features
  • 40‑degree large contact angle delivers high one‑direction axial load capacity
  • Handles combined radial and axial composite loads
  • Open design enables flexible grease or oil lubrication
  • Steel cage maintains stable rotation at medium‑high speed
  • GCr15 steel offers reliable hardness and wear resistance
  • Standard P0 precision for general industrial machinery
Typical Appliions
  • Gearboxes
  • Machine tool spindles
  • Electric motors
  • Pumps and compressors
  • General engineering machinery

*Ready stock. Short lead time. Fast delivery.Send us your bearing list and let’s get started!

Why Choose GQZ Bearing
  • 30 years professional bearing industry experience
  • ISO certified strict quality inspection
  • Flexible OEM & private label customization
  • 3-5 days fast delivery for stocked bearings
  • Full bearing series, universal interchangeable size
  • Factory direct price & reliable after-sales service

7212B Single Row Angular Contact Ball Bearing 60x110x22mm for Machine Tool Gearbox

7212B Single Row Angular Contact Ball Bearing 60x110x22mm for Machine Tool Gearbox

7212B Single Row Angular Contact Ball Bearing 60x110x22mm for Machine Tool Gearbox

7212B Single Row Angular Contact Ball Bearing 60x110x22mm for Machine Tool Gearbox

7212B Single Row Angular Contact Ball Bearing 60x110x22mm for Machine Tool Gearbox

7212B Single Row Angular Contact Ball Bearing 60x110x22mm for Machine Tool Gearbox

FAQ

Q1: What does B suffix stand for on 7212B?
A1: B represents 40° contact angle for enhanced axial load performance.

Q2: Can single 7212B take bidirectional axial load?
A2: No, use paired arrangement for two‑direction axial force.

Q3: Is 7212B pre‑greased?
A3: Open type bearing, on‑site lubrication is required.

Q4: What working speed is suitable for 7212B?
A4: Works well for medium‑high speed with proper lubrication.
