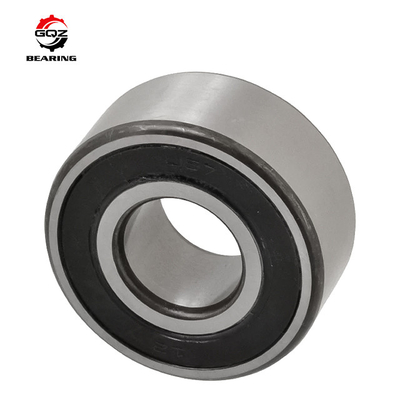

Large Steel Mills Precision Angular Contact Bearings OEM 3206-2RS1NR
1. Angular Contact Ball Bearing Specification:
Bearing model | 3206-2RS1NR |
Material | Gcr15 |
Type | Angular Contact Ball Bearing |
Size (mm) | 30*62*23.8 |
Basic dynamic load rating | 30 KN |
Basic static load rating | 20.4 KN |
Fatigue load limit | 0.865 KN |
Mass (KG ) | 0.29 KG |
2 . Product Description
Angular contact ball bearing can bear radial load and axial load at the same time. The contact angle is higher, the axial load capacity is higher, the high precision and high speed bearing usually take 15 degree contact angle.
Single row angular contact ball bearings only bear a direction of the axial load in the bearing radial load will cause additional axial force. And only limit shaft or shell in a direction of the axial displacement. Angular contact ball bearing contact angle is 40 degrees, so can bear great axial load.
3 . Application
used in many areas of large steel mills, papermaking and speed reducer,aviation,aerospace,marine,railway,metallurgy,steel, mining,electricity,machinery manufacturing,printing, electronics,textiles,food,chemical,automoti,spindle, internal combustion engines, generators, gas turbines, reducer11
4 . Our products
Bearing No. | d | D | B |
7000C | 10 | 26 | 8 |
7000AC | 10 | 26 | 8 |
7001C | 12 | 28 | 8 |
7001AC | 12 | 28 | 8 |
7002C | 15 | 32 | 9 |
7002AC | 15 | 32 | 9 |
7003C | 17 | 35 | 10 |
7003AC | 17 | 35 | 10 |
7004C | 20 | 42 | 12 |
7004AC | 20 | 42 | 12 |
7005C | 25 | 47 | 12 |
7005AC | 25 | 47 | 12 |
7006C | 30 | 55 | 13 |
7006AC | 30 | 55 | 13 |
7007C | 35 | 62 | 14 |
7007AC | 35 | 62 | 14 |
7008C | 40 | 68 | 15 |
7008AC | 40 | 68 | 15 |
7009C | 45 | 75 | 16 |
7009AC | 45 | 75 | 16 |
7010C | 50 | 80 | 16 |
7010AC | 50 | 80 | 16 |
7011C | 55 | 90 | 18 |
7011AC | 55 | 90 | 18 |
7012C | 60 | 95 | 18 |
7012AC | 60 | 95 | 18 |
7013C | 65 | 100 | 18 |
7013AC | 65 | 100 | 18 |
7014C | 70 | 110 | 20 |
7014AC | 70 | 110 | 20 |
5 . Competitive Advantage:
· More than 10 years of production experience
· China Leading bearing Technology
· Super High Quality
· Competitive Price
· Big Production Ability
· Fast Delivery
· Excellent Sale and After-sale Service
· OEM Available
