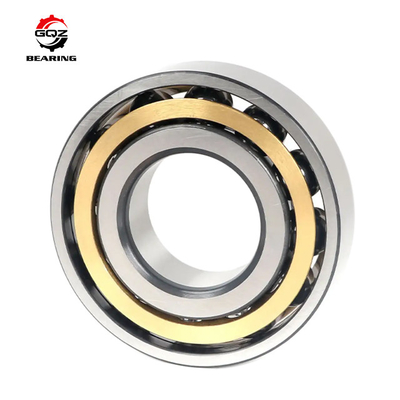

7332BCBM Angular Contact Ball Bearing P0 P6 P5 P4 P2 high speed bearings

I'm Online Chat Now
Certification
China Wuxi Guangqiang Bearing Trade Co.,Ltd certification
Received bearings. Very impressed with the quality. Warm and thoughtful service,fast shipment.I will keep doing business with your trustworthy company

—— John Grafton

More than 3 years business cooperation with your company has brought us a lots of benefits.We attain many local customers gratitude and supports.Thank

—— Mohammad EL ASSWAD

We have tested the bearing 23082 and I am so satisfied with the bearing quality.Good package and best price have given a big favor in our business.

—— Minwoo, Kwon

7332BCBM Angular Contact Ball Bearing P0 P6 P5 P4 P2 high speed bearings

7332BCBM Angular Contact Ball Bearing P0 P6 P5 P4 P2 high speed bearings
7332BCBM Angular Contact Ball Bearing P0 P6 P5 P4 P2 high speed bearings 7332BCBM Angular Contact Ball Bearing P0 P6 P5 P4 P2 high speed bearings

Large Image :  7332BCBM Angular Contact Ball Bearing P0 P6 P5 P4 P2 high speed bearings Get Best Price

Product Details:
Brand Name: SKF / GQZ / AAA
Certification: ISO 9001
Model Number: 7332BCBM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1 USD
Packaging Details: single packing + standard export packing
Payment Terms: T/T, Western Union
Supply Ability: 1000 pcs / month
Detailed Product Description
Bearing Type: Angular Contact Bearing Cage: Brass / Steel
Rolling Body: Ball Bearing Number Of Row: Double
Load Direction: Radial Bearing Material: GCr15
High Light:

Angular Contact Bearing

,

Steel Cage Bearing



7332BCBM Angular Contact Ball Bearing P0 P6 P5 P4 P2 high speed bearings



1. Angular  Contact  Bearing  Specification :



Bearing type  Angular Contact Bearing
Bearing Model 7332BCBM
Brand NSK  / GQZ / AAA
Size (mm) 110*240*50
Weight (kg) 10.1  KG
Stock  Enough
Lubrication Oil
Application Automobiles, Rolling Mill, Mining, Metallurgy



2.Types of bearings:


Double row angular contact ball bearings can withstand the big radial direction load primarily radial and axial load and torque load, limit shaft of both axial displacement.Is mainly used for two-way axial displacement limit shaft and the shell parts of double row angular contact ball bearing can be skewed between inner and outer ring is limited, allowing Angle depends on the bearing internal clearance, bearing on the size, in the role of interior design, and the bearing force and moment, and the maximum allowable slope Angle should guarantee won't produce high additional stress in the bearing.If the Angle between bearing inner and outer ring, will affect the service life of bearing, falling bearing running accuracy at the same time, the running noise increases.Double row angular contact ball bearing usually use nylon cage entity or brass cage.Double row angular contact ball bearing should be paid attention to when installation, although the bearing can be subject to bi-directional load, but if one side has put the ball gap, should be paid attention to, don't let the noise of main axial load through a gap on one side of the river bank.In bearing should be paid attention to when using makes without ball gap on one side of the race carry the main load.





3 . Structure types :



1) Single row angular contact ball bearing

2) Double row angular contact ball bearing

3) Four-point angular contact ball bearing





4 . Competitive Advantage:


· Competitive Price
· Big Production Ability
· Fast Delivery
· Excellent Sale and After-sale Service
· OEM Available



5. APPLICATION:

Papermaking machinery, reducer, railway vehicle axle, gear box bearing, rolling mill rolling mill rolls, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industrial reducer, Papermaking machinery, deceleration devices, railway vehicle axles, gear box bearing rolling mill, rolling mill rolls, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industrial gear, vertical seat belt aligning bearings


6 . We have enough stock , following is our products in stock .


Principal dimensions Basic load ratings Reference speed Limiting speed Model no.
dynamic static
d D B C C0
mm kN   r/min
65 140 33 116 86,5 6300 6300 7313 BECBP *
65 140 33 116 86,5 6300 6300 7313 BEGAP *
65 140 33 116 86,5 6300 6300 7313 BEGBP *
65 140 33 116 86,5 6300 6300 7313 BECBPH *
65 140 33 116 86,5 6300 6300 7313 BECBM *
65 140 33 116 86,5 6300 6300 7313 BECCM *
65 140 33 116 86,5 6300 6300 7313 BEGAM *
65 140 33 116 86,5 6300 6300 7313 BEGBM *
65 160 37 130 96,5 5000 5300 7413 BCBM
65 160 37 130 96,5 5000 5300 7413 BGAM
65 160 37 130 96,5 5000 5300 7413 BGBM
70 125 24 67,6 56 6000 6000 7214 BEP
70 125 24 71,5 60 6000 6000 7214 BECBJ
70 125 24 71,5 60 6000 6000 7214 BECBY
70 125 24 72 60 6300 6300 7214 BECBP *
70 125 24 75 64 6300 6300 7214 BEGAP *
70 125 24 72 60 6300 6300 7214 BECBM *
70 125 24 72 60 6300 6300 7214 BEGAM *
70 150 35 119 90 5300 5300 7314 BEP
70 150 35 119 90 5300 5300 7314 BECBJ
70 150 35 119 90 5300 5300 7314 BEGAJ
70 150 35 119 90 5300 5300 7314 BECBY
70 150 35 119 90 5300 5300 7314 BEGAY
70 150 35 119 90 5300 5300 7314 BEGBY
70 150 35 119 90 5300 5300 7314 BEGAF
70 150 35 127 98 5600 5600 7314 BECBP *
70 150 35 127 98 5600 5600 7314 BECAP *
70 150 35 127 98 5600 5600 7314 BEGAP *
70 150 35 127 98 5600 5600 7314 BECBPH *
70 150 35 127 98 5600 5600 7314 BECBM *
70 150 35 127 98 5600 5600 7314 BEGAM *
70 180 42 159 127 4500 4800 7414 BCBM
70 180 42 159 127 4500 4800 7414 BGAM
75 130 25 70,2 60 5600 5600 7215 BEP
75 130 25 73,5 65,5 6300 6300 7215 BECBP
75 130 25 73,5 65,5 6300 6300 7215 BECBM
75 130 25 72,8 64 5600 5600 7215 BECBJ
75 130 25 72,8 64 5600 5600 7215 BECBY
75 130 25 72,8 64 5600 5600 7215 BEGAY
75 160 37 125 98 5000 5000 7315 BEP
75 160 37 133 106 5000 5000 7315 BECBJ
75 160 37 133 106 5000 5000 7315 BECBY
75 160 37 132 104 5300 5300 7315 BECBP *
75 160 37 132 104 5300 5300 7315 BEGAP *
75 160 37 132 104 5300 5300 7315 BECBPH *
75 160 37 132 104 5300 5300 7315 BECBM *
75 160 37 132 104 5300 5300 7315 BEGAM *
75 190 45 168 140 4300 4500 7415 BM
75 190 45 168 140 4300 4500 7415 BCBM
75 190 45 168 140 4300 4500 7415 BGAM
75 190 45 168 140 4300 4500 7415 BGBM
80 140 26 80,6 69,5 5300 5300 7216 BEP
80 140 26 83,2 73,5 5300 5300 7216 BECBJ
80 140 26 83,2 73,5 5300 5300 7216 BECBY
80 140 26 80,6 69,5 5300 5300 7216 BEGAF
80 140 26 85 75 5600 5600 7216 BECBP *



7332BCBM Angular Contact Ball Bearing P0 P6 P5 P4 P2 high speed bearings 0

7332BCBM Angular Contact Ball Bearing P0 P6 P5 P4 P2 high speed bearings 1
